| System P/N | FWA-6173-00A1R | |
| Form Factor | 2U Rack Mount | |
|
Processor System |
Processor | Intel® Xeon® 6 Processors |
| Core Count | Up to 86 P-cores and 144 E-cores | |
| Base Frequency | Up to 3.9 GHz | |
| Chipset | NA | |
| BIOS | AMI UEFI | |
| Virtualization | Intel® VT-Redirect Protection, Intel® S-IOV | |
|
Memory |
Technology | DDR5, up to 6400 MT/s and 8000 MT/s (MCR DIMM from GNR-SP) |
| Max. Capacity | 1024 GB (64 GB per slot) | |
| Socket | 16 x 288-pin DIMM | |
| ECC Support | RDIMM | |
| Networking | Controller | 2 x Intel i210 |
| 1GbE | 2 x 1GbE RJ45 | |
| Expansion Slot | PCIe x16 | 1 x PCIe Gen5 x16 double-deck 10.5” or 2 x PCIe Gen5/Gen4 x16 FH/HL |
| NMC | 8 x PCIe Gen5 x8 | |
| IPMI | IPMI 2.0 and Redfish compliant | |
|
Storage |
2.5" Bay | 2 x External 2.5" HDD/SSD |
| M.2 2 x M.2 2280 M-Key for SATA SSD or PCIe Gen3 x4 NVMe
1 x M.2 2280 M-Key SATA Only |
||
|
I/O |
Console | 1 x RJ45 type console |
| USB | 2 x USB 3.0 | |
| LED Indicator | 1 x Power LED, 1 x Alert LED, 1 x Locate LED, 1 x Software-defined LED | |
| Display | 1 x VGA port | |
| Button | 1 x Power button, 1 x Software-defined button | |
| Others | 1x dedicated 1GbE LAN for IPMI | |
| TPM | TPM 2.0 | |
| LCD Module | 16 x 2 graphic display, 5 buttons | |
|
Power Supply |
Power Type | AC Redundant CRPS (Option: DC Redundant CRPS) |
| Watts | 1600 W | |
| Input | AC: 100-127V/200-240V, 11A/9.6A, 50/60Hz (Option: DC -48V) | |
| Connector | AC 3pin plug | |
|
Environment |
Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature | -40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% Non-Condensing Humidity | |
| Vibration Resistance (Operation) | 5-500 Hz, 0.3 Grms, 3 axes, 1 hr/per axis | |
| Shock Protection (Operation) | 10 G, 11 ms | |

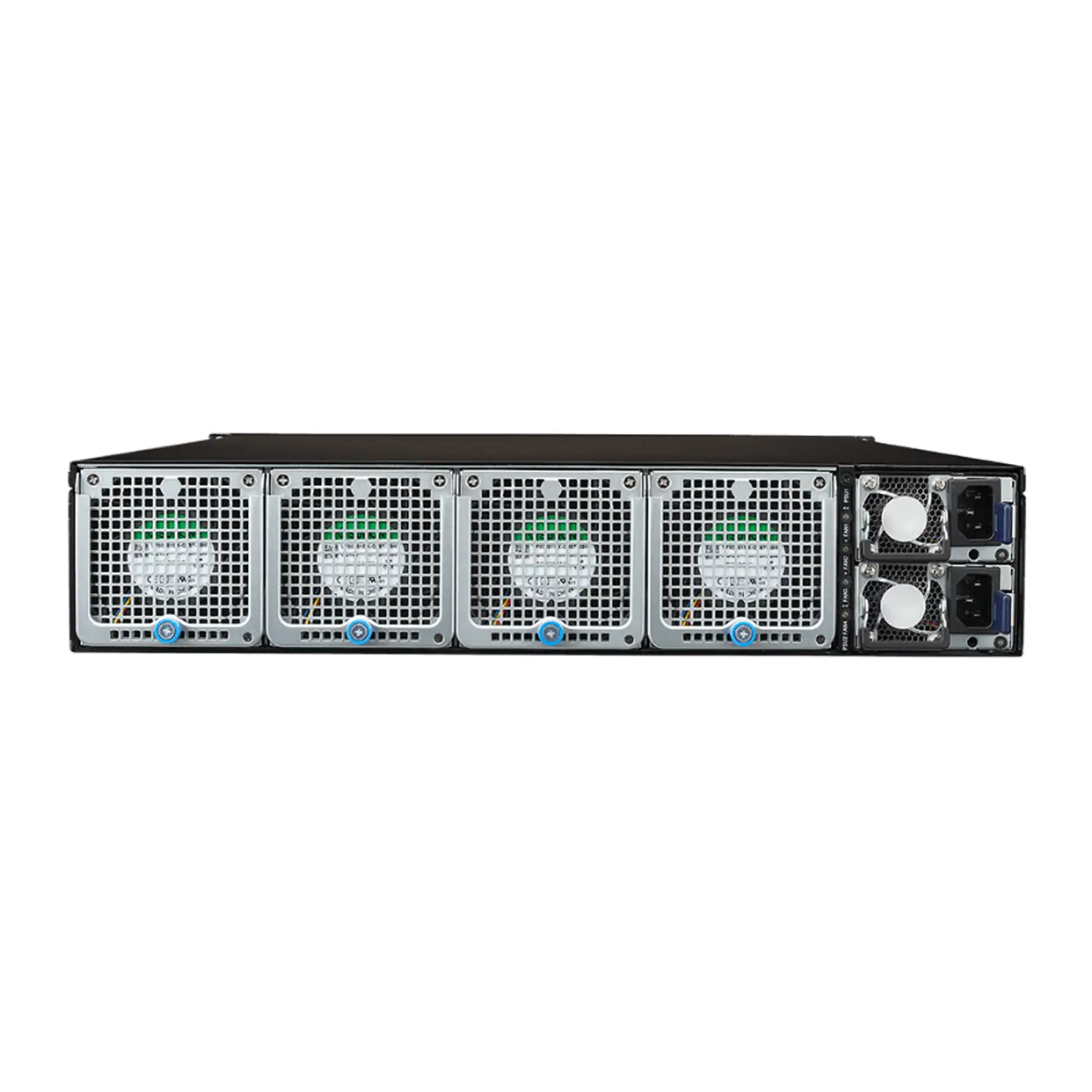

| Cooling | 4 x Hot swap 8038 mm fan | |
|
Mechanical |
Metallic Material | SGCC |
| Mounting | Rackmount | |
| Dimensions (W x H x D) | 438 x 88 x 600 mm (17.2" x 3.4" x 23.6") | |
| Weight (G.W.) | 23.5 kg (51.8 lbs) | |
| OS Support | Linux (CentOS, Red Hat, Ubuntu, Fedora) | |
|
Advantech S/W Packages |
1. ALBPCU
2. APOECU 3. ipmitool 4. Server iManager (Linux base) - Health Guard - Diagnostic Framework - Network device identifier (NDI) 5. Quick Start Linux Image |
|
| Certification | EMC/Safety | CE, FCC, CB, UL, CCC |
| Part Number | Processor | DDR5 | PCH | QAT | NMC
Slot |
PCIe
Slot |
Storage Bay | USB3.0 | IPMI
Port |
Console Port | LAN Port | ystem an | PSU | |||
| 1G RJ45 | 1G SFP | 10G SFP+ | ||||||||||||||
| FWA-6173-00A1R | Dual socket for Intel® Xeon® 6 Processors | 16 | NA | By CPU SKU | 8 | 2 | 2 | 2 | 1 | 1 | 2 | 0 | 0 4 | 2 | ||
| Part Number | Description | Quantity |
| 1700020691-01 | Console Cable D-SUB 9P(F)/RJ45-8P8C 220cm | 1 |
| 1651003850-01 | LGA 4710P E2B Carrier for HCC/LCC CPU | 2 |
| 1651003851-01 | LGA 4710P E2A Carrier for XCC CPU | 2 |
| 1970005574T001 | CPU Heat-sink, up to 350W | 2 |
| 1960083584N021
1960083854T000 |
Mounting ear and handle | 2 |
| Part Number | Description |
| 1702002600 | Power cord 3P 180 cm, USA |
| 1702002605 | Power cord 3P 180 cm, Europe |
| 1702031801 | Power cord 3P 180 cm, UK |
| 1700000237 | Power cord 3P 180 cm, JP |
| 1700009652 | Power cord 3P 180 cm, China |
| 1930008928 | Screws for slide rail installation (Order 10 pieces per system) |
| 968DE00026 | Slide rail for post to post dimension 558.9 - 850.9mm |
| 1700027334-01 | USB for RJ45 console cable, 190cm |
