NMC-0120

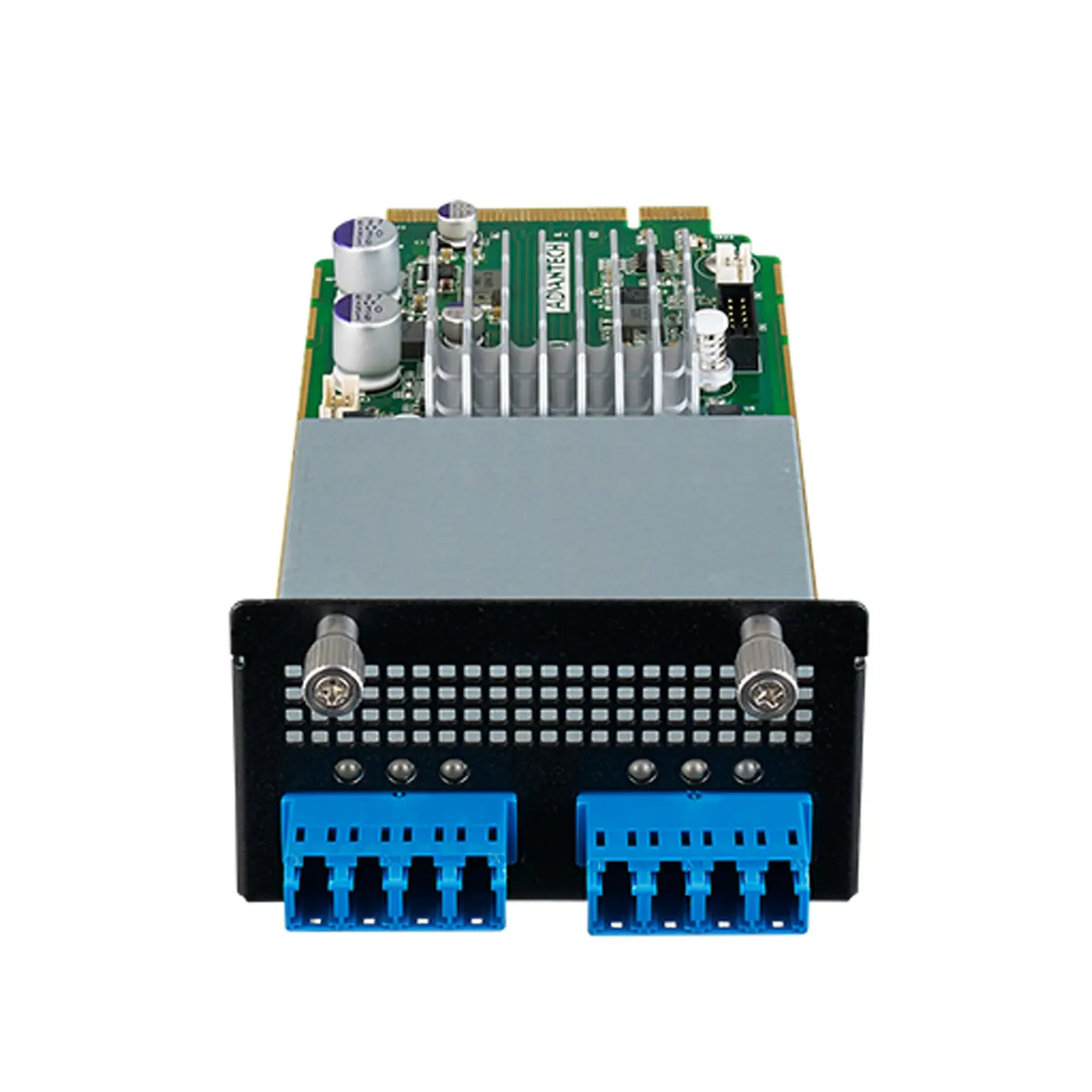

研华NMC-0120 是一款4端口1GbE光纤旁路网络管理卡，功能包括高级LAN旁路模式、正常模式和断开连接模式，支持1x英特尔®I350_AM4，符合RoHS标准

1x Intel® I350_AM4
4 x LC(SX or LX) fiber connectors with fiber bypass module
1 x PCIe 2.0 x4, Gen2
Fiber bypass functionality includes advanced LAN bypass mode, normal mode, and disconnect mode
RoHS compliant

如需帮助,请联系我们

免费电话：400- 880- 8951

邮箱：advavee@outlook.com
咨询客服：一站式采购

批量采购定制咨询，请发送您的需求，我们将立即回复。

Specifications

Controller	1x Intel® I350-AM4
Interface	1x PCIe x4, Gen2
Speed	1GbE
Port	4x Fiber Connector
LAN LED definition	Link / Act LED (Right/Left): Link: Green on Active: Green Blinking Bypass LED: (Middle): LAN Bypass: Amber on Disconnect: Amber blinking Connect: N/A
Advanced Software Features	Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation
OS Support	Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
Operating Conditions	Operation: 0 ~ 40 °C Storage: -20 ~ 67 °C
Power Voltage & consumption	+12V ± 10% 10W
Dimension (W x H x D)	74.6 x 42.4 x 174.7 mm
Compliance	CE/FCC

Ordering Information

Part Number	Description
NMC-0120-000110E	4 ports 1GbE SX Latch Type Fiber Bypass Module
NMC-0120-000111E	4 ports 1GbE LX Latch Type Fiber Bypass Module
NMC-0120-04FBSSA2	4 ports 1GbE SX Thumbscrew Type Fiber Bypass Module
NMC-0120-04FBLSA2	4 ports 1GbE LX Thumbscrew Type Fiber Bypass Module
