HPC-6240+ASMB-622

研华HPC-6240+ASMB-622 是一款2U 20寸短深度边缘服务器，支持双路l Intel® 第3代Xeon® Scalable处理器, 带8个扩展槽，支持内存DDR4 3200MHz RDIMM高达1TB，Intel Optane持久内存，1200W 1+0白金非冗余电源

双Intel®第三代Xeon®可扩展处理器
DDR4 3200MHz RDIMM高达1TB，支持Intel Optane持久内存
四个PCIe x16插槽支持FH/10.5“L卡*
四个PCIeX8插槽支持HH/HL卡
四个2.5英寸热插拔SASII/SATAIII驱动器托架（两个可选NVMe）
一个车载M.2 2280 B+M钥匙
4 x GbE、2 x USB3.2、1 x串行端口、1 x VGA、1 x IPMI
1200W 1+0白金非冗余电源

产品型录PDF

如需帮助,请联系我们

免费电话：400-880-8951

公司邮箱：advavee@outlook.com
咨询客服：一站式采购

批量采购定制咨询，请发送您的需求，我们将立即回复。

产品资讯

Specifications

Processor System	Socket	Intel LGA 4189
	CPU Type	3rd Gen Intel Xeon Scalable processors (TDP up to 165W)
	Chipset	Intel C621A chipset
Memory	Total slots	16 (1 DIMM per channel)
	Capacity	Maximum 1TB ECC RDIMM
	Memory type	DDR4 2666/2933/3200MHz RDIMM
Graphics	Controller	Aspeed AST2500
Graphics	VRAM	DDR4 4Gb
Expansion Slot	RISER CAGE-1	SLOT1: FH/10.5"L PCIe X16 slot (Gen4 X16 link) SLOT2: FH/10.5"L PCIe X16 slot (Gen4 X16 link) SLOT3: FH/10.5"L PCIe X16 slot (Gen4 X16 link) SLOT4: FH/10.5"L PCIe X16 slot (Gen4 X16 link)
	RISER CAGE-2	SLOT5: FH/HL PCIe X8 slot (Gen4 X8 link) SLOT6: FH/HL PCIe X8 slot (Gen3 X4 link)
	RISER CAGE-3	SLOT7: FH/HL PCIe X8 slot (Gen4 X8 link) SLOT8: FH/HL PCIe X8 slot (Gen4 X8 link)
Storage	2.5" (Hot-swap)	4
	NVMe	2 support VROC (Gen4 X8 link, in option)
	Ultra Slim ODD	1
	M.2 (2280)	1 (SATA/PCIe Gen3 X4 link)
Ethernet	Interface	4 x 10/100/1000 Mbps Gigabit Ethernet
Ethernet	Controller	1 x Intel I350
Front I/O Interface	USB	2 x USB3.2

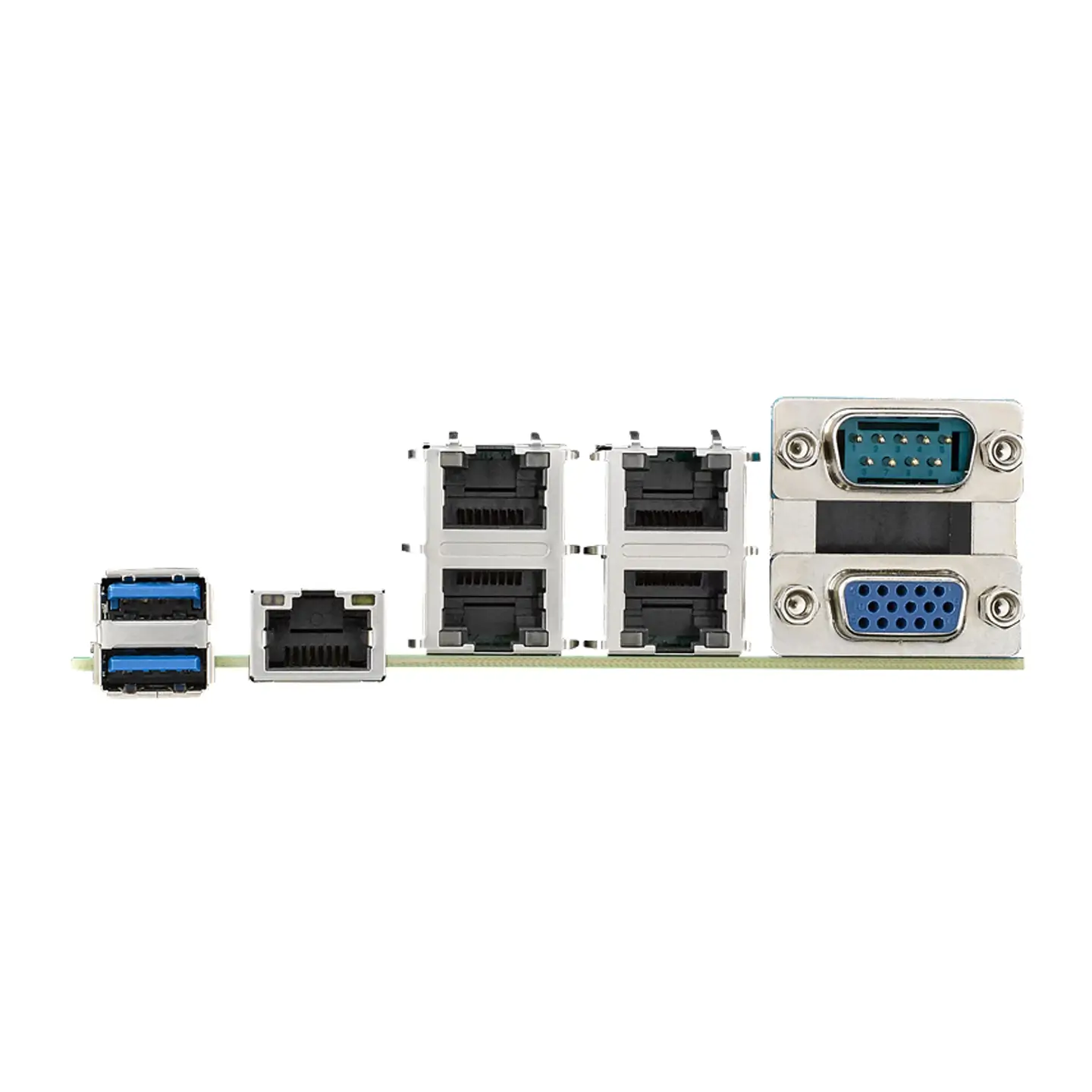

Rear I/O Interface	USB	2 x USB3.2
	Serial port	1
	Display	1 x VGA
	RJ-45	5 (4 x GbE + 1 dedicated NIC for IPMI)
Internal connector	Type-A USB	2
	Serial port header	1
	SlimSAS	1
	LPC	1
Watchdog Timer	Output	System reset
Watchdog Timer	Interval	Programmable, 1~255 sec/min
Power Supply	Output Range	1200W Platinum 1+0 non-redundancy Power Supply
Power Supply	Input Range	AC 100 ~ 240 V
Cooling	System Fan	Three 80x38 high speed fan for CPU One 60x38 high speed fan for Cards
Cooling	Air Filter	-
Miscellaneous	LED Indicators	Power Status, LAN1-LAN4 Status, System information LED
Miscellaneous	Remote Management	Advantech Remote Monitoring Utility
Environment		Operating	Non-Operating
	Temperature	0 ~ 40 °C (32 ~ 104 °F)	-40 ~ 70 °C (-40 ~ 156 °F)
	Humidity	10 ~ 85% @ 40 °C	10 ~ 95% @ 40 °C
	Vibration (5 ~ 500 Hz)	0.3 Grms	2 G
	Shock	10G (with 11ms duration, half since wave)
Physical Characteristics	Dimension (W x H x D)	438 mm x 88 mm x 523 mm ( 17.24" x 3.46" x 20.59")
Physical Characteristics	Weight (N.W. / G.W.)	8.5kg/10.5kg

ECC support please reference to CPU specification
Some Xeon processors have no graphic Please check Intel specification for processor graphics availability

Ordering Information

Part Number	Compatible Chassis	Memory	Chipset	GbE/ IPMI	Graphic

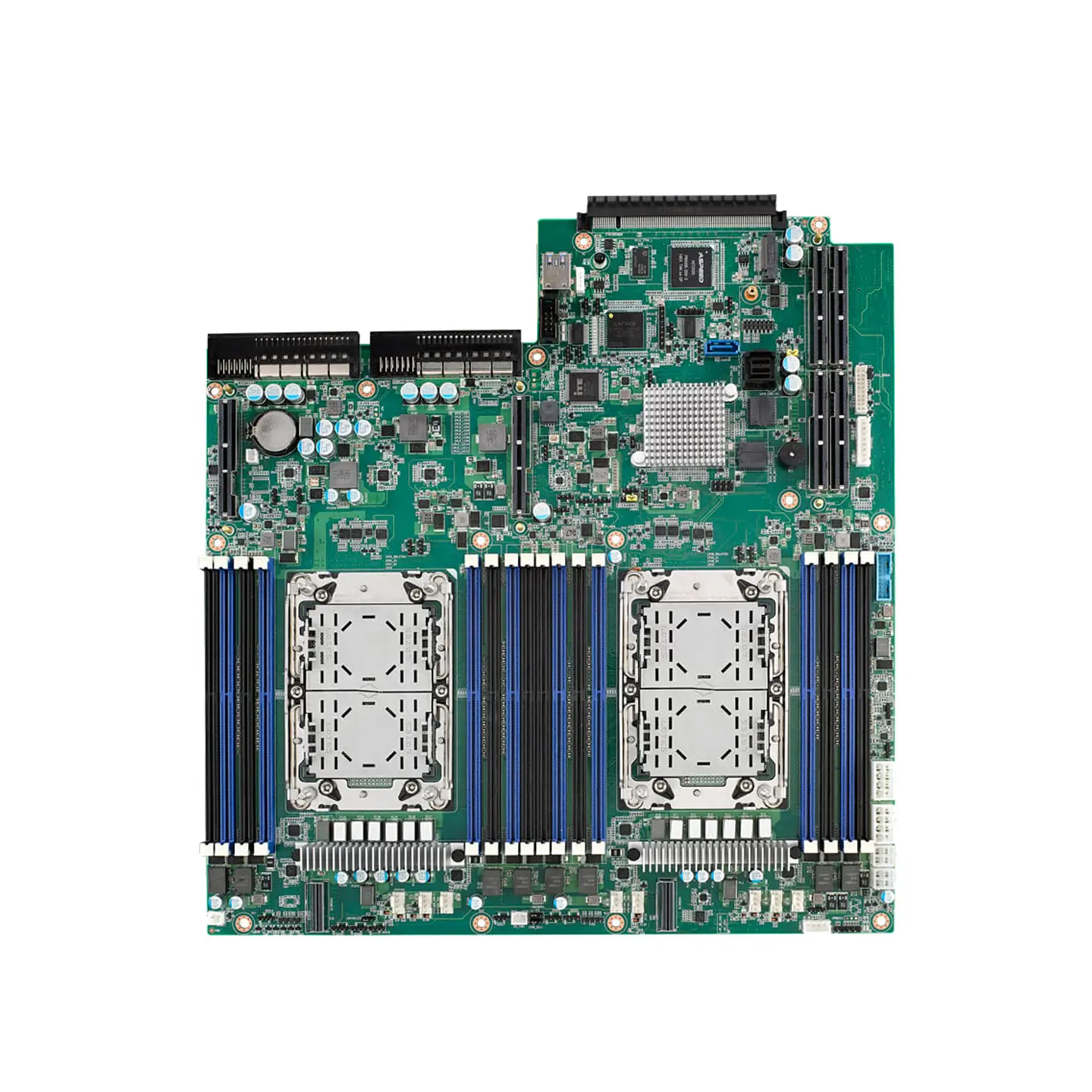

ASMB-622-00A1	HPC-6240	16 x DDR4 RDIMM	C621A	4/ 1(dedicated NIC)	AST 2500

Part Number	Compatible MB	CPU	CPU Cooler	GPU	Build-in PSU
HPC-6240-12ZX	ASMB-62 series	Dual CPU, up to 165W each	2U	1 x 350W with active fan, or 2 x 175W with active fan	1200W, 1+0 Single (non-Redundancy) PSU
HPC-6240-12RX	ASMB-62 series	Dual CPU, up to 165W each	2U	1 x 350W with active fan, or 2 x 175W with active fan	1200W 1+1 Redundant Power Supply

System Contents

Items	Advantech P/N	Quantity
Startup manual	2042B62200	1
Rackmount Kit (handle and Ear set)	1960082514T001	2
Extension bracket for 9.5" GPU Card	1960098660N000	1
Extension bracket for 10.5" GPU Card	1960097878N000	1

Optional Accessories

Items	Advantech P/N	Quantity
20" ~ 22" Slide Rail kit	968DE00012	1
TPM 2.0 module	PCA-TPM-00B1E	1
2-port NVMe drive kit	98R1310001E	1
LGA4189 narrow CPU cooler for 2U chassis	1970004902T000	2
GPU power cable for GPU card with PCIE 8P+8P power connector	1700032433-01	1
GPU power cable for GPU card with CPU 8P power connector	1700033606-01	1
ODD power cable	96CB-SATAPOWER-6P2	1
ODD data cable	1700021735-01	1
1200W Power MODULE	96PSRM-A1K2WCRPA	1
2U Front Bezel	98R16200010	1
