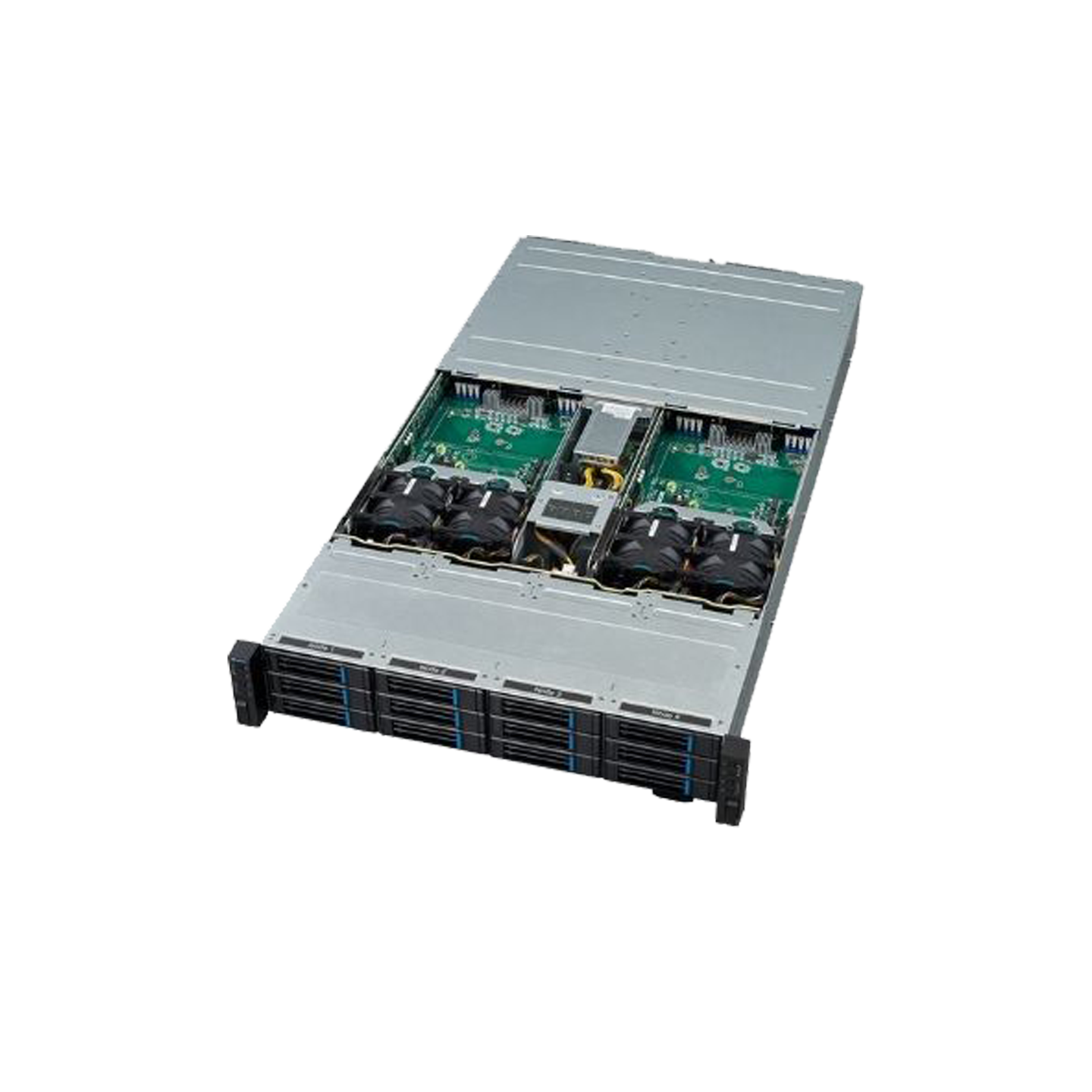

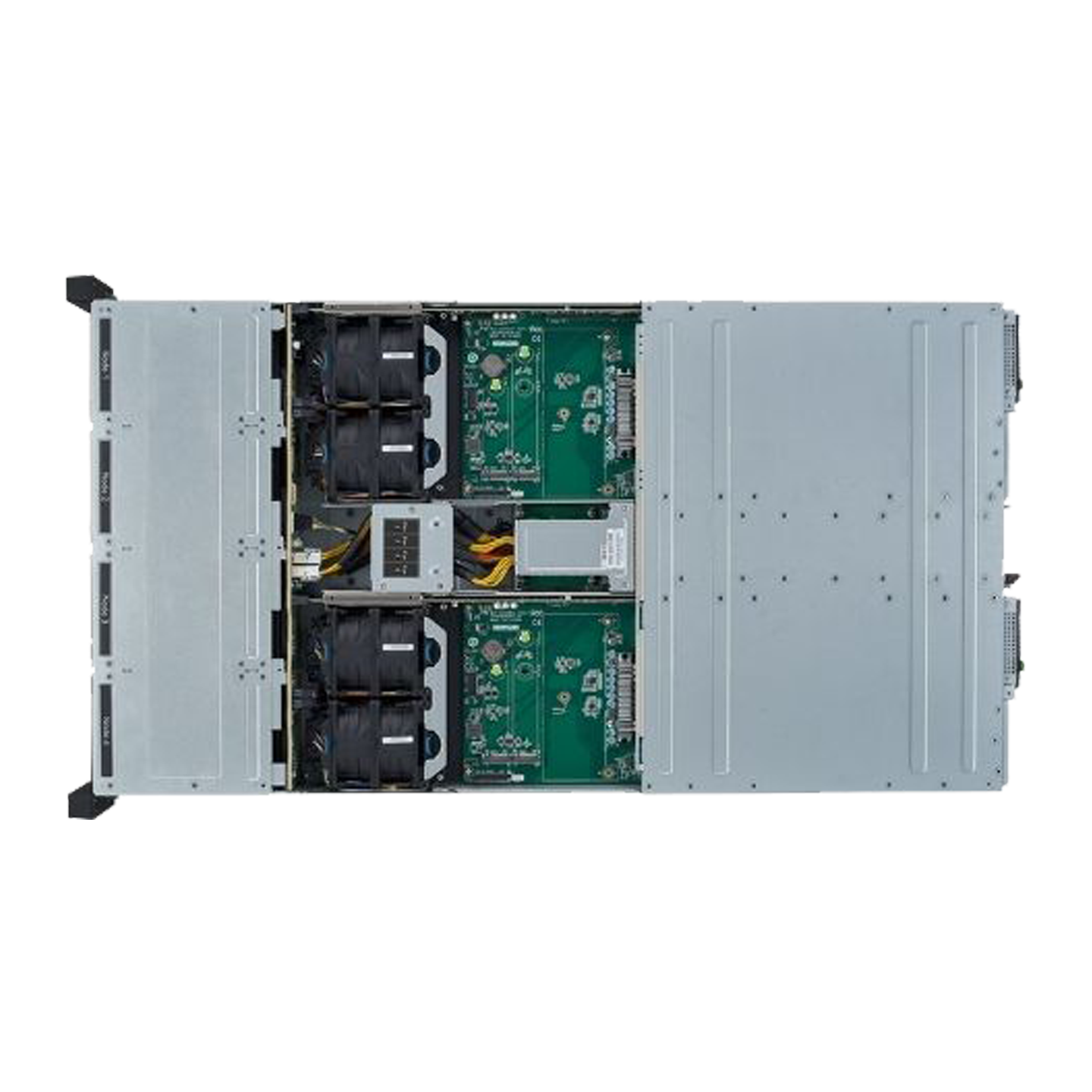

System (Model name: SKY-9236S3)
|
Physical Characteristics |
Form Factor | 2U rackmount |
| Dimension (W x H x D) | 438 x 87.5 x 810 mm | |
| Motherboard | 4 x hot-swappable MIC-8340 CPU nodes | |
| Net Weight | 30 kg | |
|
Front Panel |
Buttons | Power button UID button |
|
LED |
Power status LED (integrated in power button) HDD activity/status LED
Network activity LEDs UID LED (integrated in UID button) Information LED |
|
| Front External Drive Bay | Type/Quantity | 12 x hot-swappable 3.5" HDD trays (3 x HDD trays per node) |
| Interface | 6Gb/s SATA | |
| System Cooling | Fan | 4 x 8 cm (8076) hot-swappable dual-rotor PWM fans with fan speed control |
|
Power Supply* |
Type/Quantity | 2 x redundant (1+1) PSU with PMBus |
| Input Range | AC capability (100 - 264Vac) | |
| Efficiency | 80 Plus Titanium | |
| Output Watts | 2000 / 2200W (depends on SKU) | |
|
Operating Environment |
Operating Temperature / Humidity | 5 ~ 35°C (41 ~ 95°F) / 5% to 95% @ 35°C (non-condensing) |
| Non-operating Temperature/ Humidity | -40 ~ 60°C / 5% to 95% @ 60° C (non-condensing) | |
| Regulation | CE/FCC | Class A |
| UL/cUL/CB | Class A | |
| RoHS | RoHS 6/6 Compliant | Yes |
Mainboard for CPU Node (Model name: MIC-8340)
| Processor | Supported CPU Series | Single Intel® Xeon® 6 Scalable Processors (FCLGA4710 socket) |
| Thermal Design Power (TDP) | Up to 205W *1 | |
|
Memory |
Support DIMM Quantity | 8 x DIMM slots |
| DIMM Type/Speed | DDR5 ECC RDIMM up to 6400MHz | |
| Capacity | Up to 2TB ECC RDIMM per node*1 | |
| Memory Channel | 8 channels | |
|
I/O |
PCIe Slots | SKU A: 1 x PCIe Gen5 x16 (half height, half length) SKU B: 2 x PCIe Gen5 x16 (half height, half length) |
| OCP3.0 Mezzanine Slot | 1 x PCIe Gen5 x16 | |
| Console Port | Micro USB | |
| Management Port | 1x RJ-45 connector | |
| Display | Mini DisplayPort | |
| USB | 1 x USB 3.0 Type-A | |
| Node Storage | E3.S Device | SKU A: PCIe Gen5 x4 SSD, E3.S 1T |
| M.2 Device | 2 x PCIe Gen5 x4 M.2 SSD 1 x 22110 / 1 x 2280 | |
| TPM | TPM module | On-board TPM 2.0 |
| Server Management | Solution | Onboard ASPEED AST2600
IPMI 2.0 based on Advantech IPMI Core |
| BIOS | Solution | Redundant AMI 64MB SPI Flash |
*1. Depends on the system configuration.
*2. Please contact your local Advantech sales representative for other SKU demands
Ordering Information
| Part Number | Description |
| SKY-9236S3-L6A00 | SKY-9236S3 Barebone, 4 x MIC-8340 CPU nodes, 2 x AC 2000W PSUs, 12 x 3.5" SATA HDD slots |
Optional Accessories
| Part Number | Description |
| SKY-9234S3-SLR | SKY-9234S Slide Rail |
| SKY-9234S3-PSU01 | SKY-9234S 2000W AC PSU |
