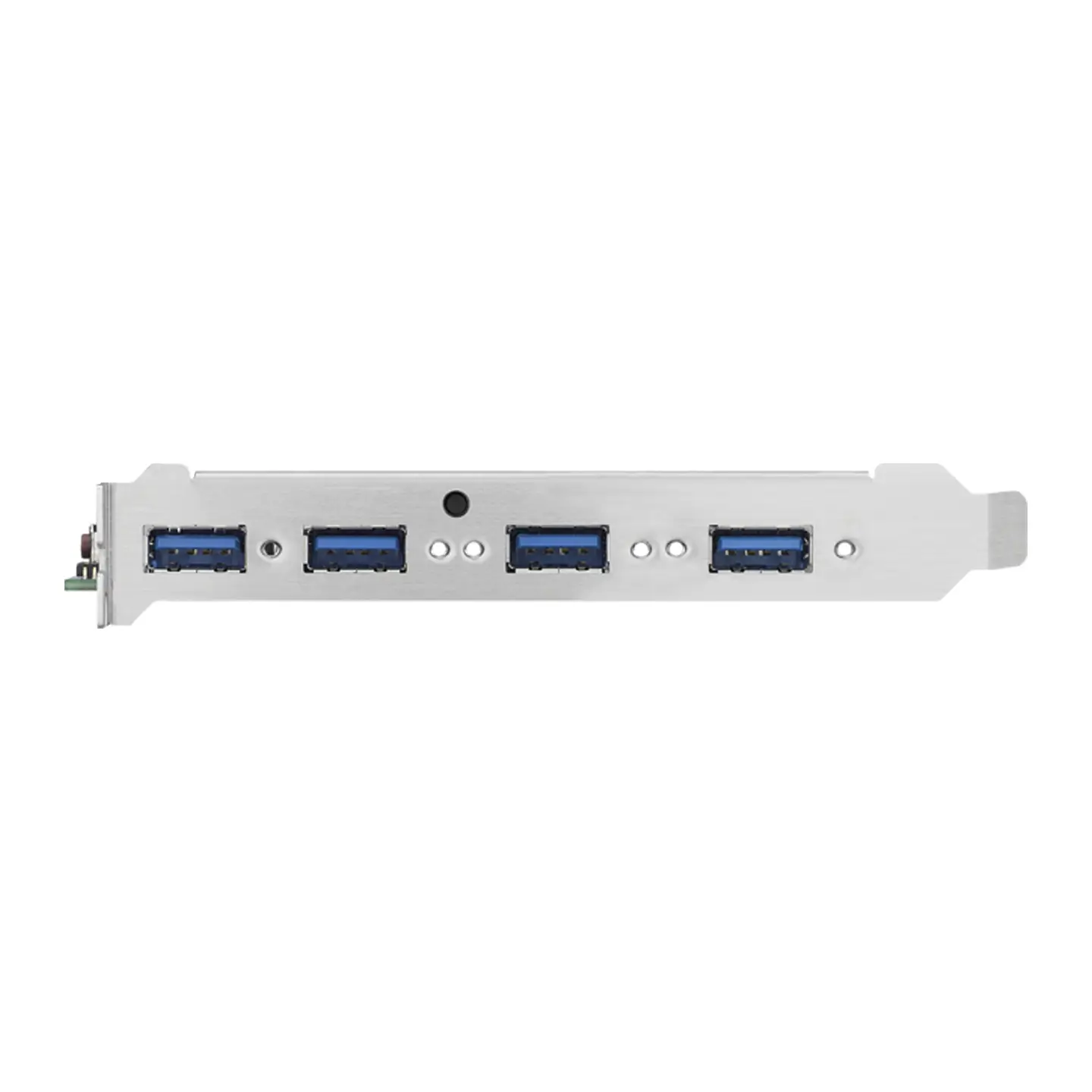

PCE-USB4V2

PCI Express x4, 4-Port USB 3.2 Gen2 Expansion Card

Three USB 3.2 host controllers
Supports 3000mA Max. current per port
Support four USB 3.2 Gen2 port
Compliant with USB 3.2 specification and Intel® xHCI specification, revision 1.1
PCI Express x4 interface
HW/SW Reset function
Supports Microsoft Windows 7/8.1/10/11 and Linux operating systems

PCE-USB4V2 _ 技术规格

如需帮助,请联系我们

免费电话：400- 880- 8951

邮箱：advavee@outlook.com
咨询客服：一站式采购

批量采购定制咨询，请发送您的需求，我们将立即回复。

规格

USB	接口	PCI Express x4
	连接器	4 x USB 3.2 Gen2 Type A (PCE-USB4V2-00A1)
	主机总线	4-lane Gen 3 PCIe interface, compliant with PCI Express Base Specification, Revision 3.1a
	控制器	3 x Asmedia 3142 host controllers Compliant with Universal Serial Bus 3.2 Specification and Intel® xHCI Specification, Revision 1.1
	复位	Hardware/Software reset function
	最大电流	3000 mA maximum per port
	数据传输速率	Super speed+ (10.0 Gbps)Super speed (5.0 Gbps)/high speed (480.0 Mbps)/full speed (12.0 Mbps)/low speed (1.5 Mbps)
工作环境	工作温度	0 ~ 60 °C
	存储温度	-40 ~ 85 °C
	尺寸（长×高）	118 x 111 mm (4.64" x 4.37")
	认证	CE/FCC, Class B
