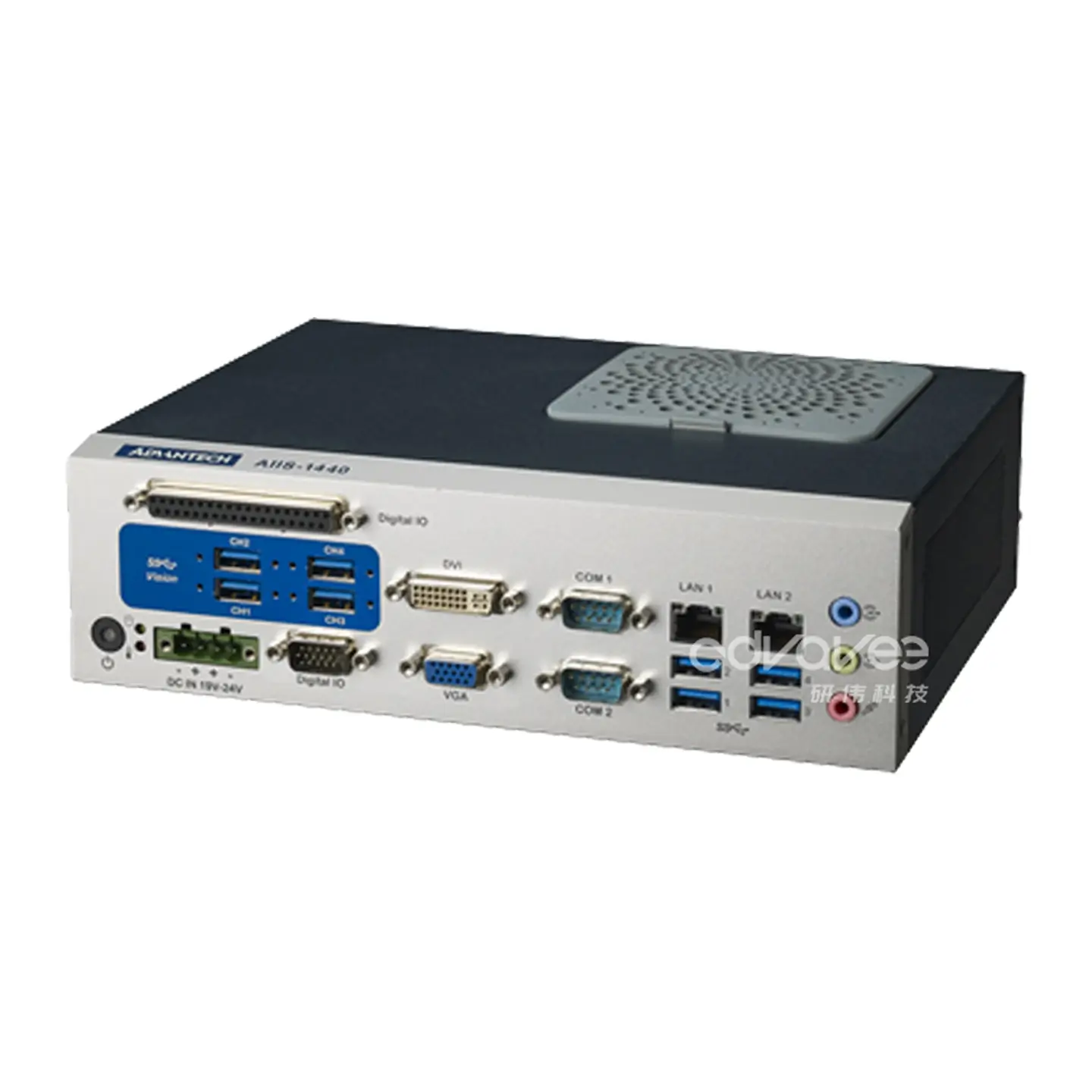

AIIS-1440

研华AIIS-1440 是一款支持USB3.0 CAM 紧凑型系统,支持英特尔酷睿™ i7/i5/i3 CPU,4通道专用USB3.0控制器，带有简单的风扇滤网维护，体积小于3升的机器视觉工控机

支持英特尔酷睿™ i7/i5/i3 CPU(LGA1155)
4通道USB3.0专用控制器
– 每个信道符合超快数据速率（5 Gbps）
– 兼容USB3.0相机
紧凑&贴心设计
– 体积小于3升
– 简单的风扇滤网维护
– 隔离数字的输入/输出
– 内部1个USB加锁特别设计(最大49mm)
– 墙壁或DIN导轨安装套件（可选）
– 内建重力传感器进行振动检测

产品型录PDF

需要帮助吗？请联系我们。

免费电话：400-880-8951

公司邮箱：advavee@outlook.com
咨询客服：一站式采购

批量采购定制咨询，请发送您的需求，我们将立即回复。

产品资讯

Specifications

Processor System	CPU	Core i7-3770 Core i5-3550S Core i3-3220
	Core	4 4 2
	Base Frequency	3.4 GHz 3.0 GHz 3.3 GHz
	L3 Cache	8 MB 6 MB 3 MB
	Chipset	H61
	BIOS	AMI 64Mb SPI Flash
Memory	Technology	Dual Channel DDR3 1066/1333 MHz (Non ECC)
	Max. Capacity	16 GB (8 GB per DIMM)
	Socket	204-pin SO-DIMM x 2
Graphics	Chipset Integrated	Integrated Intel HD Graphics
USB3 (Dedicated controller)	Controller	CH1 ~ CH4: μPD720202
	Compliant	USB 3.0
	Power Output	4.5W per Channel
Ethernet	Interface	10/100/1000 Mbps
Ethernet	Controller	LAN1: Intel 82579V, LAN2: Intel 82583V
Storage	Internal 2.5" HDD Bay	1 (max. 9.5 mm height)
Storage	CFast	1
Front I/O	Display	VGA + DVI-D
	USB	4 USB3.0
	Serial	2 (RS-232, RS-422 or RS-485 via BIOS setting; RS-485 with auto-flow control)
	Isolated DIO	Default: 4 isolated DI and 4 isolated DO channels Optional module: 16 isolated DI and 16 isolated DO channels (AIIS-DIO32-00A1E) High-voltage isolation up to 2,500 VDC on all channels Dry/wet contact support Supports 5 ~ 60 VDC isolated input channels High-sink current for isolated output channels (100mA max./Channel) Interrupt handing & Timer/counter capability
Rear I/O	USB	4 USB2.0
Rear I/O	Serial	4 RS-232
Watchdog Timer	Output	System reset
Watchdog Timer	Interval	Programmable 1 ~ 255 sec/min
Power Requirement	Power Type	ATX
	Power Input Voltage	19 VDC ~ 24 VDC
	Minimum Power Input	DC 19-24V @ 8-6.3A
	Power Adapter	AC to DC, DC24V/9.16A, 220W (Optional)
Cooling	System Fan	1 (6cm / 27.7 CFM)
Miscellaneous	LED Indicators	Power, HDD, temperature
Miscellaneous	Control	Power on/off switch
Environment	Operating Non-operating
	Temperature	0 ~ 45° C (32 ~ 113° F)* -40 ~ 70° C (-40 ~ 158° F)
	Humidity	10 ~ 95% @ 40° C, non-condensing 10 ~ 95% @ 60° C, non-condensing
	Vibration	1Grms, random, 5~500Hz, 3 axes, 1 hr/axis 2G, sine wave, 5~500Hz, 3 axes, 1 hr/axis
	Shock	10G, half sine wave, 11 ms duration
Physical Characteristics	Dimension (W x H x D)	232 x 70 x 175 mm (9.06" x 2.76" x 6.89")
Physical Characteristics	Weight	2.5 kg

* Depend on CPU

Ordering Information

Part Number	Display	USB 3.0/2.0	Isolated DIO	COM 232/422/485	COM 232
AIIS-1440-00A1E	VGA+DVI-D	4* + 4 / 4	8-CH	2	4

* Dedicated controller per channel

Optional Accessories

Part Number	Description
98R2124000E	DIN-Rail Bracket
1700023217-01	M cable D-SUB 15P(F)/D-SUB 25(M) 1M AIIS-1240
ADAM-3925-AE	DB-25 Wiring Terminal, DIN-rail Mount
AIIS-DIO32-00A1E	Isolated DIO module, 32-CH, 9-pin USB interface
PCL-10137-1E	M Cable D-SUB 37P(M)/D-SUB 37P(M) 100CM
ADAM-3937-BE	DB-37 Wiring Terminal, DIN-rail Mount
96PSA-A220W24P4-1	220Watt DC24 Adapter
1702002600	Power cord 3-pin UL/CSA (USA) 125 V 10A 1.83 M 180D
1700022940-01	Power cord PSE 7A 125 V 3P 3 m DAC-ST01
1702002605	Power cord 2P (France) 10A/16A 220 V 1.83 M 90D

Note: If there is no 19~24VDC source in your facility, this adapter is required to power on the system

Packing List

Items	Part Number	Quantity
AIIS-1440 Bare System	AIIS-1440-00A1E	1
Startup Manual	2006S12400	1
Driver CD	206K124000	1
Wallmount Bracket	1960014487T004	2
Rubber Foot	1990012452S000	4
CPU Cooler	1960060620N001	1
4-pin Phoenix DC power connector	1652003234	1
