Specifications
| Controller | 1x Intel® X710-BM2 |
| Interface | 1x PCIe x8, Gen3 |
| Speed | 10GbE |
| Port | 4x Fiber port |
|
LAN LED definition |
Link / Act LED (Right/Left): Link: Green on
Active: Green Blinking Bypass LED: (Middle): LAN Bypass: Amber on Disconnect: Amber blinking Connect: N/A |
|
Advanced Software Features |
Teaming support IEEE 802.3ad
IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation |
|
OS Support |
Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 |
| Operating Conditions | Operation: 0 ~ 45 °C
Storage: -20 ~ 60 °C |
| Power Voltage & consumption | +12V ± 10% 17W |
| Dimension (W x H x D) | 74.6 x 42.4 x 174.7 mm |
| Compliance | CE/FCC |
Ordering Information
| Part Number | Description |
| NMC-4007-000110E | 4 Ports 10GbE SR Thumbscrew Type Fiber Advanced LAN Bypass |
| NMC-4007-000111E | 4 Ports 10GbE LR Latch Type Fiber Advanced LAN Bypass |
| NMC-4007-04FBSSA2 | 4 Ports 10GbE SR Thumbscrew Type Fiber Advanced LAN Bypass |
| NMC-4007-04FBLSA2 | 4 Ports 10GbE LR Thumbscrew Type Fiber Advanced LAN Bypass |

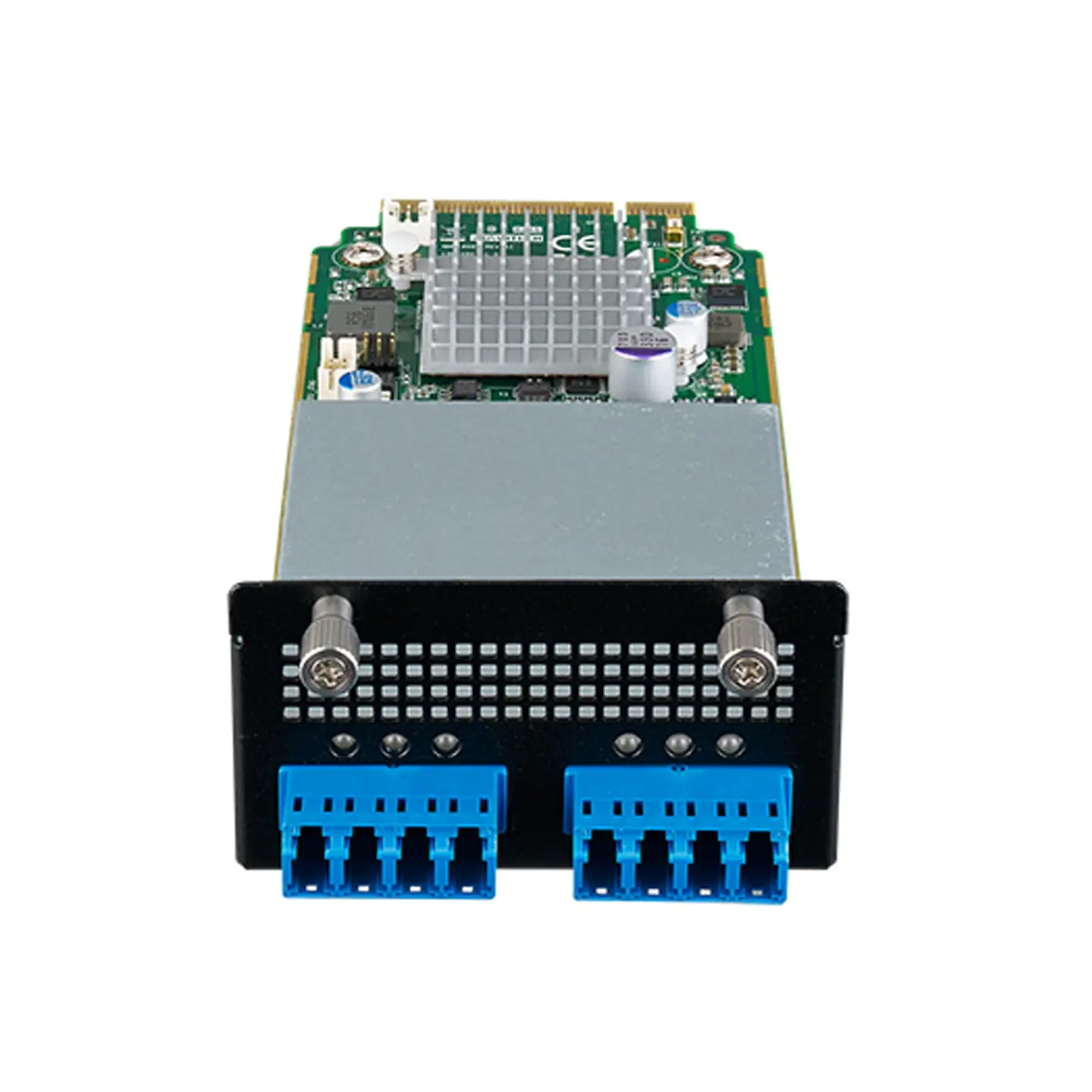

NMC-4007
