| 控制器 | 2 x Intel i350-AM4 |
| 接口 | 1 x PCIe x4, Gen2 |
| 数据速率 | 1GbE |

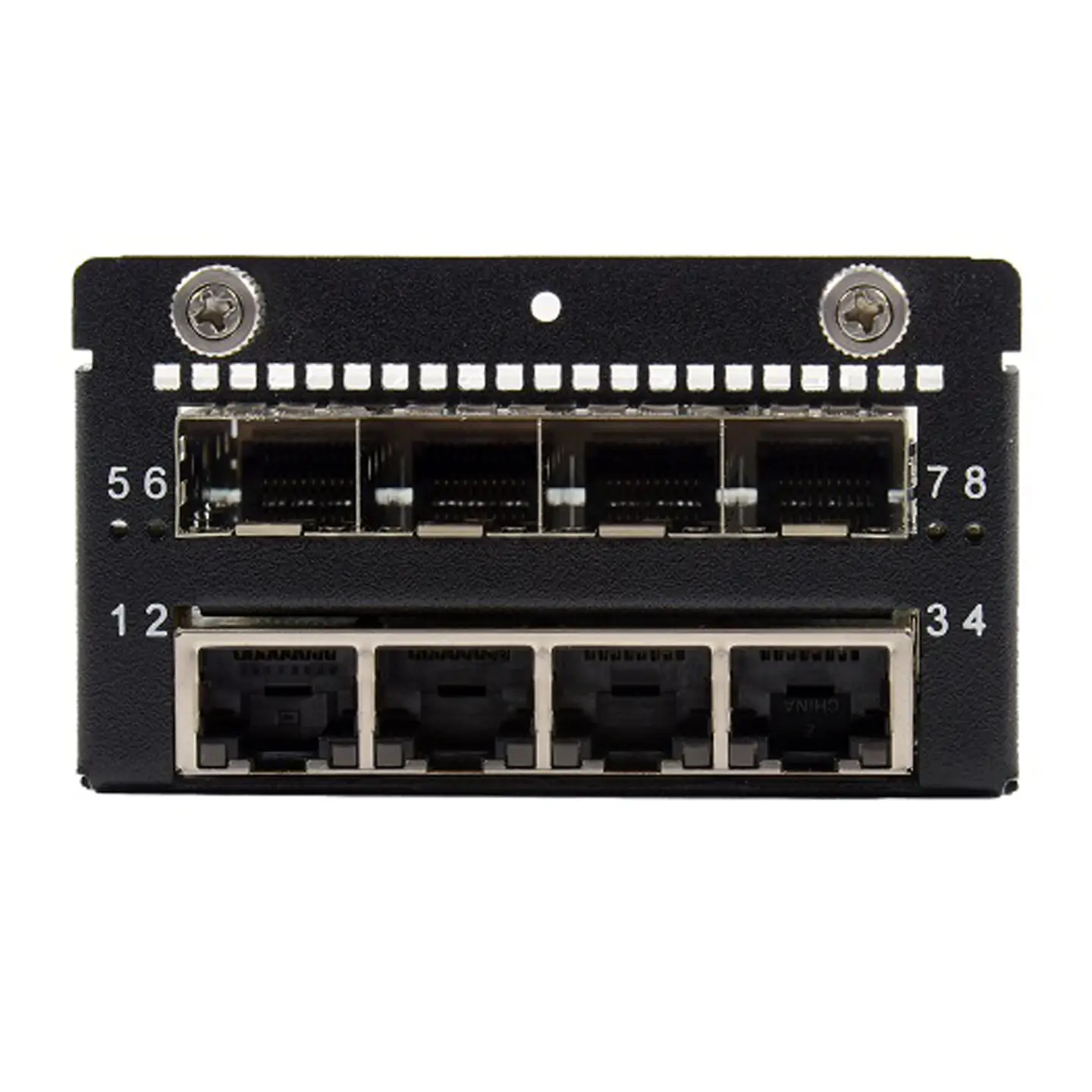

| 端口 | 4 Ports 1GbE Copper(RJ45) Connectors + 4 Ports 1GbE Fiber(SFP) Connectors |
| LAN Bypass | 2 pairs Advanced LAN Bypass (optional) |
|
LAN LED definition |
Port1/2/3/4 Indicator: 10Mbps: LED off 100Mbps: LED on(Amber)
1000Mbps: LED on (Green) Link: LED on Act: Blinking LAN Bypass: Amber on |
| Port5/6/7/8 Indicator: Link: LED on
Act: Blinking |
|
| 合作支持： | |
| 应用软件特性 | IEEE 802.3ad
IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support |
| Interrupt moderation | |
|
支持OS |
Windows® Server 2012 R2, 2012, 2008 R2 X86-64
Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi5.1, ESXi5.5 and ESXi6.0 X86-64 |
| 工作温度 | Operation: 0 ~ 45 °C
Storage: -20 ~ 60 °C |
| 电源电压 &
功耗 |
+12V ±10% 15W |
| 尺寸
(W x H x D) |
74.5 x 42.5 x 174.7 mm |
| 认证 | CE/FCC |
| 料号 | 类型 | 说明 |

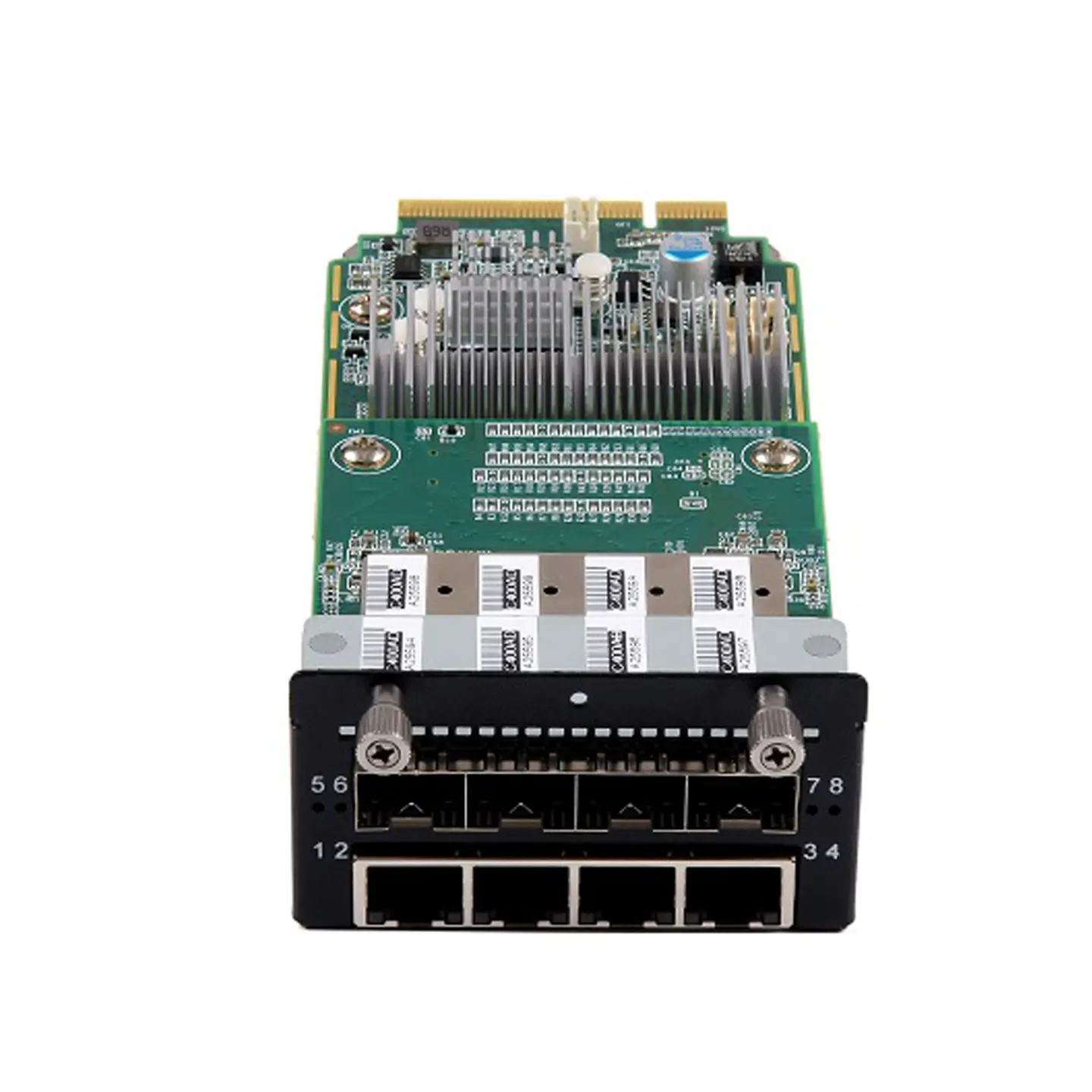

| NMC-0808-08CFSB1 | Thumbscrew | 4 Ports 1GbE Copper + 4 Ports 1GbE SFP |
