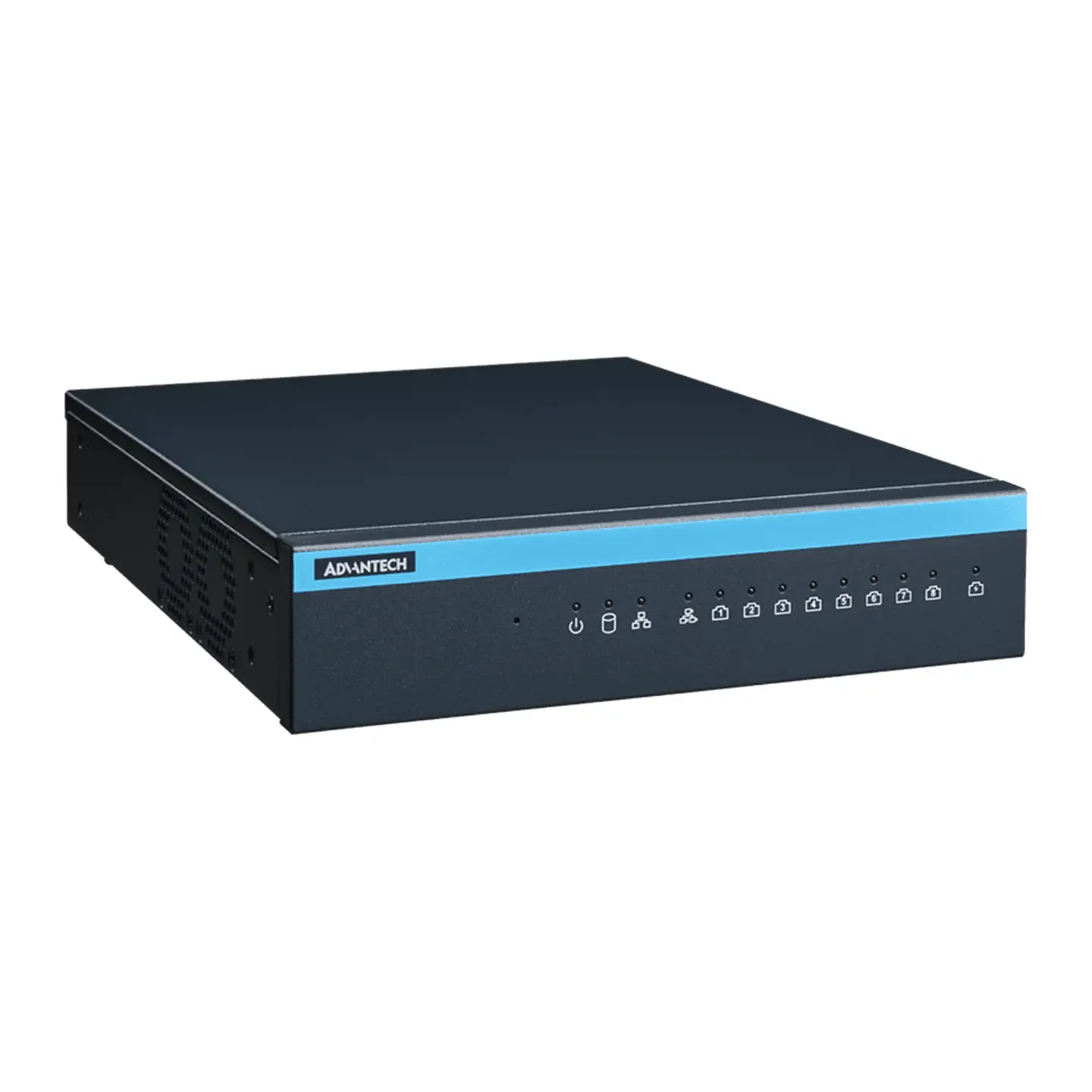

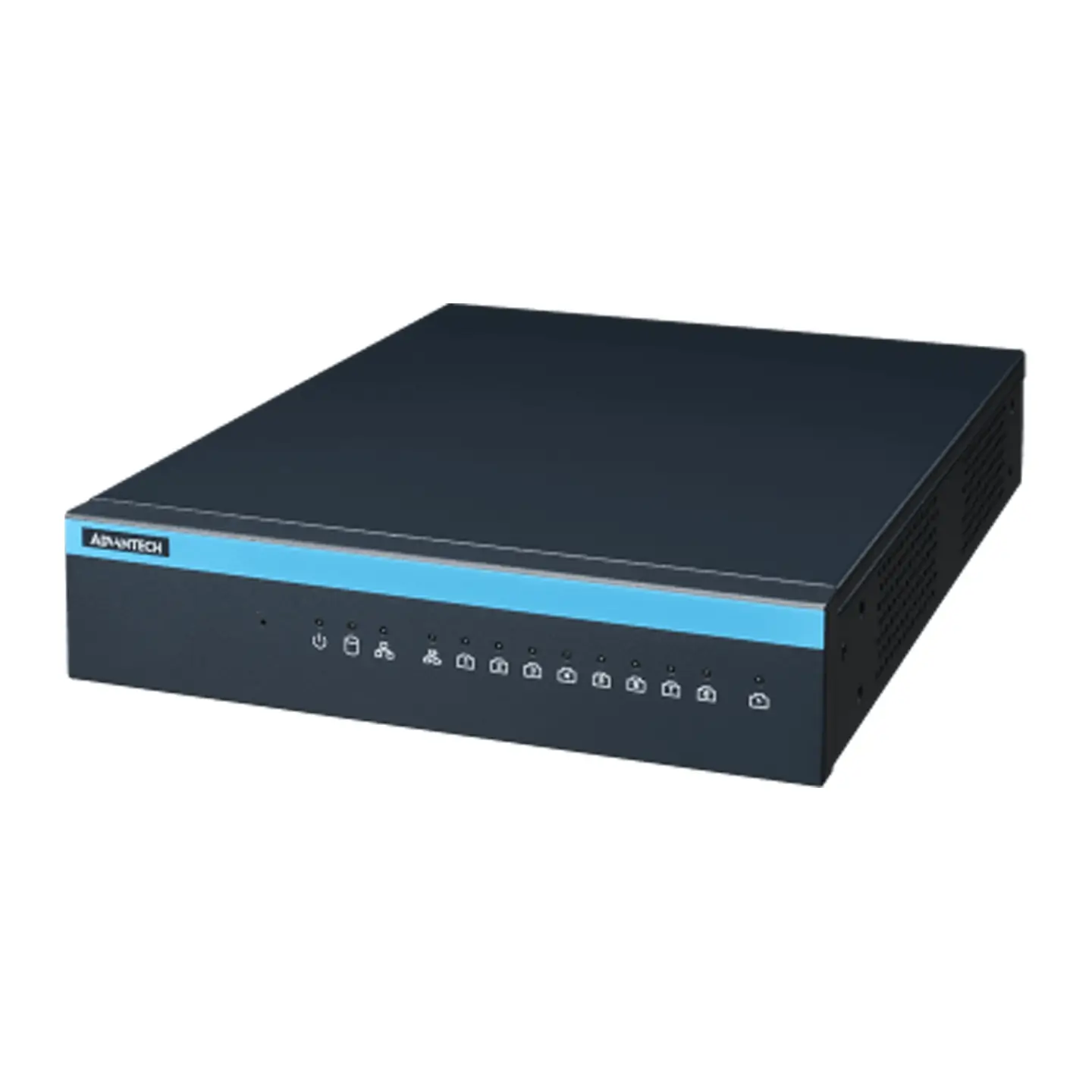

| MIC-717-OX | MIC-717-OX | ||
| 处理器系统 | CPU型号 | Jetson Orin NX 16GB | Jetson Orin NX 8GB |
| AI性能 | 100 TOPS | 70 TOPS | |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | ||
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2 MB L2 + 4 MB L3 | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5 MB L2 + 4 MB L3 | |
| 内存容量 | 16 GB 128-bit LPDDR5102.4 GB/s | 8 GB 128-bit LPDDR5102.4 GB/s | |
| I/O | 以太网 | 2 x 10/100/1000 Mbps | |
| 显示 | HDMI (max. resolution 3840 x 2160 @ 60 Hz) | ||
| USB | 1 x USB 3.0 ((Internally used for recovery mode) 2 x USB 2.0 | ||
| Digital I/O | 4-ch DI, 4-ch DO | ||
| PoE + Ports | 8 x RJ-45 (10/100 Mbps + PoE / total power: 123.2 W) | ||
| 扩展 | M.2 1 x M.2 3042 (B-Key, signal: USB) | ||
| SIM | 1 x Nano SIM slot | ||
| TPM | 1 x TPM 2.0 | ||
| 存储 | M.2 1 x M.2 2280 (M-Key, NVMe, signal: PCIe x4) | ||
| HDD/SSD | 1 x 3.5" HDD or 1 x 2.5" SSD | ||
| 电源 | 电源输入 | 54 V DC, 4.26 A | |
| 电源 | Adapter (external) | ||
| 工作环境 | 工作温度* | 0 to 50°C (32 to 122°F) | |
| 工作湿度 | 95% relative humidity @ 40°C (104°F), non-condensing | ||
| 振动 | 3 Grms @ 5 to 500 Hz, random, 1 hr/axis | ||
| 冲击 | 10G / 11ms | ||
| 物理特性 | 尺寸（宽× 深× 高） | 254.5 x 195.0 x 44.45 mm (10.0 x 7.67 x 1.75 in) | |
| 重量 | 1.14 kg (2.5 lb) | ||
| 安装 | Desktop/ Wallmount/Din Rail/Shelfmount | ||
| BSP | Jetpack | Above 5.1 | |
| 认证 | CE, FCC, UKCA, RoHS, Reach | ||
| 料号 | NVIDIA 模块 | NVIDIA 模块内存 | NVIDIA 模块 eMMC | NVMe** |
| MIC-717-OX3A1 | Orin NX | 8 GB | N/A | 128 GB |
| MIC-717-OX4A1 | Orin NX | 16 GB | N/A | 128 GB |
* 系统 BSP 将预装于 128GB NVMe M.2 SSD 中
| 料号 | 描述 | 数量 |
| 1960102775T002 | Wall Mount Kit | 2 |
| 1652007963-01 | DIO Terminal Block | 1 |
| 1930004905 | HDD Screw | 4 |
| 1700032684-01 | M cable SATA 22P/SATA 7P+1x4P-2.5 20cm 90/180 6G | 1 |
| 1700023588-01 | M Cable USB-A 4P(M)/USB-A 4P(M) 120cm | 1 |
| 1930005626 | Screw M4*5L S/S D=8.0 H=1.6 + ST Ni | 4 |
| 1652002209 | Power terminal block | 1 |
| 料号 | 描述 |
| XAC-FSP230-AWAN3 | ADP A/D 100-240 V 230 W 54 V |
| 1702002600-01 | Power cord (USA) |
| 1702002605 | Power cord (EU) 2-pin |
| 9651960AL00 | LTE bracket accessory kit |
| NVS-960STD-RM | NVS-960 STD rack mount kit |
| NVS-960STD-DR | NVS-960 STD DIN rail kit |
