Input |
Input Voltage range | Typ. 90-264VAC |
| Input Frequency | 47-63Hz | |
| Input Current | 3A@115VAC / 1.5A@230VAC | |
| Inrush Current | 5.3Arms at 230VAC | |
| Input Connector | FCI 51939-667LF | |
|
Output |
Output Voltage | Vo1: +12V, standby Vo2: +5V |
| Output Current (typ.) | Vo1: 25A, standby Vo2: 2.5A | |
| Output Wattage | Typ. 312.5W continuous | |
| Output Connector | FCI 51939-667LF | |
| Line Regulation | Typical 1% | |
| Load Regulation | Vo1 typical ±1%, Vo2 typical ±5% | |
| Total Tolerance | Vo1 typical ±2%, Vo2 typical ±5% | |
| Noise & Ripple | Typical 1% peak to peak | |
| Hold-up Time | 18mS at 115 & 230VAC | |
|
General |
Efficiency | Typical 90% at 230VAC |
| Switching Frequency | 85-100KHz | |
| N+1 Redundancy | Available | |
| Hot-swappable | Available | |
| DC OK | Available | |
| Power Fail Signal | Available | |
| PMBus interface | Available | |
|
Protection
LED |
Over Voltage | Available |
| Over Current | Available | |
| Over Load | Typical 120%-130% peak current at 115VAC | |
| Over Temperature | Available | |
| FAULT | Green: valid input voltage Red: critical fault | |
| Power | Green: DC OK | |
|
Environment |
Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) (with air flow and derating) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
| Cooling | 200 LFM moving air | |
| Operating Humidity | 95% @ 40°C, non-condensing | |
| Non-operating Humidity | 95% @ 60°C, non-condensing | |
| Shock | 10 G, 11ms, each axis three times, operating mode | |
| Vibration | 2Grms (5 ~ 500 Hz) |
| Assignment | Volt. | Typical | Min | Max |
| V1 | 12V | 25A | 0A | 25A |
| V2 | 5V | 2.5A | 0A | 2.5A |
| PN | Description |

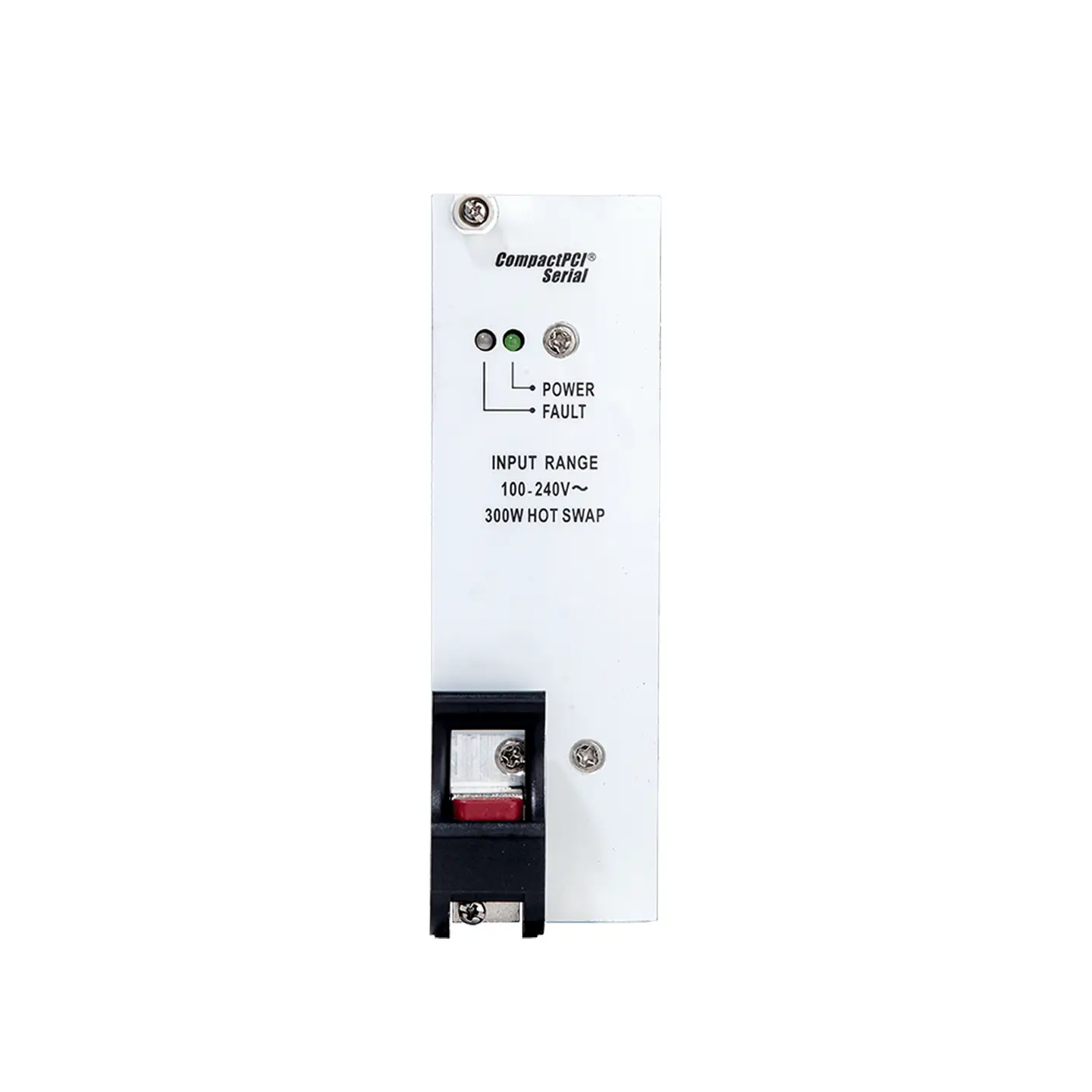

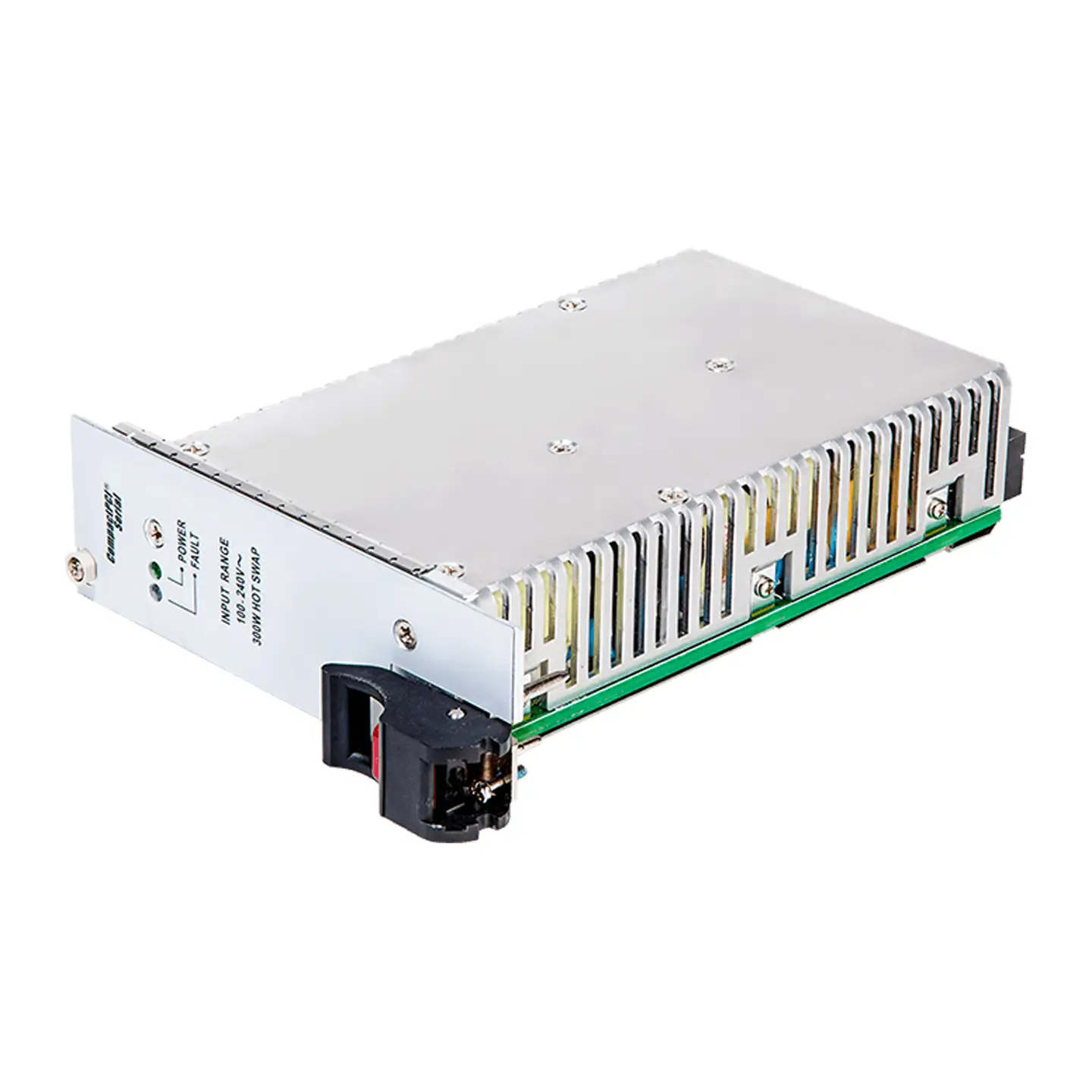

| MIC-3890AC-A1D1 | A/D 100-240V 312.5W 12V/5V 3U 8HP CPCI-S |
| Models | Description |
| MIC-330 | 3U CompactPCI® serial Intel® 9th gen. processor blade |
| MIC-330V2 | 3U CompactPCI® serial Intel® 11th gen. processor blade |
| MIC-332 | 3U CPCI-S carrier, AGX Orin |
| MIC-3810 | 3U CPCI-serial PCIe carrier board |
| MIC-3820 | 3U CPCI-serial SATA carrier board |
| MIC-3811 | 3U CPCI-serial dual Mini-PCIe carrier board |
| MIC-3954 | 3U CPCI-S Quad Mini-PCIe & M.2 carrier board |
| MIC-3860 | 3U CompactPCI® serial 4 Ports 2.5GBASE-T Ethernet board |
| MIC-3821 | 3U CompactPCI® serial M.2 PCIe/NVMe SSD carrier board |
| MIC-3812 | 3U CompactPCI® serial MXM carrier board |
| MIC-3861 | CPCI-S 10G Ethernet board |
| MIC-300A1 | 3U CPCI-serial 1 x7&1X9 serial BP W/O RIO, fan |
