Interface |
§ Ethernet Port: Total up to 22 x GbE ports and 4 x 10G ports are in use on-board
– Up to 19 x GbE ports and 1x 10G port connected to front panel connectors, M12 or RJ-45 interface available – Another 3 x GbE ports and 3 x 10G ports are available to backplane via CompactPCI serial con. P6 – The number of GbE ports and 10G Base-T ports are scalable § Console Port: USB type C (UART) § Power Connection: The CompactPCI® Serial backplane connector P1 |
|
Front Panel |

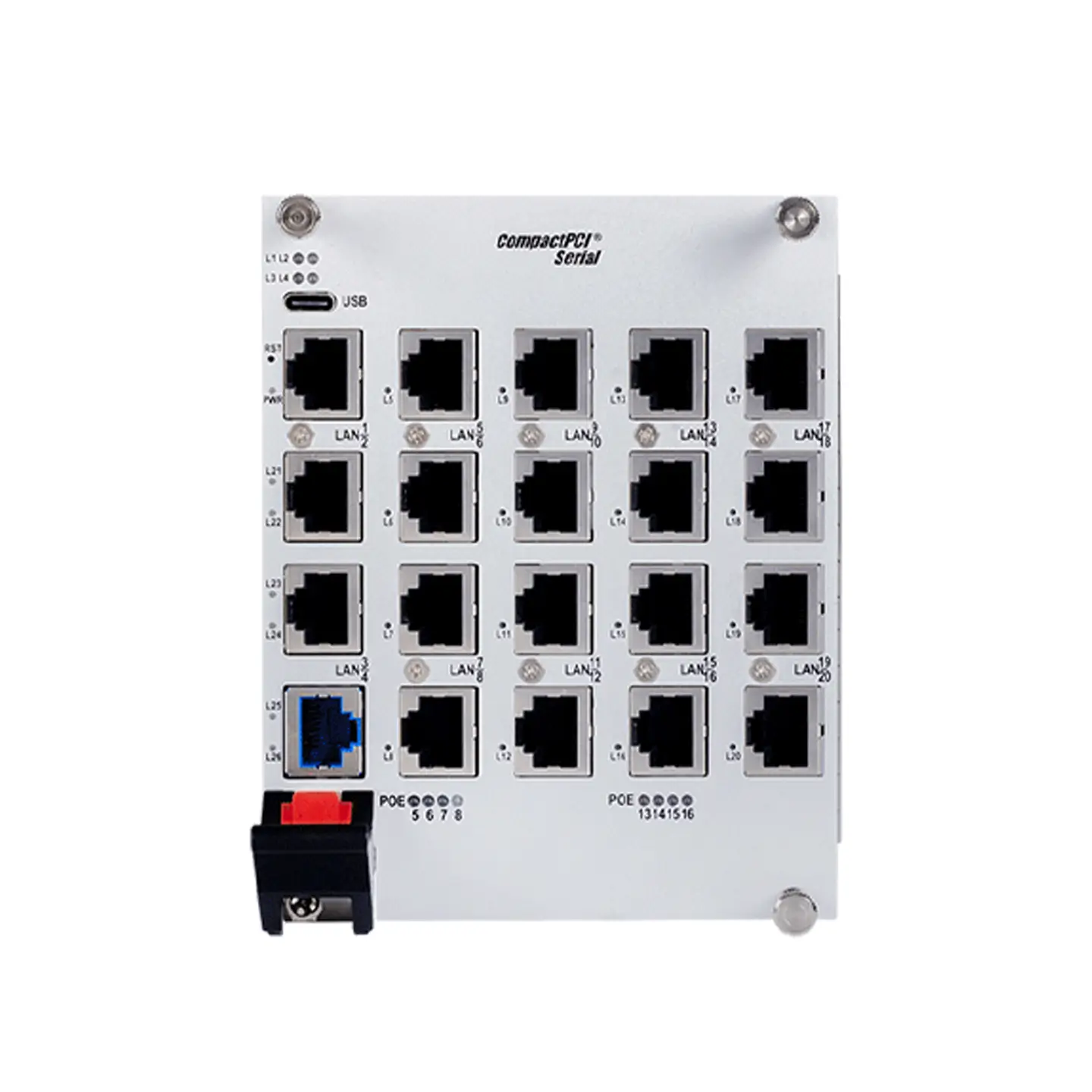

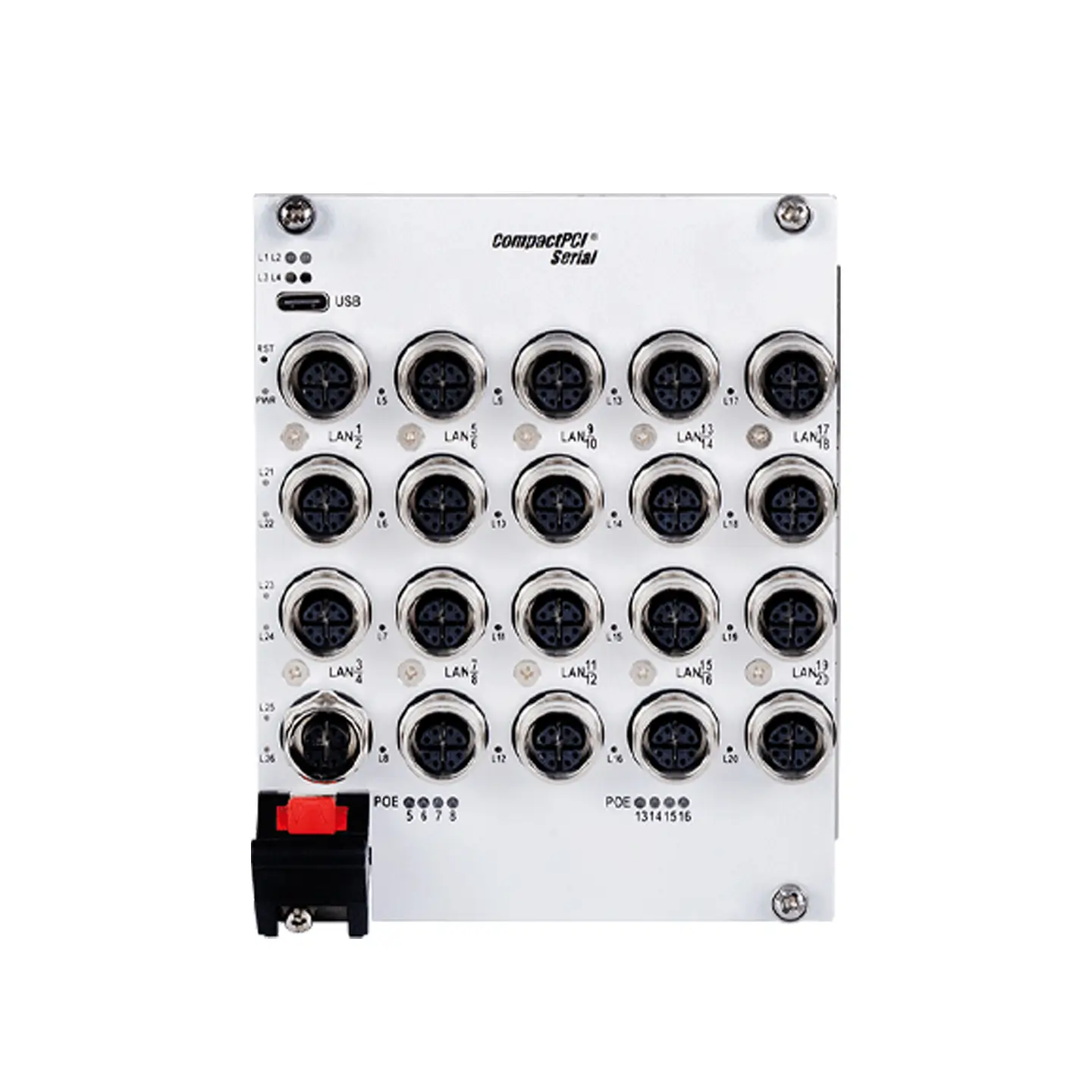

§ Up to 19 x GbE ports and 1x 1/10G port connected to front panel connectors, M12 or RJ-45 interface available
§ The number of GbE ports and 10G Base-T ports are scalable § 1 x USB Type C port for console |
|
LED Display |
§ System LEDs: PWR indicates Power LED, green is power on, yellow on is power off.
§ Port LEDs: LAN link/activity LEDs: – LAN Link: GbE LAN LED: 100M speed: yellow; 1000M speed: green; others: off 10GbE LAN LED: 1000M speed: yellow; 10G speed: green; others: off – LAN Activity: green blinking § PoE LEDs on XTM board: – PoE on: green – PoE off: off |
|
Switch Properties |
§ DRAM: 1024MB
§ Flash: 64MB § Max. IGMP group: 1024 § Max static VLANs: 256 § VLAN ID range: 1-4094 § MAC table: 16K § Jumbo frame: 12KB § Packet buffer: 12Mbits § Max priority queues: 8 |
|
L2 Features |
§ Link aggregate: static trunk, 802.3ad LACP
§ VLAN: IEEE 802.1Q tag-based, 802.1ad VLAN stacking, GVRP, GMRP, private VLAN § Port mirroring: per port, multi-source port § IP multicast: IGMP snooping v1/v2/v3, MLD snooping § Redundancy: IEEE 802.1D-STP, IEEE 802.1s-MSTP,IEEE 802.1w-RSTP |
Specifications (Cont.)
|
QoS |
§ Priority queue: scheduling WRR (weighted round robin), SP (strict priority)
§ Class of service: IEEE 802.1p based CoS, IP TOS, DSCP, port priority § Rate limit: ingress/egress rate limit |
|
Security |
§ Loop detection: port-based detection/prevention
§ Storm control: broadcast, unknown multicast, unknown unicast § Port security: static MAC, MAC violation notice § Authentication: 802.1x (port-based), 802.1x (MAC-based), RADIUS, TACACS+ § Account manager: multiple account § IP security: IP source guard, DHCP snooping, ARP spoofing § ACL: L2, L3 access control list, permit/deny/redirect |
|
Management |
§ DHCP: client, server
§ Config & access: IPv4/IPv6, SNMP v1/v2/v3, WEB GUI, Telnet, RMON, SSH 2.0, SSL(TLSv1) Standard MIB, private MIB § Upgrade/backup: TFTP, HTTP, SFTP; firmware dual image § Others: SNTP/NTP client, DNS client, syslog |
| On-Board Features | § Reserve PoE function on XTM-board by request, support IEEE 802.3 af/at mode
§ Reserve WIFI function on XTM I/O board by request |
| Power Consumption | § MIC-3850-B1S1: 15W
§ MIC-3850-B3D1/MIC-3850-A3D1: 18W |
|
Dimension |
§ Up to 3U/20HP, 100x160mm
§ Weight: MIC-3850-B1S1, 380g MIC-3850-B3D1/MIC-3850-A3D1, 650g |
|
Switch Standards |
§ IEEE 802.3 for 10BaseT
§ IEEE 802.3u for 100BaseT(X) § IEEE 802.3ab for 1000BaseT(X) § IEEE 802.3an for 10GBaseT(X) § IEEE 802.3x for flow control § IEEE 802.1D-2004 for spanning tree protocol § IEEE 802.1w for rapid spanning tree protocol § IEEE 802.1s for multiple spanning tree protocol § IEEE 802.1p for class of service § IEEE 802.1Q for VLAN tagging § IEEE 802.1X for authentication § IEEE 802.3ad for port trunk with LACP |
|
Environment |
Operating Non-Operating |
| Temperature -40~70°C (-40 ~ 158°F) supported based on -40 ~ 85°C (-40 ~ 176°F)
standard 3U chassis with forced airflow |
|
| Humidity 95% @ 40°C, non-condensing 95% @ 60°C, non-condensing | |
| Vibration 2G rms |
| Part Number | Width | Ports | GbE Ports | 10 GbE Ports | ||
| Front Panel | To Rear Backplane P6 | Front Panel | To Rear Backplane P6 | |||
| MIC-3850-B1S1 | 4HP | M12 | 3 | 3 | 1 | 3 |
| MIC-3850-B3D1 | 8HP | M12 | 7 | 3 | 0 | 0 |
| MIC-3850-A3D1 | 8HP | RJ45 | 7 | 3 | 0 | 0 |
