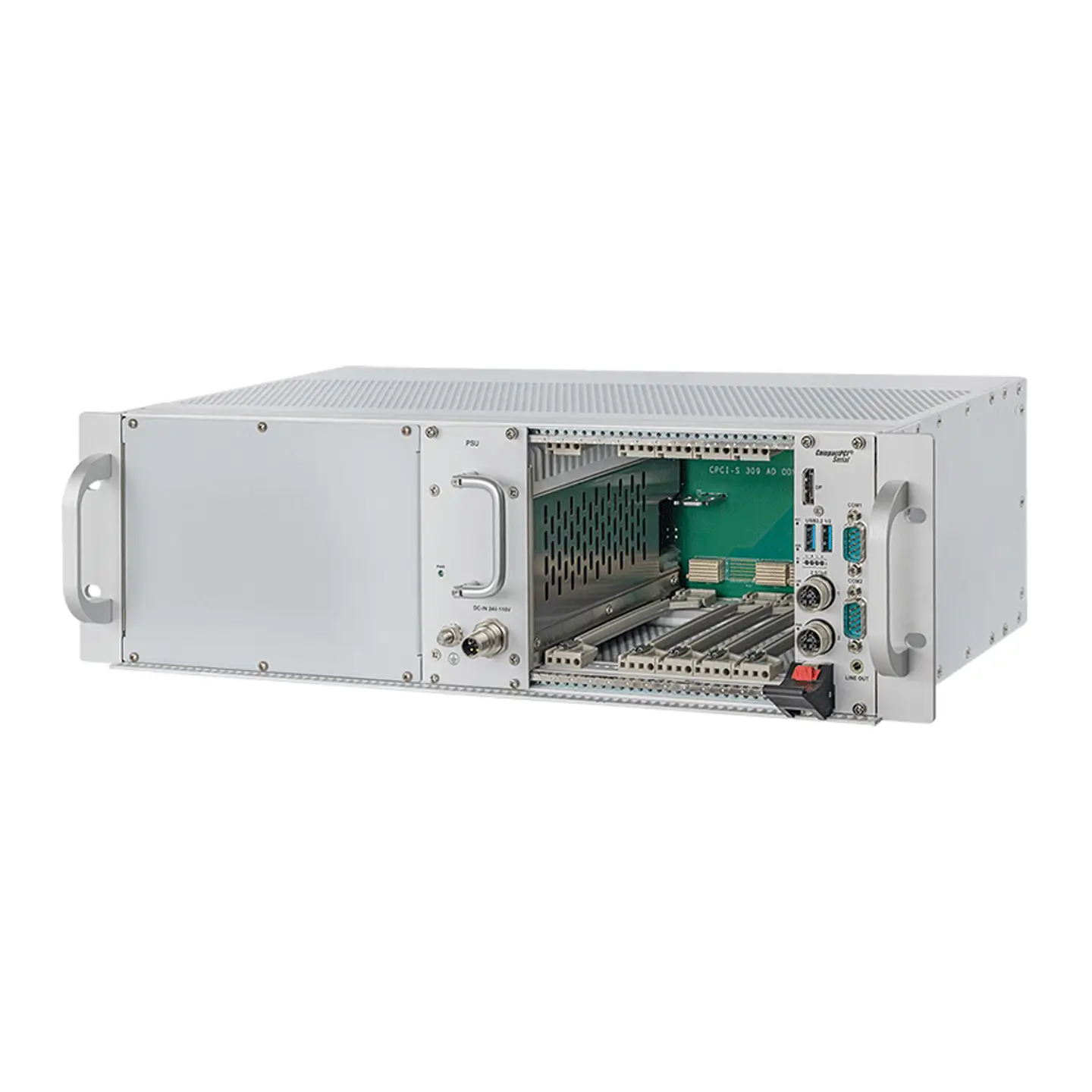

System Chipset |
CPU | Intel Atom® X7835RE |
| Max Turbo Frequency | 3.6GHz | |
| Cache | 6MB | |
| Cores/TDP | 8C/12W | |
| ECC | Support | |
| BIOS | AMI 256Mb SPI flash | |
|
Memory |
Technology | DDR5 4800 MT/s, ECC |
| ECC | support | |
| Max. Capacity | 16GB on-board | |
|
Graphics |
Controller | Intel® UHD Graphics |
| I/O connector | 1 x DisplayPort | |
| Resolution | 3840 x 2160@60Hz | |
|
Ethernet |
Interface |
Up to three Ethernet in total
2 x 2.5GBASE-T M12 on front panel of CPU board 1 x 2.5GBASE-T to backplane Slot 8 |
| Controller | Intel i226IT 2.5Gbps Ethernet Controller | |
|
Storage |
Mode | SATA 3.0/ PCIe 3.0 |
| Channels | 1 x onboard 2280/2242 M.2 type module (M-key socket) 1 x SATA 3.0 to backplane Slot 4 | |
|
Front I/O |
USB | 2 x USB3.2 with gen1 speed |
| LAN | 2 x 2.5GBASE-T M12, With TSN/TCC function | |
| COM | 2 x COM, default RS232 mode, RS422, RS485 mode can be selected in BIOS setting | |
| Audio | 1 x Line Out | |
|
Front LEDs |
CPU board:
1 x blue LED for hot swap 1 x green LED for PWR 1 x green LED for master/drone 1 x yellow LED for HDD 2 x green/orange LEDs for LAN speed(green indicates 2.5Gbps; orange indicates 1Gbps) 3 x green LEDs for LAN activity Power board: 1 x green LED for PWR |
|
| Buttons | System reset button |
|
CompactPCI Serial Backplane Resources |
PCIe |
PCIe Gen III speed
1 x PCIe 3.0 x1 to backplane slot 3 1 x PCIe 3.0 x1 to backplane slot 4 1 x PCIe 2.0 x1 to backplane slot 5 1 x PCIe 2.0 x1 to backplane slot 6 |
|
| SATA | SATA Gen III speed
1 x SATA 3.0 to backplane slot 4 |
||
|
USB |
4 x USB2.0 @ 480MHz speed 1 x USB2.0 to backplane slot 3 1 x USB2.0 to backplane slot 4 1 x USB2.0 to backplane slot 5 1 x USB2.0 to backplane slot 6 | ||
| GbE | 1 x 2.5 GbE to backplane slot 8 | ||
| BIOS | Boot Options | SATA, USB, network(PXE) | |
| Watchdog Timer | Output | Local reset | |
| Interval | Programmable 1s~255s | ||
| Operating System | Compatibility | Windows 11, Windows 10, Ubuntu 22.04, Vxworks | |
|
Power |
Input Voltage | 24-110VDC power input, compliant with EN50155 | |
| Output Wattage | 150W (Ta 55°C, fanless) 70W (Ta 70°C, fanless) | ||
| Connector | 1 x M12 K-Coded 5 pin | ||
| Mechanical | Dimension | 482.6 x 132.55 x 200 mm | |
| Weight | 5.0 Kg | ||
|
Environment |
Operating | Non-operating | |
| Temperature | -40 ~ 70 °C (-40 ~ 158 °F) | -40 ~ 85 °C (-40 ~ 185 °F) | |
| Humidity | 95% @40 °C, non-condensing | 95 % @ 60 °C, non-condensing | |
| Vibration | 2Grms | ||
| Shock | 10 G, 11ms, each axis three times, operation mode | ||
| Certification | Conformance | FCC Class A, CE, RoHS | |
| Architecture Compliance | PICMG® CompactPCI® Serial | ||
|
EN 50155 Compliance |
Operating temperature classes | EN 50155:2021 OT4 (-40 ~ 70 °C) | |
| Shock and Vibration | EN 61373 body mount class B | ||
| Interruptions of Voltage Supply | Class S2: 10ms interruptions | ||
| Supply Change Over | Class C1: at 0.6Un during 100ms without interruptions | ||
| EMC | EN 50121-3-2 | ||
| Fire protection | EN 45545-2: 2020+A1: 2023 HL3 | ||
| Part Number | Processor | Onboard RAM | ECC | Ethernet
M12 X-Coded |
USB 3.2 | COM | DP port | Line Out | M.2 slot | PCIe/SATA/Ethernet expansion slot |
| MIC-336S1-D1 | Intel® Atom X7835RE | 16GB | Yes | 2 | 2 | 2 | 1 | 1 | 1 | 5 |
| Part Number | Description |
| FRU-ITAPWR-0004 | External M12 K-Coded 5 pin Female power cable |
| 1960117152S001 | 3U 4HP Blank Panel for CPCI Anodizing |
| 1960117153S001 | 3U 8HP Blank Panel for CPCI Anodizing |
| Peripheral board | Description |
| MIC-3860 | 3U CPCI-Serial 4 RJ45/4 M12 2.5 Gbps LAN board |
| MIC-3850 | 3U CPCI-Serial RJ45/M12 Ethernet Switch board |
| MIC-3820 | 3U CPCI-Serial 2.5’’ SSD carrier board |
| MIC-3811 | 3U CPCI-Serial dual mini PCIe carrier for i-door |
| MIC-3840 | 3U CPCI-Serial COM obard |
| MIC-3954D | 3U CPCI-Serial quad M.2 carrier board for 5G, Wi-Fi module |
| MIC-3954E | 3U CPCI-Serial quad miniPCIe carrier board |
| MIC-3954F | 3U CPCI-S 4 x USB typeA, 1 x M.2 E key carrier board |
| pin | Signal Name | pin | Signal Name |
| 1 | V+ | 3 | V- |
| 2 | V- | 4 | V+ |
| PE | Earth ground |
