| Backplane | CPCI-Serial backplane 10-Slot, Systemx1, Peripheralx6, power slot x 2,blank slot x 1, no RIO | ||
|
support |
MIC-300B0-A3S1 | MIC-300B1-C3S1 | |
| Input Range | 24V-160VDC | 90-264VAC | |
| Output Wattage | 12V | Vo1: +12V, standby Vo2: +5V | |
| Output Current (typ.) | 12.5A | Vo1: 25A, standby Vo2: 2.5A | |
| Output Wattage | 150W (Ta 55°C,fanless) 70W (Ta 70°C,fanless) | 312W (Ta 55°C, Cooling 200LFM, Typ 110V input) 185W (Ta 70°C, Cooling 200LFM, Typ 110V input) | |
| Power Supply Environment | Operating | Non-Operating | |
| Temperature | -40~ 70°C (32 ~ 158° F) | -40 ~ 85°C (-104 ~ 185°F) | |
| Humidity | 95% @ 40°C, non-condensing | 95% @ 60°C, non-condensing | |
| Shock | 10G, 11ms, each axis three times | ||
| Vibration | 2G rms | ||
| Physical Characteristics (Dimensions (W x H x D)) | 482.6 x 132.55 x 200 mm | ||
|
Safety/EMC |
Emissions | EN50121-3-2/ EN55032 class A/B | EN55032, FCC Class B |
| ESD | EN61000-4-2, air±8kV, contact±6kV, Class A | EN61000-4-2, air±8kV, contact±6kV, Class A | |
| Radiated immunity | EN61000-4-3, 20V/m, Class A | EN61000-4-3, 10V/m, Class A | |
| Fast transient | EN61000-4-4, ±2kV, Class A | EN61000-4-4, ±2kV, Class A | |
| Surge | EN61000-4-5, ±2kV, Class A | EN61000-4-5, ±2kV, Class A | |
| Conducted immunity | EN61000-4-6, 10Vrms, Class A | EN61000-4-6,10Vrms, Class A | |
| Magnetic field immunity | EN61000-4-8, 10 A/m, Class A | EN61000-4-8, 10 A/m,, Class A | |
| Hold_up time | 30ms | 18ms | |
| Compliance | PICMG® CompactPCI® Serial R2.0 | ||
| PN | Description | Chassis Slot QTY | Backplane slot | Power | Backplane QTY | Fan | RIO | Dimensions (W x D x H) |

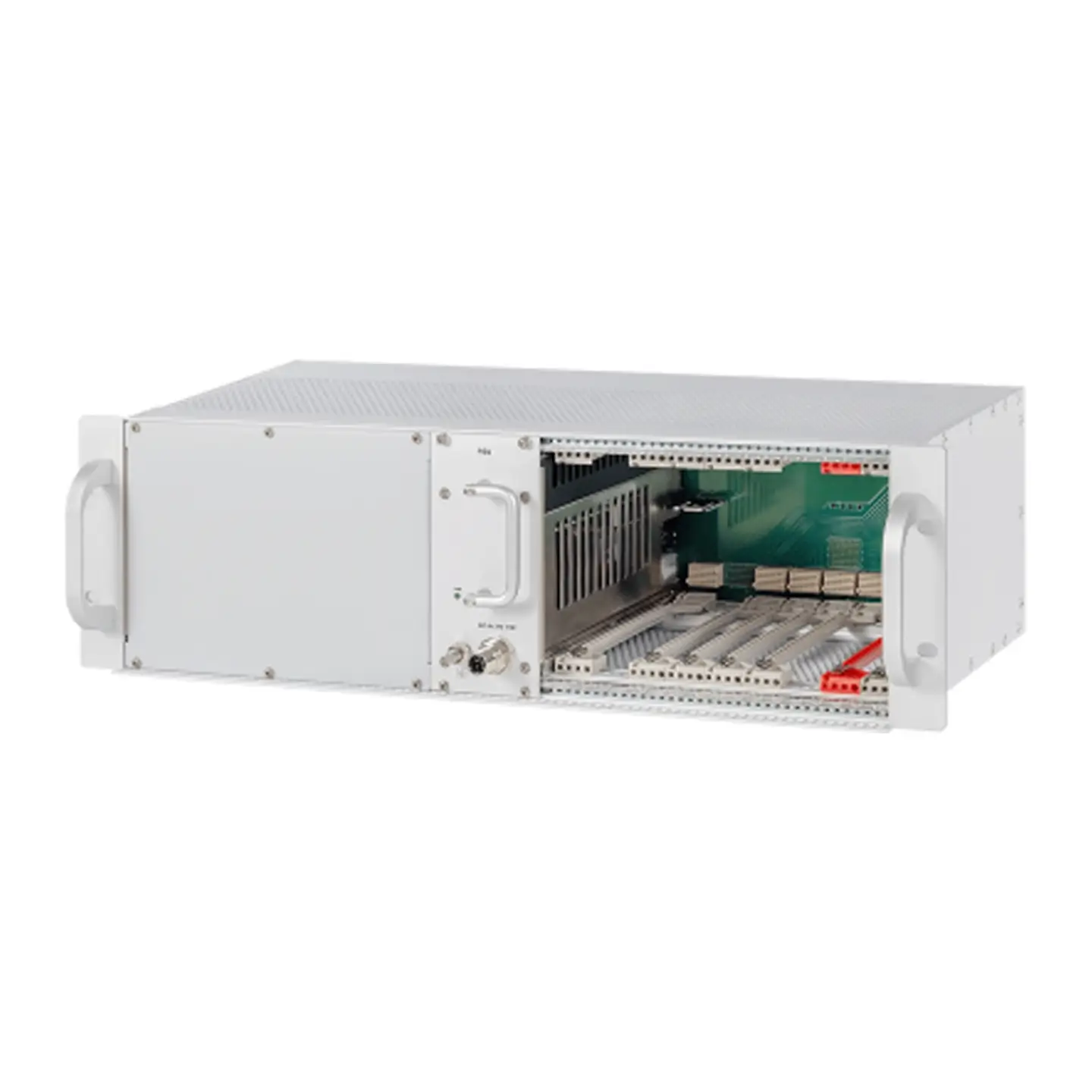

| MIC-300B0-A3S1 | MIC-300B 3U CPCI-S 84HP fanless, 150W
power module |
21 | 10 | 1*150W DC to DC | 1 | × | × | 482.6 x 200 x 132.50 mm |
| MIC-300B1-C3S1 | MIC-300B 3U CPCI-S 84HP fanless 300W AC
power supply |
21 | 10 | 1*312W AC to DC | 1 | × | × | 482.6 x 200 x 132.50 mm |
| Part Number | Description |
| 1960117152S001 | 3U 4HP Blank Panel for CPCI Anodizing |
| 1960117153S001 | 3U 8HP Blank Panel for CPCI Anodizing |
| 1700034298-01 | External M12 K-Coded 5 pin Female power cable 100cm |
| pin | Signal Name | pin | Signal Name |
| 1 | V+ | 3 | V- |
| 2 | V- | 4 | V+ |
| PE | Earth ground |
| Models | Description |
| MIC-336 | 3U CPCI-S CPU board |
| MIC-3954D | 3U CPCI-Serial quad M.2 carrier board |
| MIC-3954E | 3U CPCI-Serial quad Mini-PCIe carrier board for Wi-Fi/LTE/ GPS module |
| MIC-3954F | 3U CPCI-S 4 x USB typeA, 1 x M.2 E key carrier board |
| MIC-3820 | 3U CPCI-Serial 2.5’’ SSD carrier board |
| Models | Description |
| MIC-3811 | 3U CPCI-Serial dual mini PCIe carrier for Wi-Fi/BT/i-Door module |
| MIC-3860 | 3U CPCI-Serial 4 x RJ45/4 x M12 2.5 Gbps LAN board |
| MIC-3840 | 3U CPCI-Serial 8-port serial communication board |
| MIC-3850 | 3U CPCI-S LAN switch board |
