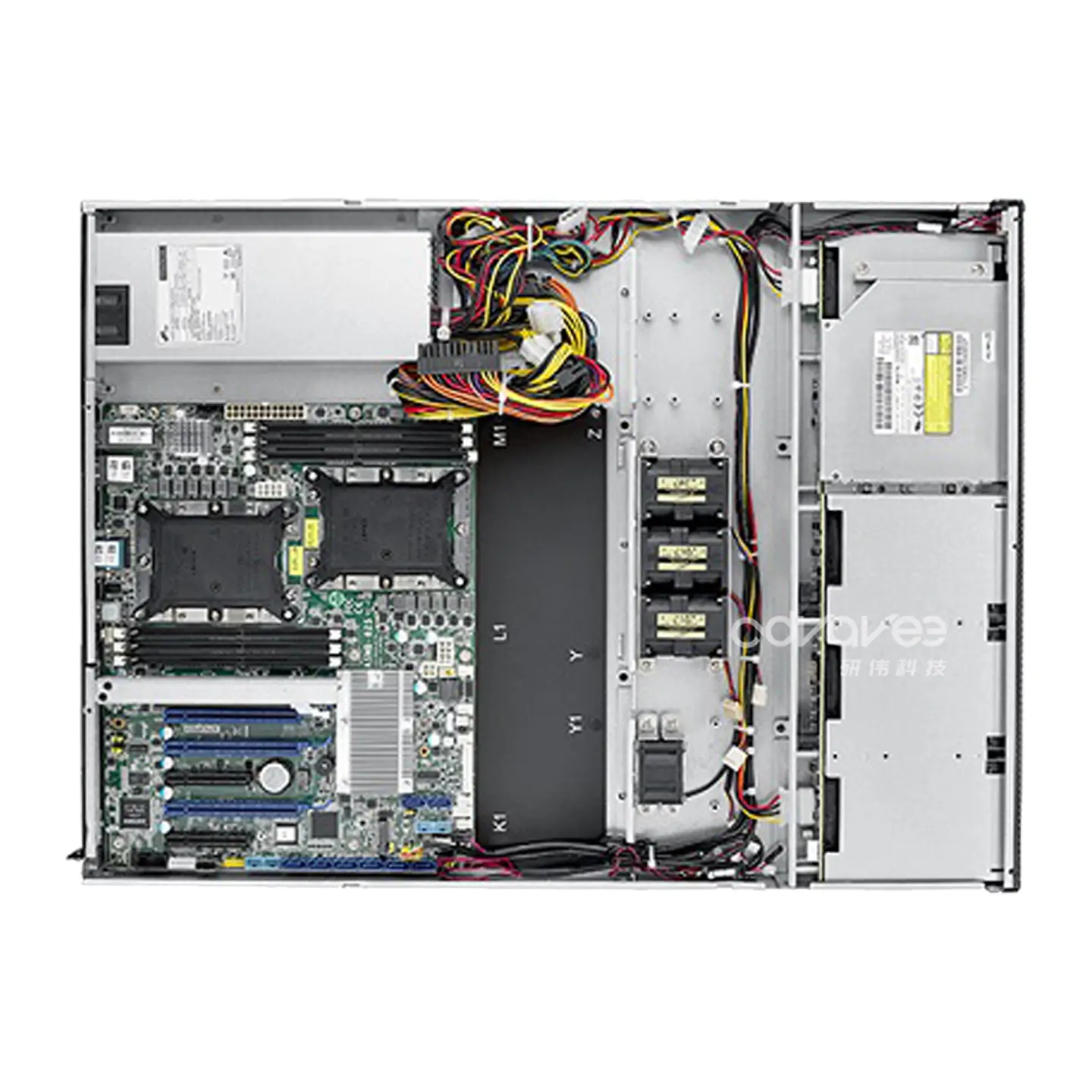

研华HPC-8108 是一款用于EATX/ATX服务器板的1U存储机箱，带有8个热插拔驱动器托架，支持12Gb/s SASIII和防振风扇设计，单前USB2.0端口
分类： 1U 工业服务器机箱, 5G 和边缘运算服务器, 云、网络和服务器, 服务器机箱 标签： HPC-8108
如需帮助,请联系我们
免费电话：400- 880- 8951
邮箱：advavee@outlook.com
咨询客服：一站式采购
批量采购定制咨询，请发送您的需求，我们将立即回复。
Specifications
|
Drive Bay |
External | ||
| Slim Optical Drive | 1 | ||
| 2.5" | 8 (Hot-swap)Note1,2 | ||
| Cooling | Fan | 3 (4056/34CFM) + 1 (4028/23CFM) high speed fan | |
| Air Filter | - | ||
| Front I/O Interface | USB | 1 x USB2.0 | |
| Miscellaneous | LED Indicators | LAN1, LAN2, HDD, Power, and Information LED | |
| Expansion Slot | 1 x Full Height / Half Length add-on card | ||
|
Environment |
Operating | Non-Operating | |
| Temperature | 0 ~ 35 °C (32 ~ 95 °F) | -40 ~ 60 °C (-40 ~158 °F) | |
| Humidity | 10 ~ 95% @ 40 °C, non-condensing | 10 ~ 95% @ 60 °C, non-condensing | |
| Vibration (5 ~ 500 Hz) | 0.25 Grms | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) | ||
| Physical Characteristics | Dimensions (W x H x D) | 438 x 43.9 x 597 (17.24" x 1.73" x 23.5") | |
| Weight | 9 kg (without hard drivers) | ||
Ordering Information
| Part Number | Built-in PSU |
| HPC-8108-65RA1 | 1+1 650W redundant power supply |
| HPC-8108-85ZA1 | Single Flex 850W |
Packing List
| Part Number | Description | Quantity |
| 9661310000E | 2.5" HDD Trays (HDD Box) | 8 |
| 1700028794-01 | 4Pin extended FAN Cable (Accessory Box) | 4 |
| 1750007501-01 | 40 x 40 x 56 System Fan (Pre-installed) | 3 |
| 1750006764-01 | 40 x 40 x 28 System Fan (Pre-installed) | 1 |
| XSUN-TD15-0128-01 XSUN-TG15-0650-01 | Redundant PSU 650W
(Only pre-installed in HPC-8108SE-65RA1) |
1
2 |
| XHPC-FSP85050FGPH3 | Single Flex 850W PSU
(Only pre-installed in HPC-8108SE-85ZA1) |
1 |
Optional Accessories
| Part Number | Description | Quantity |
| 1700029584-01 | Mini SAS HD 8643 to 4 ports SATA (55cm) | 2 |
| 1700025064-01 | Internal SAS cable (12G) SFF8643 to SFF8643, 60cm Note3 | 2 |
| 1700025439-01 | Internal SAS cable (6G) SFF8643 to SFF8087, 60cm Note3 | 2 |
| 1700026158-01 | Type-Y of system fan cable (4-pin) | 2 |
| AIMB-RF10F-01A1E | 1U riser card with 1 PCIe x16 expansion | 1 |
| 968DE00065 | 22" Slide Rail Kit for HPC-8108 | 1 |
Note 2 : If use MB's SATA ports without RAID card for storage device, please must purchase 2pcs of "1700029405-01" for cabling.
Note 3: If use 8port of 12Gb/s SASIII RAID or HBA card, please must purchase 2pcs of 1700025064-01. If use 8port of 6Gb/s SASII RAID or HBA card, please must purchase 2pcs of 1700025439-01.
Note 4: HPC-8108 does not support AIMB series motherboard.
HPC-8108
