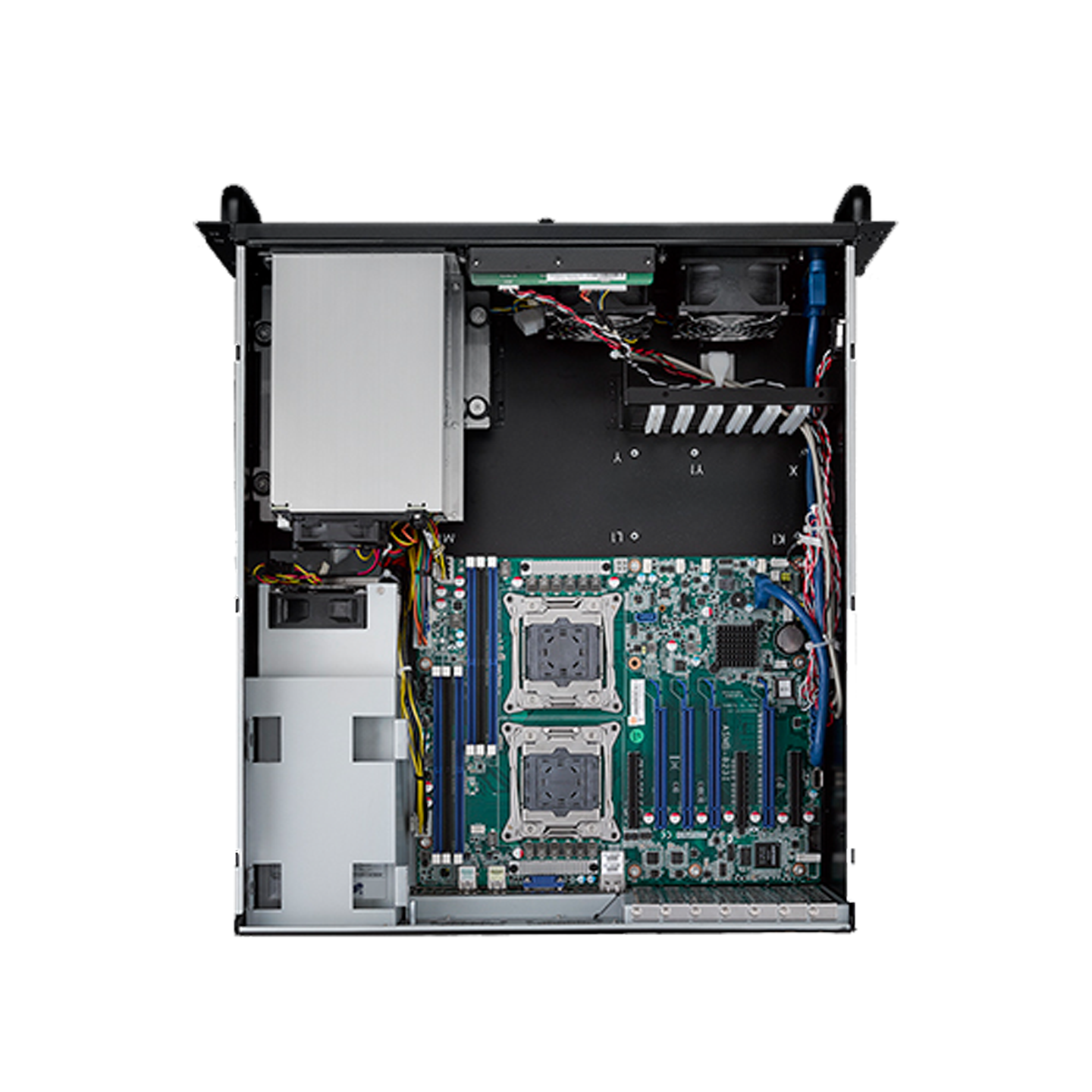

研华HPC-7320 是一款3U用于EATX / ATX / MicroATX主板的短机箱,机架式/壁挂式/塔式底盘，支持Flex ATX电源，1U，2U 80Plus单电源或冗余电源，前置系统风扇，维护时，无需打开顶盖
如需帮助,请联系我们
免费电话：400-880-8951
公司邮箱：advavee@outlook.com
咨询客服：一站式采购
批量采购定制咨询，请发送您的需求，我们将立即回复。
Specifications
|
Drive Bay |
External | Internal | |
| Slim Optical Drive | 1 | - | |
| 3.5" | - | 2 | |
| Hot Swap | 2 SASII/SATAIII (3.5" or 2.5")* | ||
| Cooling | Fan | 2 (8cm/57CFM) + 1 (6cm/27.72CFM) | |
| Air Filter | Yes | ||
| Front I/O Interface | USB3.0 | 2 | |
| Miscellaneous | LED Indicators | Power, HDD, LAN1, and LAN2 | |

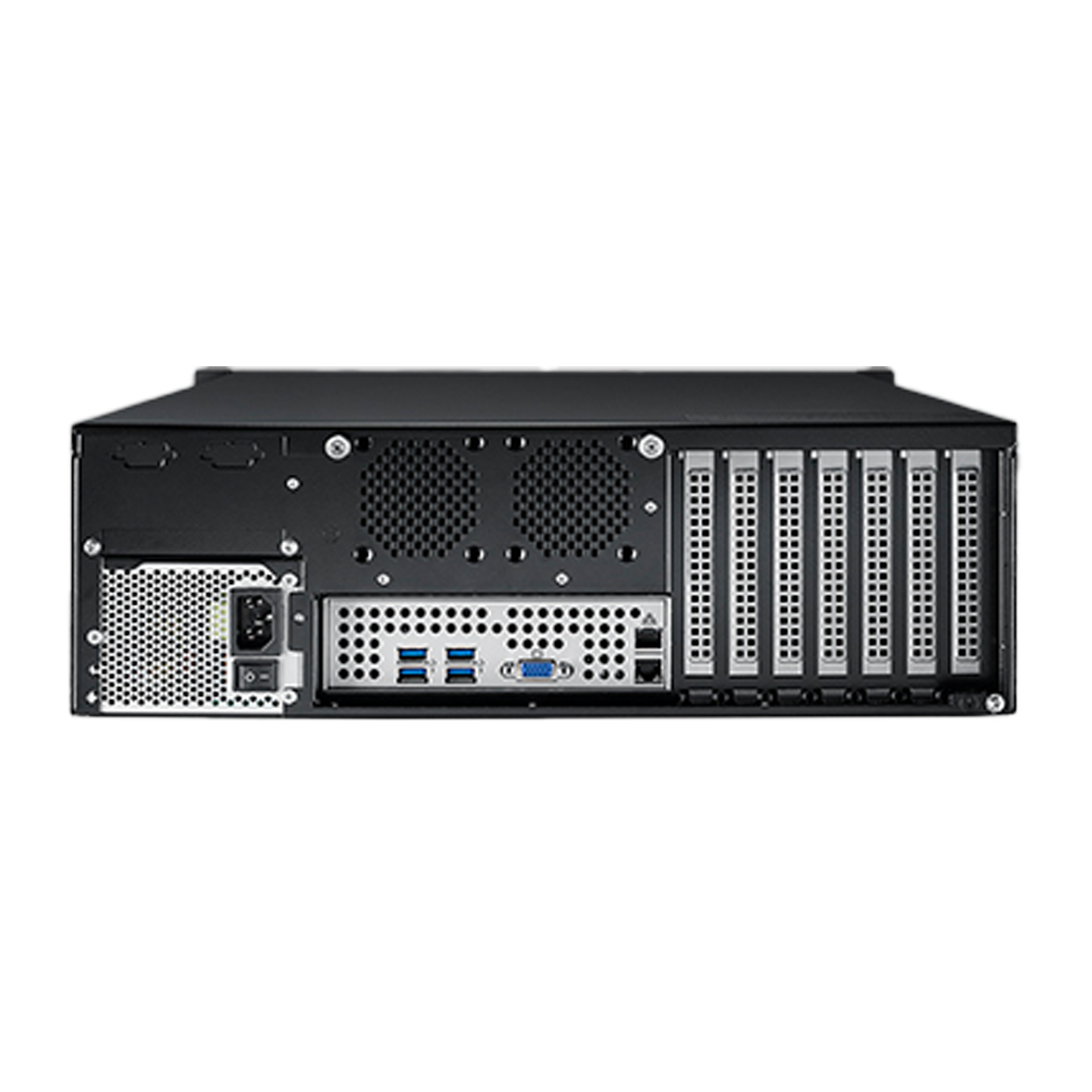

| Rear Panel | Two 9-pin D-Sub | ||
|
Environment |
Operating | Non-Operating | |
| Temperature | 0 ~ 40 °C (32 ~ 122 °F) | -40 ~ 70 °C (-40 ~ 156 °F) | |
| Humidity | 10 ~ 95% @ 40 °C, non-condensing | 10 ~ 95% @ 60 °C, non-condensing | |
| Vibration (5 ~ 500 Hz) | 1 Grms | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) | ||
| Physical Characteristics | Dimensions (W x H x D) | 426.4 x 132.2 x 480 mm (16.79" x 5.2" x 18.9") | |
| Weight | 12 kg |
Ordering Information
| Part Number | Description |
| HPC-7320MB-00XE | Without PSU, with ATX switch |
Packing List
| Part Number | Description | Quantity |
| 1960002043T001 &
1960004574T001 |
Wall mount bracket | 1 |
| 1960061378T001 | FATX power rear bracket | 1 |
| 1960069262N001 | 1U power rear bracket | 1 |
| 1990025044T000 | Door filter | 1 |
| 1750008101-01 | 8cm system fan | 2 |
Note:
Power Supply Options
| Part Number | 80 Plus Grade | Wattage | Type | Input |
| PS8-500FATX-GB | Gold | 500W | Single | AC 100 ~ 240 V
(full range) |
| XHPC-FSP85050FGPH3 | Platinum | 850W | Single | AC 100 ~ 240V
(full range) |
| 96PSRM-A550WCRP | Platinum | 550W | (1+1)
Redundant |
AC 100 ~ 240 V
(full range) |
| XHPC-FSP-FC210CE | ||||
| 96PSR-A800WCRP | Platinum | 800W | (1+1)
Redundant |
AC 100 ~ 240 V
(full range) |
Note:
For purchasing 96PSRM-A550WCRP redundant power solution, you need to include 2 x 96PSRM-A550WCRP and 1x XHPC-FSP-FC210E
Optional Accessories
| Part Number | Description |
| 2130015257T000 | CPU cooler box |
| 9680006905 | 26" Slide Rail |
| 96CB-SATAPOWER-6P2 | SATA power wire 6-pin to big 4-pin (for slim ODD) |
| 1700011592 | Front dual USB2.0 cable |
| 1751000540-01 | 8038mm High speed system fan for GPU server solution |
| 1700025255-11 | System fan extension cable as configuring 1751000540-01 system fan |
NOTE:
When insert SASIII (12Gb/s) HDD into the hot-swap HDD bay, please manually set the speed at SASII (6Gb/s) due to the hardware specification.
