Specifications
|
Drive Bay |
External | Internal | |
| Slim Optical Drive | 1 | - | |
| 3.5" | 3 | - | |
| Cooling | Fan | 2 (12cm/150CFM) | |
| Air Filter | - | ||
| Front I/O Interface | USB3.0 | 2 | |
| Miscellaneous | LED Indicators | Power | |
| Rear Panel | Two USB reserved ports | ||
|
Environment |
Operating | Non-Operating | |
| Temperature | 0 ~ 40 °C (32 ~ 104 °F) | -40 ~ 60 °C (-40 ~ 140 °F) | |
| Humidity | 95% @ 40 °C, non-condensing | 95% @ 60 °C, non-condensing | |
| Vibration (5 ~ 500 Hz) | 1 Grms | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) | ||
| Physical Characteristics | Dimensions (W x H x D) | 267.1 x 458 x 500mm (10.52" x 18.03" x 19.69") | |
Ordering Information
| Part Number | Description |
| HPC-7000-50ZB | HPC-7000 Tower chassis w/ 500W SPS |
| HPC-7000-12ZB | HPC-7000 Tower chassis w/ 1200W SPS
(please purchase C19 power cord for 1200W PSU) |
Optional Accessories
| Part Number | Description |
| 96CB-SATAPOWER-6P2 | SATA power wire 6-pin to big 4-pin (for slim ODD) |
| 989K008734 | Convert module for dual 9.6mm(H) 2.5" HDDs in a 3.5" cage |
| IPC-DT-3120E | Mobile rack for converting a 3.5" drive bay to dual 9.6mm(H) 2.5" HDD trays |
| 1700026948-01 | USB 3.0 cable (30cm) for rear panel |
| 1700011592 | USB 2.0 cable (50cm) for rear panel |
| 1750009418-01 | 6cm system fan (20.78CFM) for rear panel |
Packing List
| Part Number | Description | Quantity |
| 1750008562-01 | 12cm system fan | 2 |
Note:
C19 Power Cord List
| Part Number | Description |
| 1700021723-02 | Power Cord UL 3P 15A 125V 183cm(IEC320-C19), USA
type |
| 1700023533-01 | Power Cord EU 3P 16A 250V 183cm, Europe type |
| 1700023534-01 | Power Cord BSI 3P 16A 250V 183cm, UK type |
| 1700023535-01 | Power Cord CCC 3P 16A 250V 183cm, China type |
| 1700023536-01 | Power Cord PSE 3P 20A 250V 183cm, Japan type |
| 1700033943-01 | Power Cord BSMI 3P 15A 125V 183cm, TW type |

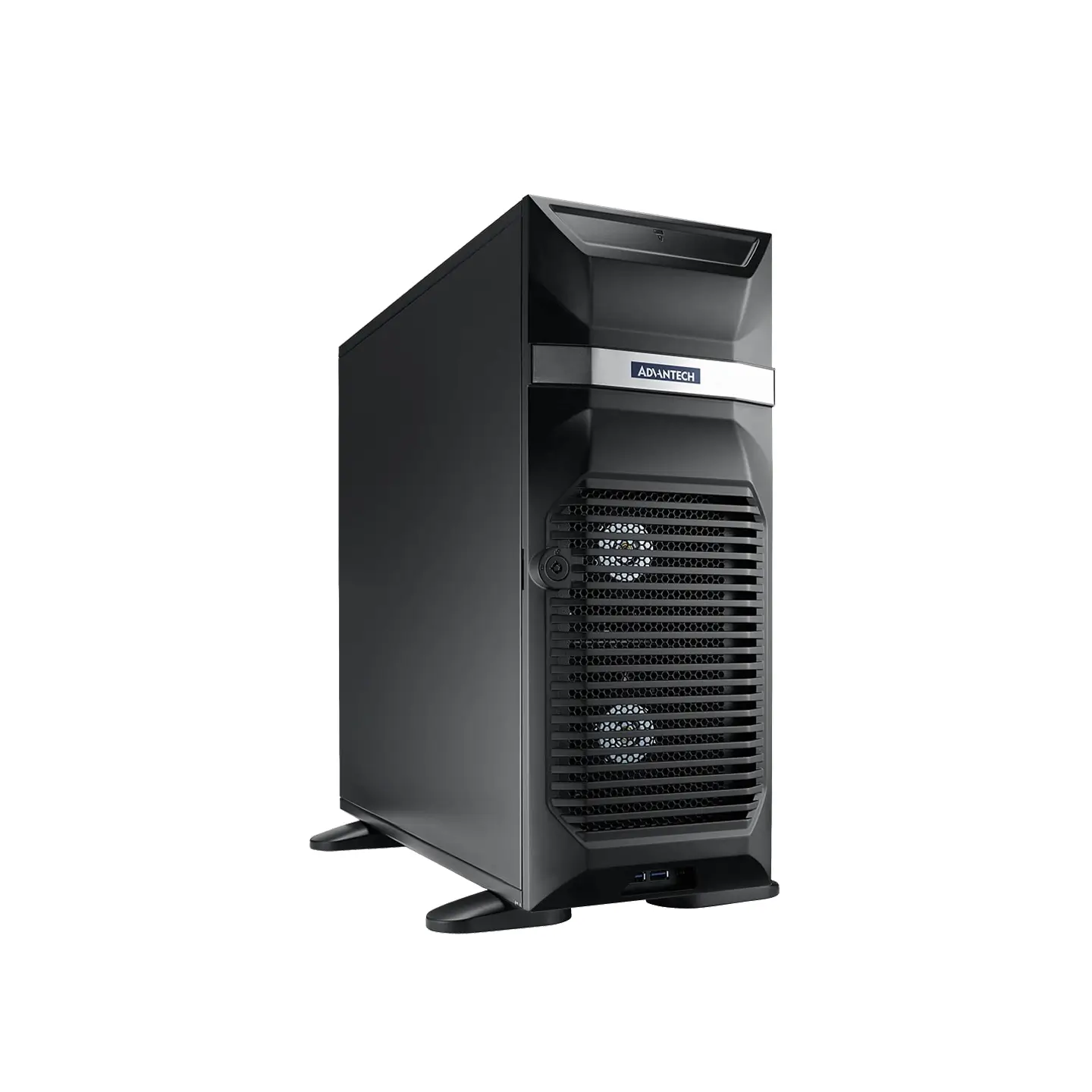

HPC-7000
