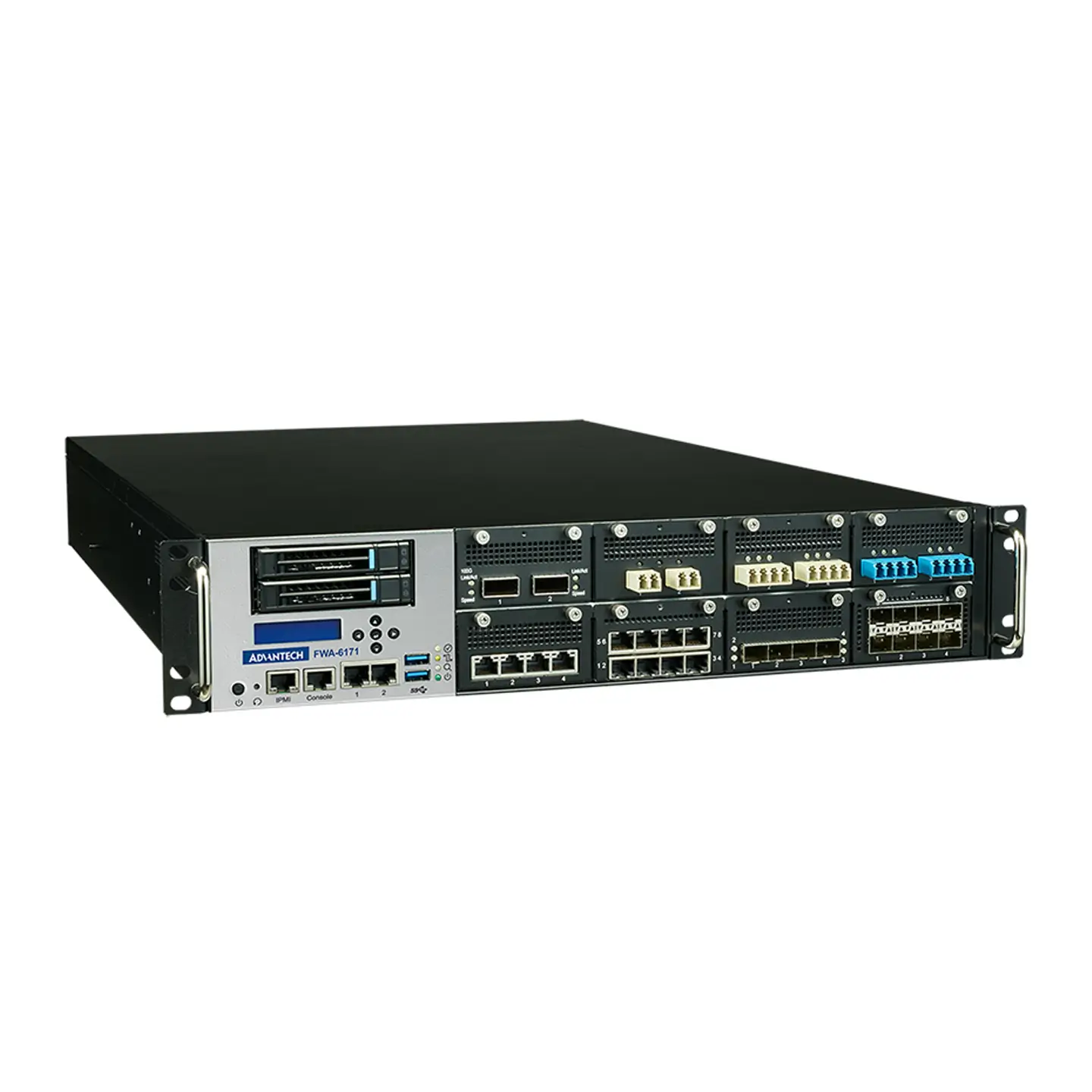

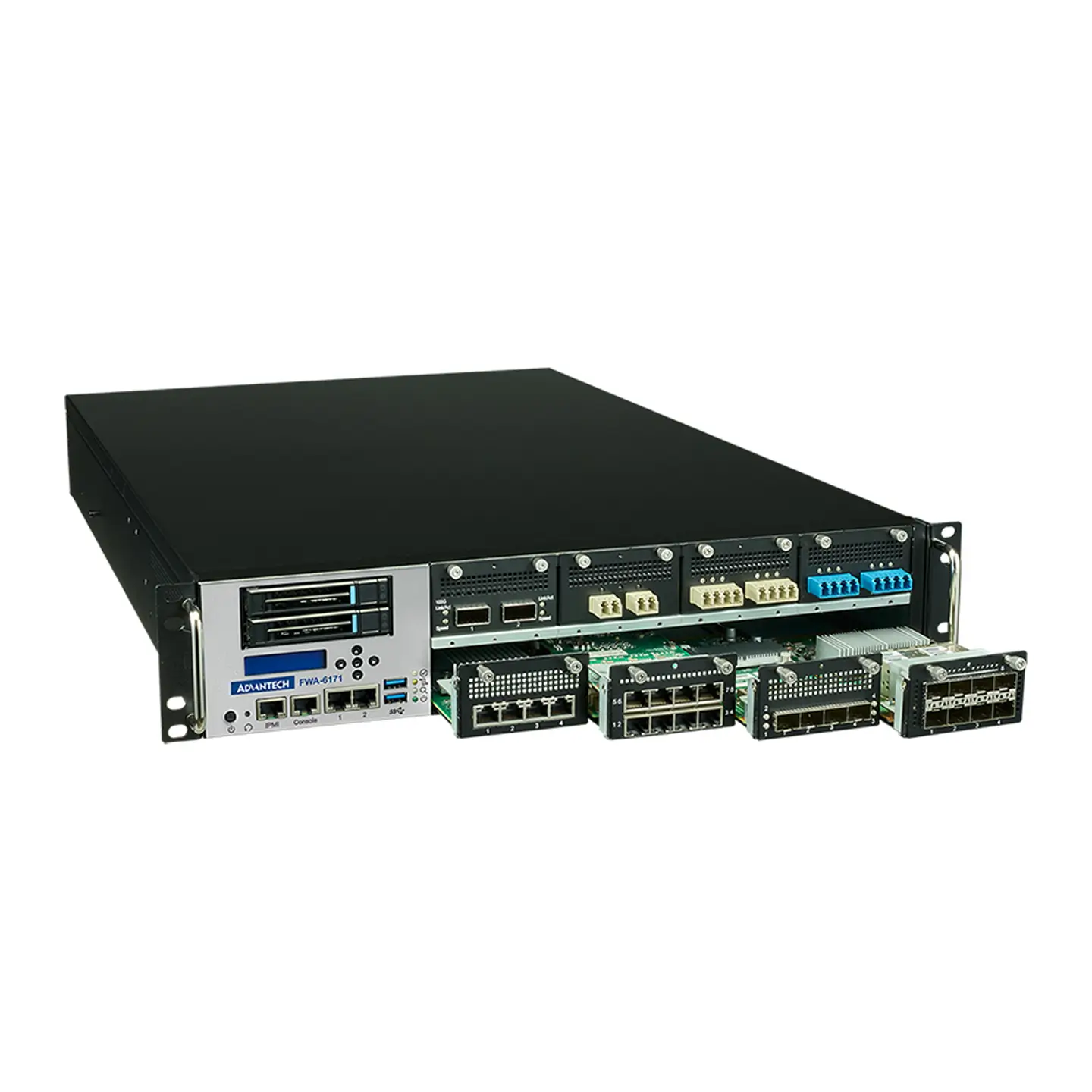

研华FWA-6171 是一款基于双路 Intel® 第3代 Xeon® 可扩展处理器的2U机架式网络应用平台，最高支持4个NMC插槽，兼容IPMI v2.0，具有web界面
如需帮助,请联系我们
免费电话：400-880-8951
公司邮箱：advavee@outlook.com
咨询客服：一站式采购
批量采购定制咨询，请发送您的需求，我们将立即回复。
Specifications
| System P/N | FWA-6171 | |
| Form Factor | 2U - Rack Mount | |
|
Processor System |
Processor | 2 x 3rd Gen. Intel® Xeon® Scalable Processors Platinum 8300, Gold 6300, Gold 5300, Silver 4300 |
| Max. up to 235W | ||
| Core Number | Up to 38 cores | |
| Frequency | Up to 3.6GHz | |
| L3 Cache | 1.5MB/core | |
| Chipset | C621A (without QAT) | |
| BIOS | AMI EFI 64Mbit | |
| Virtualization | VT-d | |
|
Memory |
Technology | DDR4, 2666/2933/3200MHz |
| Max. Capacity | 2048GB (CPU0x16,CPU1x16) | |
| Socket | 32 x 288-pin RDIMM | |
| ECC Support | Yes | |
|
Networking |
Controller | 2 x Intel I210-AT, 1 x Realtek PHY |
| 1GbE | 2 x 1GbE RJ45 for management via Intel I210-AT, 1 x dedicated RJ45 for IPMI | |
| 10GbE | NA | |
| LAN bypass | LBP support by NMC | |
|
Expansion |
PCIex8 | 1 x FH/HL and 1 x HH/HL (option) |
| PCIex16 | 1 x FH/HL | |
| NMC | 8 x NMCs | |
| Storage | 2.5" HDD/SSD | Max. 2 x 2.5" HDD/SSD |
| M.2 SSD | 4 x M.2 2280 | |
|
I/O |
Console port | 1 (RJ45) |
| USB3.0 | 2 | |
| LED Indicator | 1 x PWR_LED,1 x Alert_ED,1 x Locate_LED, 1 x SW defined_LED | |
| VGA | Yes (D-sub) | |
| Others | 1 x Power button, 1 x SW define button | |
| TPM | Trust Platform Module | Modularized TPM(1.2), Option: TPM(2.0) |
| LCD Module | 16 x 2 graphic display, 5 buttons | |
|
Power Supply |
Power Type | CRPS Redundant AC PSU (redundant DC PSUs on request) |
| Watts | 1300W | |
| Input | AC 100 ~ 240 V @ 50 ~ 60 Hz, full range | |
| Connector | AC 3pin plug | |
|
Environment |
Operating Temperature (air flow 0.7 m/sec) | 0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature (W/packing) | -20 ~ 70° C (-4 ~ 158° F) and 40° C @ 95% RH Non-Condensing | |
| Vibration Resistance | with SATA HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis | |
| Shock Protection | with SATA HDD: 10G, IEC-60068-2-27, half sine, 11ms duration | |
| Cooling | 3 x system FAN with smart FAN control | |
|
Mechanical |
Construction | Iron |
| Mounting | 2U Rackmount | |
| Dimensions (W x H x D) | 438 x 88 x 680mm (17.24" x 3.46" x 26.77") | |
| Weight | 20Kg (G.W) | |
| OS support | Linux (CentOS, Red Hat, Ubuntu) | |
|
Advantech S/W Packages |
QuickStart Linux Image (CentOS based reference BSP) including
§ afru § ipmitool § LCD4Linux § Advanced LBP Utility § Intel DPDK § Intel QAT Individual packages: § Advanced LBP Library § DUI (Offline Diagnostics) |
|
| IPMI | Carrier Grade BMC, IPMI v2.0 compliant, with web interface, iKVM on request (Advantech IPMI Core) | |
| Certification | EMC/Safety | CE/FCC/VCCI/CB/UL/CCC |
Ordering Information
| Part Number | CPU | DDR4 | PCH | NMC slot | PCIe slot | HDD qty. | BMC | TPM | USB3.0 | MGMT port | LCM | Console | PSU |
|
FWA-6171-00A1R |
2 sockets for 3rd Gen. Intel® Xeon® Scalable Processors (up to 235W) |
32 |
C621A |
8 |
1x PCIEx16 (FH/HL) |
2 (2.5") |
Yes |
1.2 |
2 |
2 for Mgmt, 1 for IPMI |
Yes |
1 |
1300W AC |
Packing List
| Part Number | Description |
| 1700020691-01 | M CABLE D-SUB 9P(F)/RJ45 220cm |
Optional Power Supply List
| Part Number | Description |
| 96PSRM-D800WCRP | DC 800W PSU CRPS module |
Optional Accessories
| Part Number | Description |
| 1702002600 | Power cord 3P 180 cm, USA |
| 1702002605 | Power cord 3P 180 cm, Europe |
| 1702031801 | Power cord 3P 180 cm, UK |
| 1700000237 | Power cord 3P 180 cm, JP |
| 1700009652 | Power cord 3P 180 cm, China |
| 98923260J0E | TPM 2.0 |
| 968DE00067 | Slide rail |
