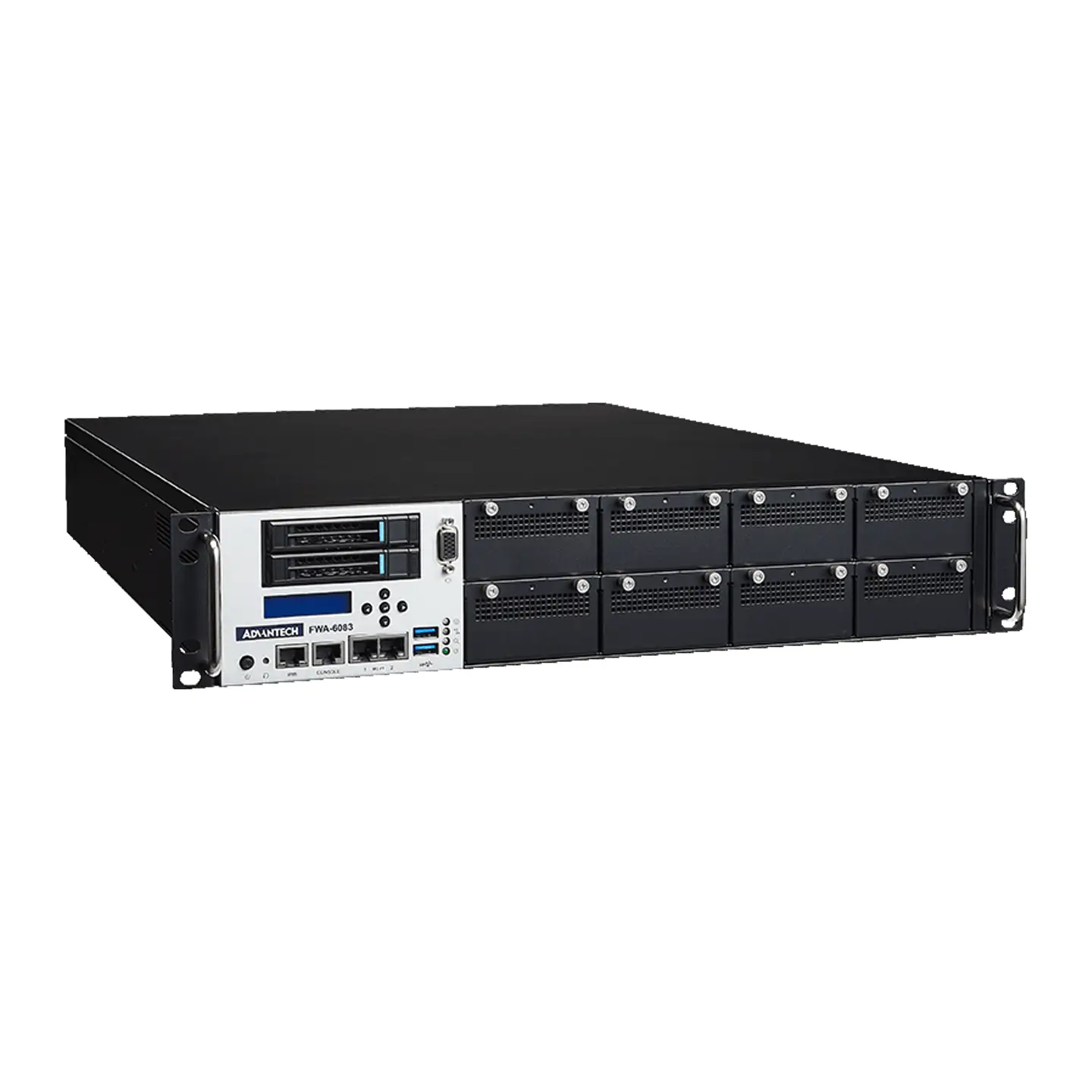

| System P/N | FWA-6083-00A1R | |
| Form Factor | 2U Rack Mount | |
|
Processor System |
Processor | 5th Generation AMD EPYC™ Processors |
| Core Count | Up to 192C | |
| Base Frequency | Up to 4.2 GHz | |
| BIOS | AMI UEFI | |
| Virtualization | ||
|
Memory |
Technology | DDR5, up to 6400 MT/s |
| Max. Capacity | 768 GB (64 GB per slot) | |
| Socket | 12 x 288-pin DIMM | |
| ECC Support | RDIMM | |
| Networking | Controller | 2 x Intel i210 |
| 1GbE | 2 x 1GbE RJ45 | |
| Expansion Slot | PCIe x16 | 3 x PCIe Gen5 x16 HH/HL |
| NMC | 8 x PCIe Gen5 x8 | |
| IPMI | IPMI 2.0 and Redfish compliant | |
| Storage | 2.5" Bay | 2 x External 2.5" SATA HDD/SSD (U.2 PCIe NVMe by inquiry) |
| M.2 2 x M.2 2280 M-Key for SATA SSD or PCIe Gen4 x4 NVME | ||
|
I/O |
Console | 1 x RJ45 type console |
| USB | 2 x USB 3.0 | |
| LED Indicator | 1 x Power LED, 1 x Alert LED, 1 x Locate LED, 1 x Software-defined LED | |
| Display | 1 x VGA port | |
| Button | 1 x Power button, 1 x Software-defined button | |
| Others | 1x dedicated 1GbE LAN for IPMI | |
| TPM | TPM 2.0 | |
| LCD Module | 16 x 2 graphic display, 5 buttons | |
|
Power Supply |
Power Type | AC Redundant CRPS (Option: DC Redundant CRPS) |
| Watts | 1200W | |
| Input | AC: 100-240V~, 12-7A, 50-60Hz (Option: DC -48V) | |
| Connector | AC 3pin plug | |
|
Environment |
Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature | -40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% Non-Condensing Humidity | |
| Vibration Resistance (Operation) | 5-500 Hz, 0.3 Grms, 3 axes, 1 hr/per axis | |
| Shock Protection (Operation) | 10 G, 11 ms | |
| Cooling | 4 x Hot swap 8038 mm fan | |
|
Mechanical |
Construction | SGCC |
| Mounting | Rackmont | |
| Dimensions (W x H x D) | 438 x 88 x 600 mm (17.2" x 3.4" x 23.6") | |
| Weight | 15kg (33.06 lbs) | |
| OS Support | Linux (CentOS, Red Hat, Ubuntu, Fedora) | |
|
Advantech S/W Packages |
1. ALBPCU
2. Server iManager (Linux base) 3. Quick Start Linux Image |
|
| Certification | EMC/Safety | CE, FCC, CB, UL, CC |
| Part Number | Processor | DDR5 | NMC Slot | PCIe Slot | Storage Bay | USB3.0 | IPMI port | Console Port | LAN Port 1G RJ45 | System Fan | PSU |
| FWA-6083-00A1R | Single socket, 5th FWA-6083-00A1R Generation AMD
EPYC™ processors |
12 | 8 | 3 | 2 (Default: SATA) | 2 | 1 | 1 | 2 | 4 | 2 |
| Part Number | Description | Quantity |
| 1700020691-01 | Console cable D-SUB 9P(F)/RJ45 220cm | 1 |
| 1970005835T001 | CPU Heatsink | 1 |
| 1930007259-01 | Screws for mounting ear | 4 |
| 1960083854T000 | 1700009652 | Power cord 3P 180 cm, China |
| Part Number | Description |
| 1702002600 | Power cord 3P 180 cm, USA |
| 1702002605 | Power cord 3P 180 cm, Europe |
| 1702031801-11 | Power cord 3P 180 cm, UK |
| 1700009652 | Power cord 3P 180 cm, China |
| 1930008928 | Screws for slide rail installation (Order 10 pieces per system) |
| 968DE00026 | Slide rail for post to post dimension 558.9 - 850.9mm |
| 1700027334-01 | USB for RJ45 console cable, 190cm |
