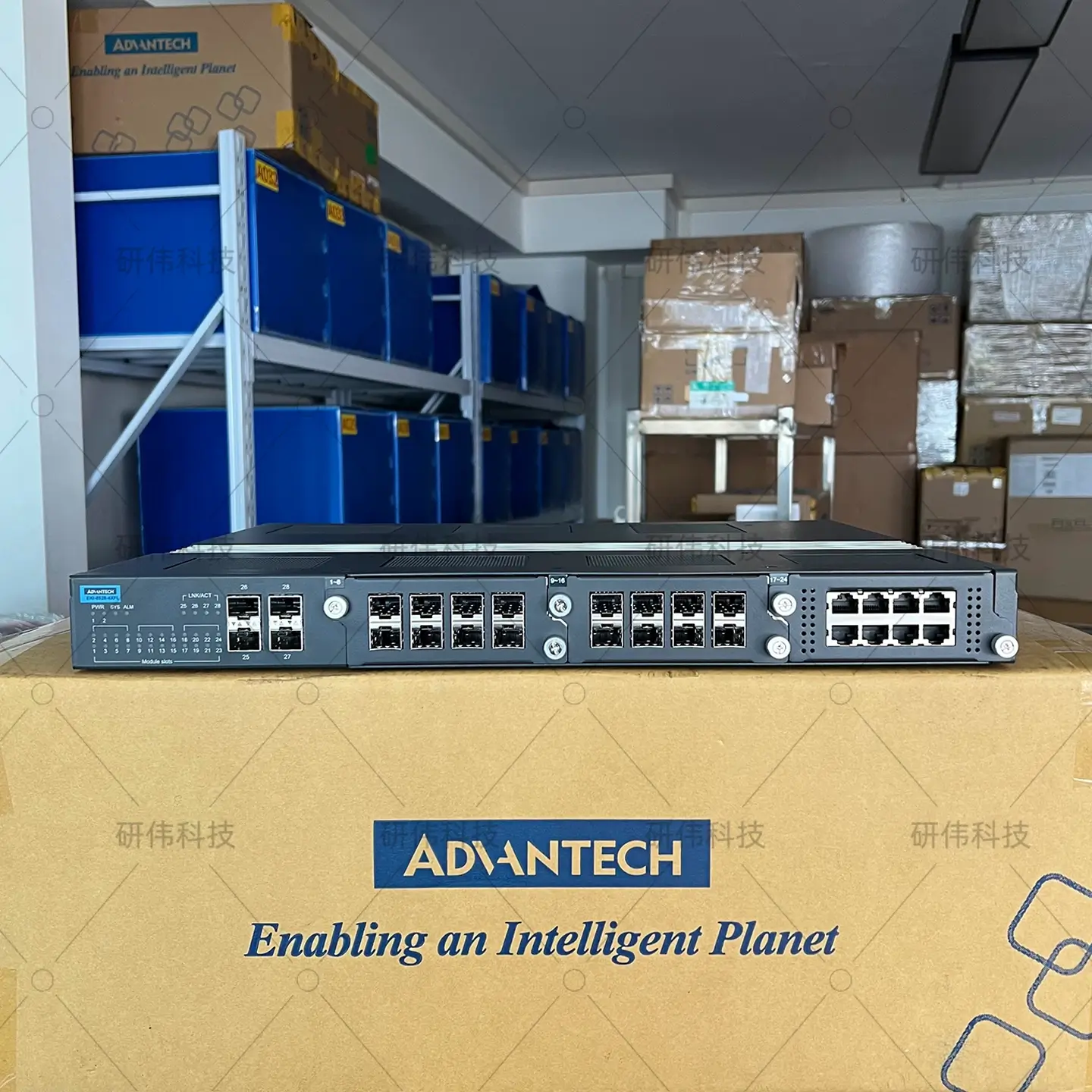

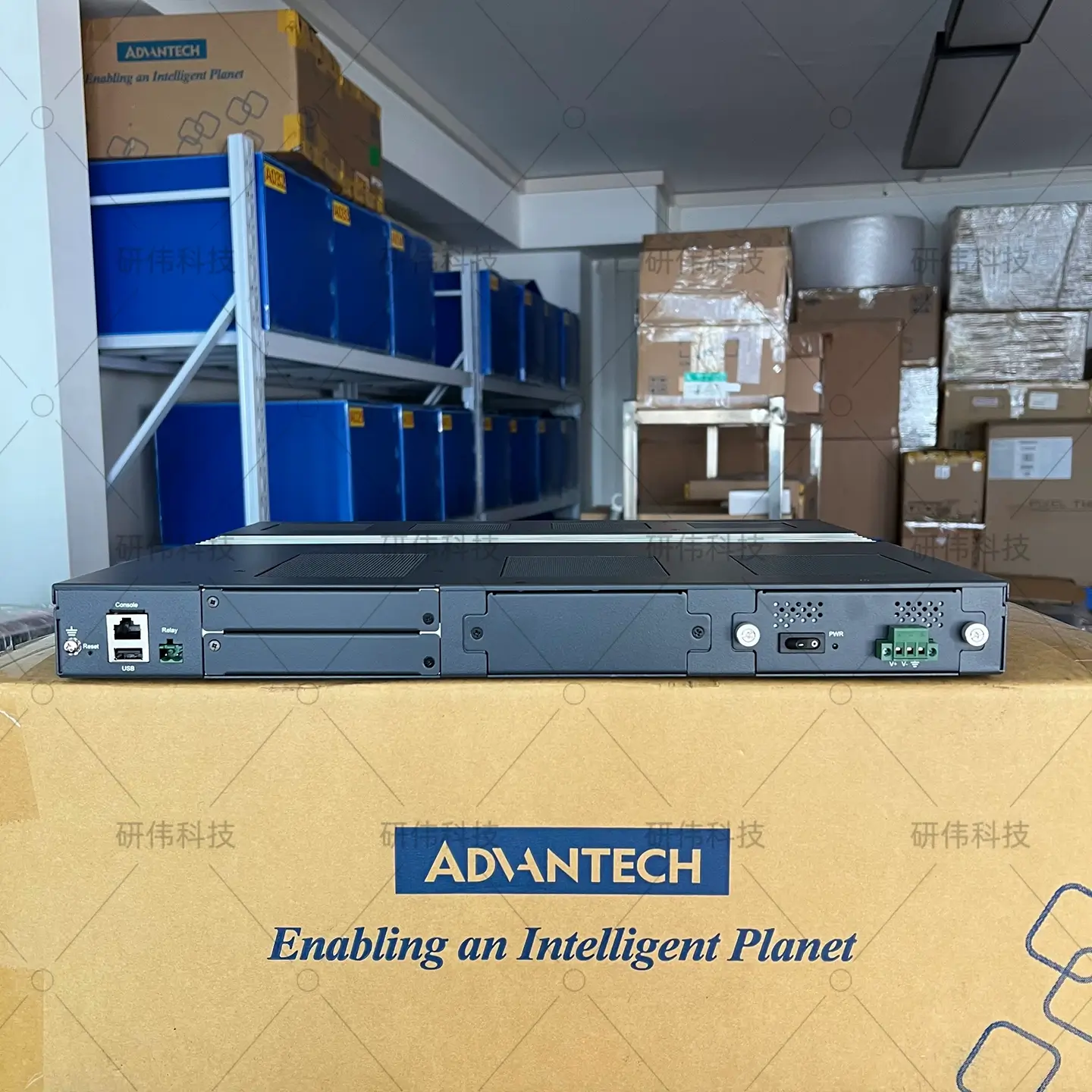

EKI-8528-4XF

L3层模块化网管型交换机

3 x 8个千兆端口模块插槽+4 x 10G SFP+端口
110/220V AC或24-48V DC电源模块的双电源输入选项
L3功能：RIP v1/v2、OSPF、VRRP、PIM和NAT
完全支持第2层和TSN功能
具有IEEE 802.1AS时间同步、IEEE 802.1Qbu帧优先、IEEE 802.1Qbv时间感知整形器和IEEE 802.1CB无缝冗余功能
冗余：X-Ring Pro（<20ms@250个单位），X-Chain
管理：SNMP v1/v2c/v3、WEB、Telnet、标准MIB
支持宽温：-40~75℃

EKI-8528-4XF _ 技术规格

分类： IEC61850-3 Ethernet Switches, 工业以太网交换机, 智能通讯标签： EKI-8528-4XF, EKI-8528-4XF-A

如需帮助,请联系我们

免费电话：400- 880- 8951

邮箱：advavee@outlook.com
咨询客服：一站式采购

批量采购定制咨询，请发送您的需求，我们将立即回复。

产品资讯

Introduction

The EKI-8528 series is a 19” rackmount L3/L2 modular managed switch engineered as a power-plant-grade solution for mission-critical networks. Providing up to 24 Gigabit ports and 4x10GbE uplinks, this high-performance switch supports advanced routing protocols (OSPF, VRRP, PIM) with a 4.5K routing table to ensure seamless data exchange across large industrial infrastructures.

Built for harsh power utility environments, it features heavy industrial hardware with superior EMC resistance against extreme electrical noise and temperature fluctuations. Addressing critical OT security, the series is fully compliant with the IEC 62443-4-2 cyber security standard, delivering robust component-level protection, enhanced authentication, and access control to safeguard infrastructure from cyber threats.

Featuring flexible Ethernet (RJ45/SFP) and redundant power modules, the EKI-8528 provides exceptional modular versatility. It acts as a highly secure, resilient backbone engineered for demanding environments, including IEC 61850-3/IEEE 1613 power substations, renewable energy sites, and mission-critical data centers.

Specifications

Interface

Ethernet port 3 x 8 port module slots*
Console port RJ45 (RS-232)
Relay output 2-pin Terminal Block
Power Connection 2 x Power supply module slots*
USB port Type A
Please refer to the accessory list for details on the interface and power

LED Display

System LEDs PWR1, PWR2, SYS, Alarm
Port LED Link Speed, link/ Act

Switch Properties

DRAM 256MB
Flash 128MB
Switching capacity 128 Gbps
Forwarding rate 95 Mpps
IGMP Group 1024
Max static VLANs 256
VLAN ID range 1-4094
MAC table 32K
Jumbo frame 10KB
Packet Buffer 32Mbits
Max Priority Queues 8

Physical

Enclosure Metal shell and die-casting
Protection Class IP 30
Installation 1U 19" Rackmount
Dimensions(WxHxD) 438 x 44 x 5mm (17.24” x 1.73” x 14.31”)
Weight 5 kg

Environment

Operating Temperature -40 to 85°C with full 28×Gigabit port operation

-40 to 75°C with 24×Gigabit + 4×10G SFP+ port operation

Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity 5 ~ 95% (non-condensing)

Power

System Power Consumption 75 Watts(Max)
Input Voltage High Voltage module: 110/220 VAC/VDC Low Vlotage module: 24/48 VDC
Over current Protection Supported
Reverse Polarity Protection Supported
Please refer to accessory list for detail on the power

Switch Standards

IEEE 802.3 for 10BaseT
IEEE 3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
3ae for 10GBase over Fiber
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 3ad for Port Trunk with LACP

Certification

Safety EN62368
EMI CISPR 22, 32, FCC Part 15B Class A
EMS EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS), EN61000-4-6(CS), EN-61000-4-8 (PFMF)
Shock IEC60068-2-27
Freefall IEC60068-2-32
Vibration IEC60068-2-6
Substation IEC61850-3, IEEE1613
Railway EN50121-4
Cybersecurity IEC 62443-4-1, IEC 62443-4-2

L2 Features

Link Aggregate Static Trunk, 802.3ad LACP
VLAN 1Q Tag-based, 802.1v Protocol-based VLAN, 802.1ad VLAN stacking, GVRP, GMRP, MAC/IP subnet/Private/Voice VLAN
Port Mirroring Per port, Multi-source port
IP Multicast IGMP Snooping v1/v2/v3, MLD Snooping
Redundancy IEEE 802.1D-STP, IEEE 802.1s-MSTP,IEEE 1w-RSTP

L3 Feature (EKI-8528-4XF only)

Routing protocol Static Routing, RIP v1/v2, OSPFv2, VRRPv2, PIM-SM
Routing Table IPv4 up to 3K, IPv6 up to 5K

QoS

Priority Queue Scheduling WRR (Weighted Round Robin), SP (Strict Priority)
Class of Service IEEE 1p based CoS, IP TOS, DSCP, Port priority
Rate Limit Ingress/Egress Rate limit

Security

Loop detection Port-based detection/ prevention
Storm Control Broadcast, Unknown multicast, Unknown unicast
Port Security Static MAC, MAC violation notice
Authentication 1x (Port-Based, MAC-Based), RADIUS, TACACS+
Account Manager Multiple Account, 0-15 User Privilege
IP Security IP source guard, DHCP snooping, ARP spoofing
ACL L2, L3 Access Control List

Management

OAM 1ag, Continuity Check, IEEE802.3ah, Link Monitor, Remote Loopback, Dying Gasp, Diagnostic features
PTP IEEE1588v2, Boundary/ Transparent Clock
DHCP Client, Server, DHCP Relay, Option 82 relay
Config & Access IPv4/ IPv6, SNMP v1/v2c/v3, WEB GUI, Telnet, RMON, SSH

2.0, SSL(TLSv1)

Standard MIB, Private MIB

Upgrade/ Backup TFTP, HTTP, Dual firmware image
Others NTP client, DNS client, Syslog

Power Substation

IEC 61850 GOOSE QoS, SMV QoS, 238 Power Profile, MMS

TSN

Standardized Real-Time Ethernet Time Sensitive Networks (TSN), IEEE 1AS, IEEE

802.1Qci, IEEE 802.1CB, IEEE 802.1Qbv, IEEE 802.1Qbu, IEEE 802.3br

Accessories (Need to be ordered separately)

Ethernet Modules

系列	Part Number	Description
光纤模块	EKI-ME08-8GF-A	Gigabit SFP Module with 8 x 100/1000Base SFP ports
RJ45模块	EKI-ME08-8GT-A	Gigabit Ethernet Module with 8 x 10/100/1000BaseTX ports

Power Supply Modules

系列

Part Number

Description

交流模组

EKI-MP01-ACO-A

High Voltage Power Supply Input Voltage: 110/220 VAC/VDC

Operating Voltage: 90-264 VAC or 88-370 VDC

直流模组

EKI-MP01-DC-A

Low Voltage Power Supply

Inout Voltage: 24/48 VDC Operating Voltage: 24 to 48 VDC

IIoT Modules

系列	Part Number	Description
IoT模块	EKI-MI01-PRP-A	HSR/PRP module with 2 x 100/1000Base SFP ports (for HSR/PRP) and 1 x 10/100/1000Base-TX interlink port

Ordering Information

Part Number	Software	1000/10G Base SFP+ Ports	100/1000 Base SFP ports	10/100/1000 BaseTX Ports	Note
EKI-8528-4XF-A	Layer 3	4	Up to 24	Up to 24	Ethernet and Power supply module need to be ordered separately.
EKI-8528-4XFL-A	Layer 2	4	Up to 24	Up to 24

SFP Transceiver Compatibility List for the EKI-8528 Series

Industrial Grade 1.25 Gbps SFP Modules

Part Number	Optical Mode	Fiber Cable Type	Typical Distance	Optical Connector	Operating Temp.	DDM
SFP-GMM-550	Multi-mode	OM1/OM2	550 m	Duplex LC	-40 to +85 °C (-40 to +185 °F)	Yes
SFP-GMM-2K	Multi-mode	Multi-Mode	2 km	Duplex LC
SFP-GSM-20K	Single-mode	G.652	20 km	Duplex LC
SFP-GSM3-40K	Single-mode	G.652	40 km	Duplex LC
SFP-GZX-LCI-80E	Single-mode	G.652	80 km	Duplex LC
SFP-GSS-40KTX-LC	Bi-Directional	G.652	40 km	Simplex LC
SFP-GSS-40KRX-LC	Bi-Directional	G.652	40 km	Simplex LC
SFP-GSS-20KTX	Bi-Directional	G.652	20 km	Simplex SC
SFP-GSS-20KRX	Bi-Directional	G.652	20 km	Simplex SC
SFP-GSS-40KTX	Bi-Directional	G.652	40 km	Simplex SC
SFP-GSS-40KRX	Bi-Directional	G.652	40 km	Simplex SC

Industrial Grade 100-155 Mbps SFP Modules

Part Number	Optical Mode	Fiber Cable Type	Typical Distance	Optical Connector	Operating Temp.	DDM
SFP-FMM850-2K	Multi-mode	OM1/OM2	2 km	Duplex LC	-40 to +85 °C (-40 to +185 °F)	Yes
SFP-FMM-2K	Multi-mode	OM1/OM2	2 km	Duplex LC
SFP-FSM-20K	Single-mode	G.652	20 km	Duplex LC
SFP-FSM-40K	Single-mode	G.652	40 km	Duplex LC
SFP-FSS-20KTX	Bi-Directional	G.652	20 km	Simplex SC
SFP-FSS-20KRX	Bi-Directional	G.652	20 km	Simplex SC
SFP-FSS-40KTX	Bi-Directional	G.652	40 km	Simplex SC
SFP-FSS-40KRX	Bi-Directional	G.652	40 km	Simplex SC

Note: 100 Mbps is supported on SFP Port 9 only in SGMII mode.

Industrial Grade 100-155 Mbps SFP Modules with SGMII mode*

Part Number	Optical Mode	Fiber Cable Type	Typical Distance	Optical Connector	Operating Temp.	DDM
SFP-FMM-2K-SGMII	Multi-mode	OM1/OM2	2 km	Duplex LC	0 to +70 °C	Yes
SFP-FMMI-2K-SGMII	Multi-mode	OM1/OM2	2 km	Duplex LC	-40 to +85 °C	Yes
SFP-FSM-10K-SGMII	Single-mode	G.652	10 km	Duplex LC	0 to +70 °C	Yes
SFP-FSMI-15K-SGMII	Single-mode	G.652	15 km	Duplex LC	-40 to +85 °C	Yes

*The SGMII mode is used to support 100 Mbps operation on SFP Port 9.

Industrial Grade 10 Gbps SFP+ Modules

Part Number	Optical Mode	Fiber Cable Type	Typical Distance	Optical Connector	Operating Temp.	DDM
SFP-XMM-LCI-400	Multi-mode	OM3	400 m	Duplex LC	-40 to +85 °C (-40 to +185 °F)	Yes
SFP-XSM-LCI-10K	Single-mode	G.652	10 km	Duplex LC
SFP-XSM-LCI-20K	Single-mode	G.652	20 km	Duplex LC
SFP-XSM5-LCI-40K	Single-mode	G.652	40 km	Duplex LC
SFP-XSM-LCI-80K	Single-mode	G.652	80 km	Single LC
SFP-XSS-10KTX-LC	Bi-Directional	G.652	10 km	Simplex LC	0 to +70 °C (+32 to +158 °F)	Yes
SFP-XSS-10KRX-LC	Bi-Directional	G.652	10 km	Simplex LC
SFP-XSS-40KTX-LC	Bi-Directional	G.652	40 km	Simplex LC
SFP-XSS-40KRX-LC	Bi-Directional	G.652	40 km	Simplex LC

Industrial Grade copper Modules

Part Number	Ethernet Speed	Typical Distance	Connector	Operating Temp.
SFP-FTX-RJ45I-AE	100 Mbps	100m	RJ-45	-40 to 85 °C (-40 to 185 °F)
SFP-GTXB	1000Mbps	100 m	RJ45	0 to 70 °C (+32 to 158 °F)
SFP-GTX*	10/100/1000Mbps	100m	RJ-45	-40 to 85 °C (-40 to 185 °F)
SFP-10GTXI	1G/2.5G/5G/10G Mbps	30m - 10G 50m- 2.5G/5G 100 m- 1G	RJ-45	-40 to +85 °C
