PCE-USB

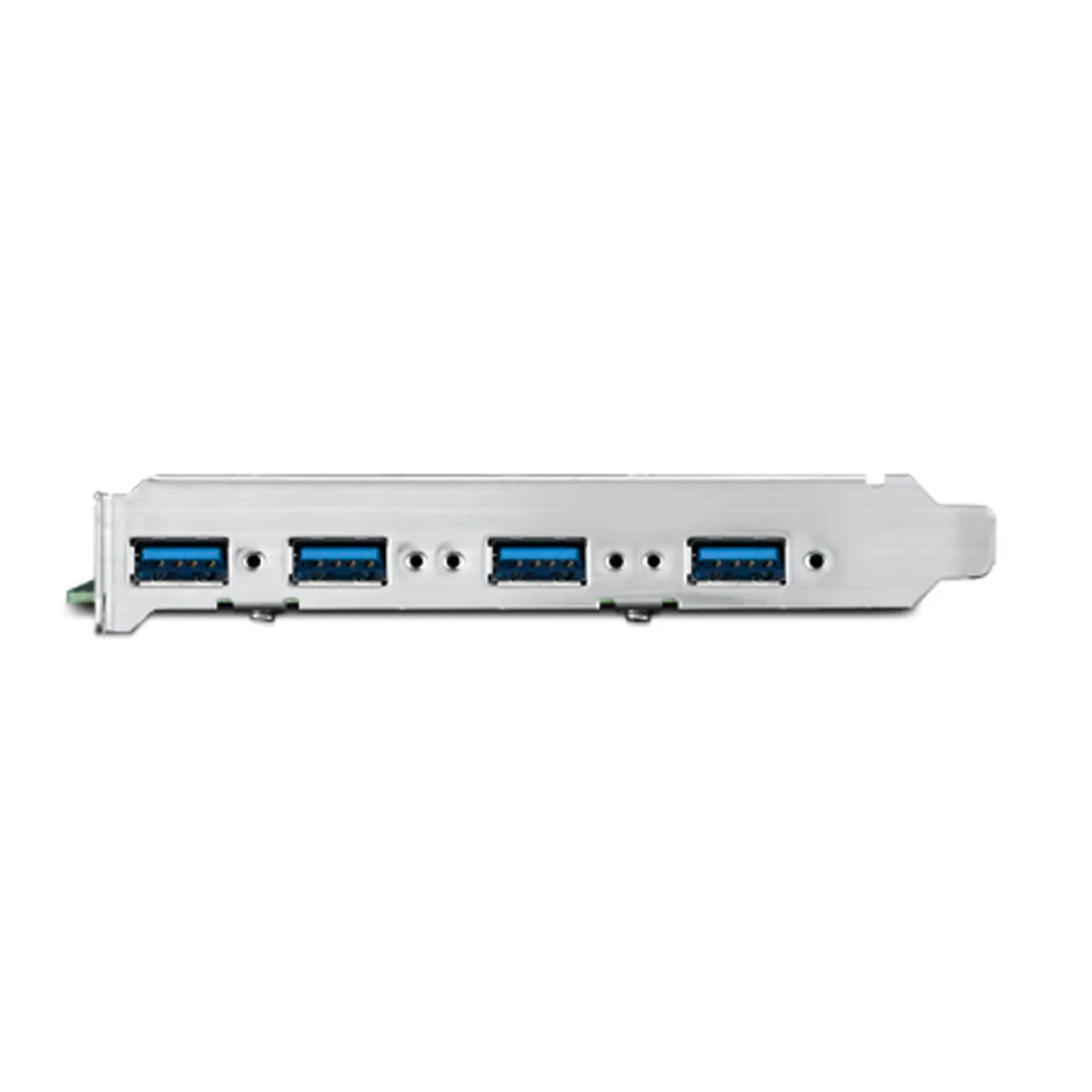

研华PCE-USB 是一款 PCI Express x4，4/8端口 USB 3.0 扩展卡,每端口最大支持 1500mA,符合USB 3.0规范和 Intel®xHCI规范修订 1.0,支持 Microsoft Windows 7/8.1 和 Linux 操作系统

如需帮助,请联系我们

免费电话：400-880-8951

公司邮箱：advavee@outlook.com
咨询客服：一站式采购

批量采购定制咨询，请发送您的需求，我们将立即回复。

Specifications

USB	Interface	PCI Express x4
	Connector	4 x USB 3.0 Type A (PCE-USB4-00A1E) 8 x USB 3.0 Type A (PCE-USB8-00A1E)
	Host Bus	4-lane Gen 2 PCIe interface, compliant with PCI Express Base Specification, Revision 2.0
	Controller	4 x Renesas μPD720202 host controllers Compliant with Universal Serial Bus 3.0 Specification and Intel® xHCI Specification, Revision 1.0
	Max. current	1500 mA maximum per port
	Data Transfer Rate	Super speed (5.0 Gbps)/high speed (480.0 Mbps)/full speed (12.0 Mbps)/low speed (1.5 Mbps)
Environment	Operating Temperature	0 ~ 60 °C
	Storage Temperature	-40 ~ 85 °C
	Dimensions (L x H)	118 x 111 mm (4.64" x 4.37")
	Certifications	CE/FCC, Class B

Ordering Information

Part Number	Description
PCE-USB4-00A1E	PCIe x4, 4-port USB 3.0 expansion card
PCE-USB8-00A1E	PCIe x4, 8-port USB 3.0 expansion card
