| Controller | Intel E830-CCAM1 |
| Interface | PCIe x8, Gen5 |
| Speed | 100GbE |

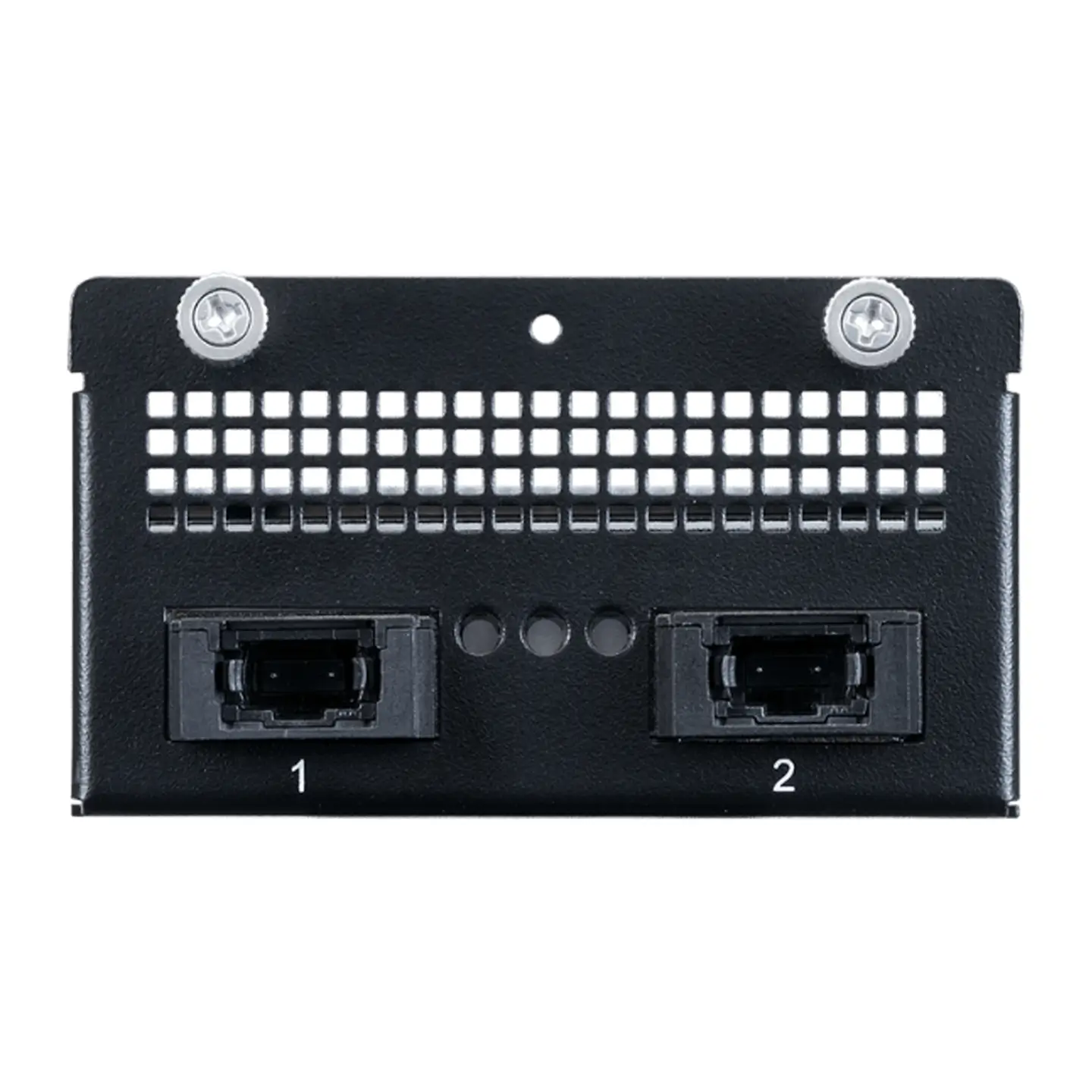

| I/O Port | 2 x MPO-MT |
| Reach Distance | 70 /100m (OM3/OM4) |
| Multi Mode Fiber | Available in 50/125μm |
| Optical Receiver Sensitivity | -4.2 dBm |
|
LAN LED definition |
Link/Act/Bypass LED: Link: Green on
Activity: Green Blinking LAN Bypass: Amber on Disconnect: Amber blinking |
|
Advanced Software Features |
Support:
IEEE 802.1Q, 802.1P VLAN tags and priority IEEE 802.1Qaz (ETS) IEEE 802.1Qbb (PFC) IEEE 1588v2 |
| OS support | Linux (CentOS, Red Hat, Ubuntu), Windows server |
| Operating Temperature (Air flow 0.7 m/sec) | 0°C ~ 40°C (23°F~113°F) with system |
| Storage Temperature | -20°C ~ 65°C (-4°F~149°F) |
| Storage Humidity | 5 ~ 85 % @ 60 °C (140 °F) |
| Dimension (W x H x D) | 74.3 x 42.2 x 174.7 mm |
| Weight | 0.5 kg |
| Certification | CE/FCC, RoHS |
| Part Number | Description |

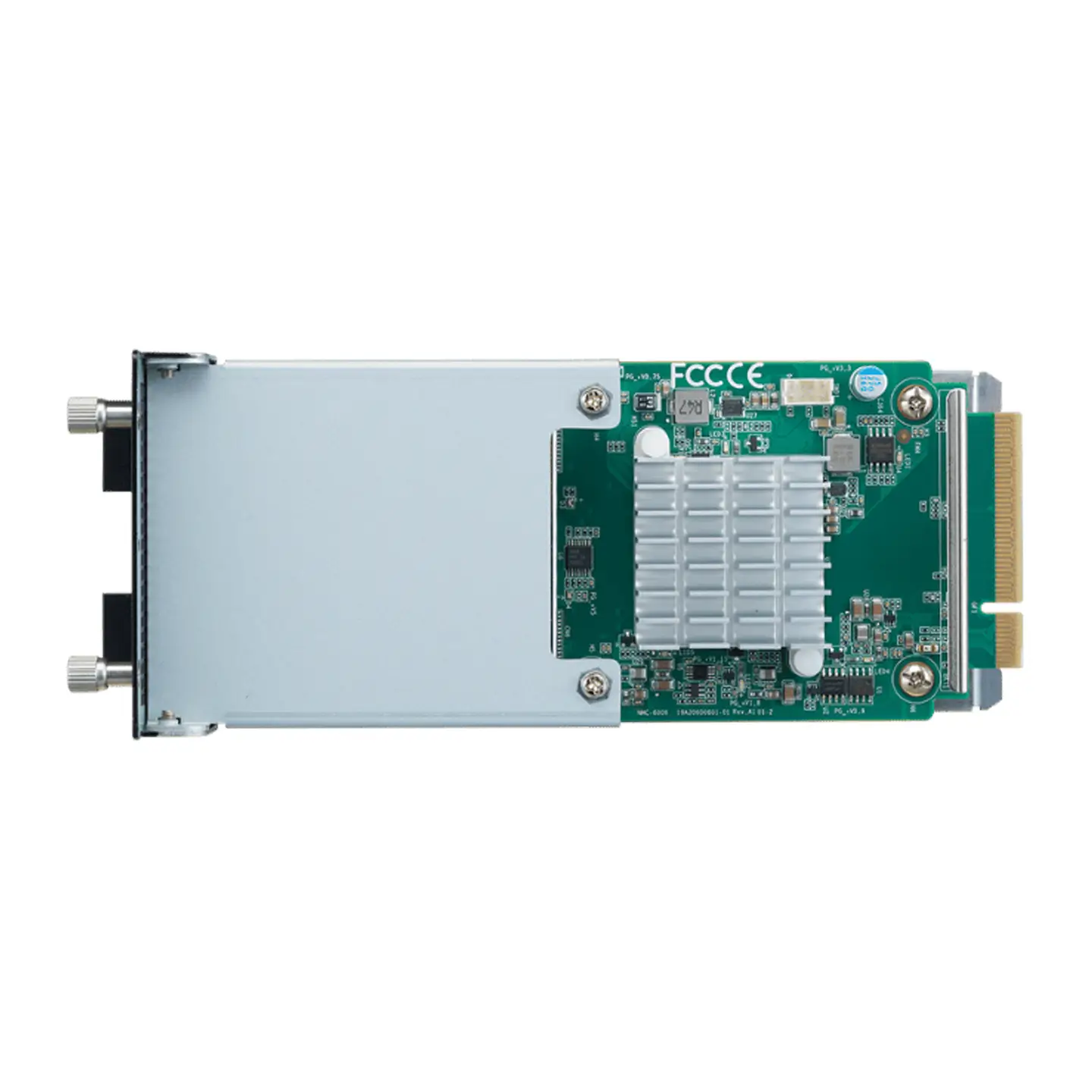

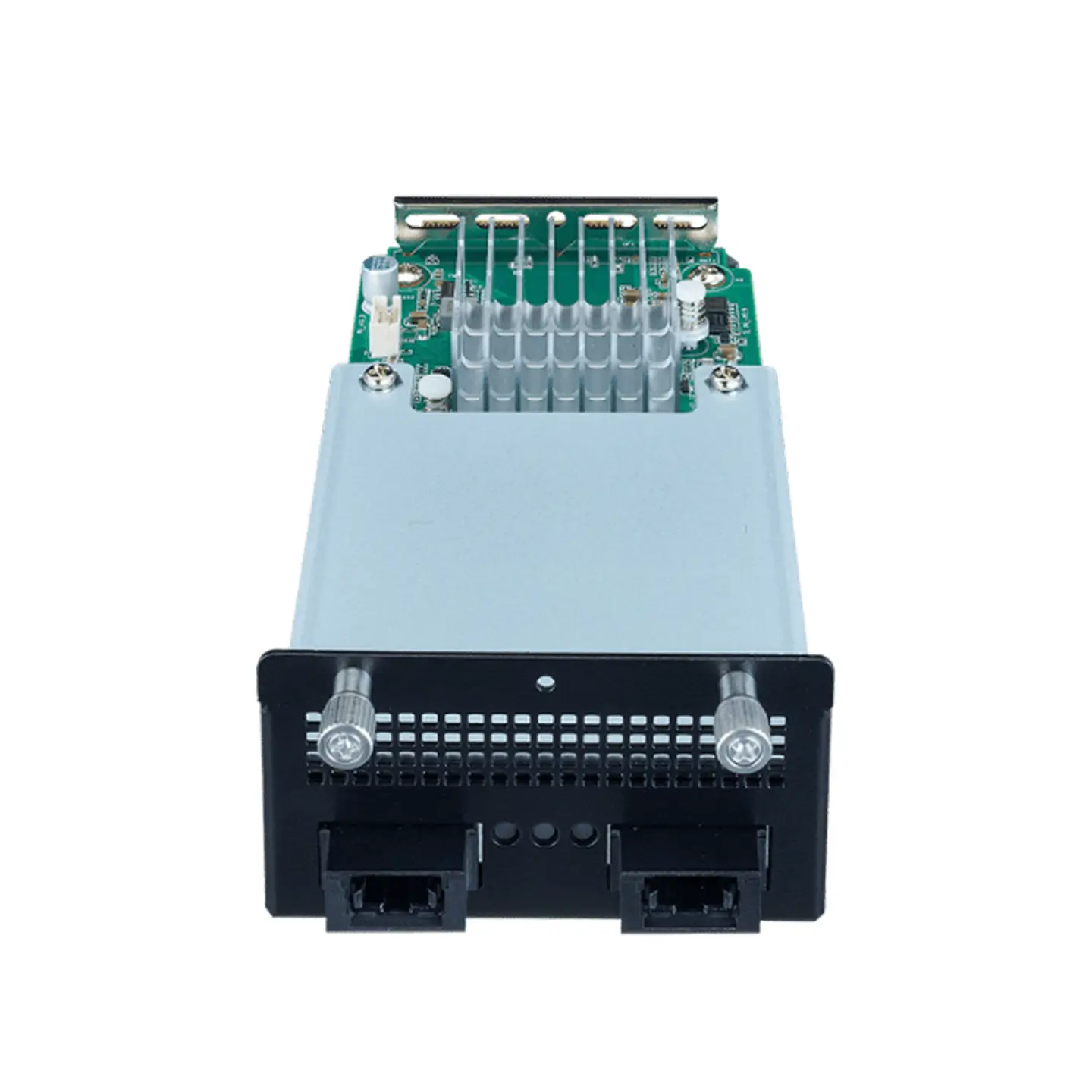

| NMC-6006FB-02A1 | 2 ports 100GBASE-SR4 Fiber Bypass Module |
