| Controller | 2 x Intel® E610-IAT2 |
| Interface | 2 x PCIe x4, Gen 4 |
| Speed | 2.5GbE |

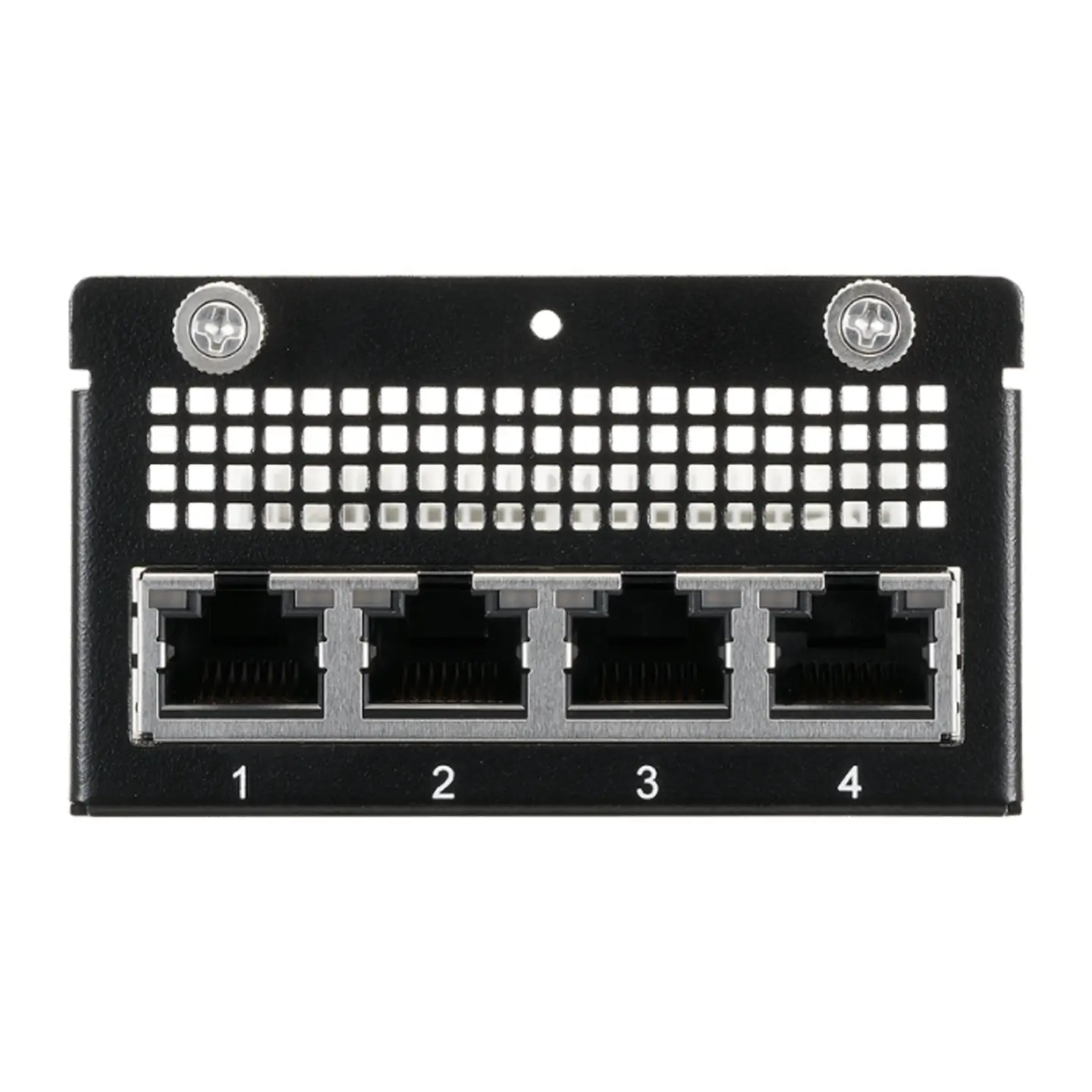

| I/O Port | 4 x RJ45 |
| Reach Distance | CAT5e/6/6A in 2.5G / 1G / 100Mbps speed 100m |
|
LAN LED definition |
Link/Act/Bypass LED: Link: Green on
Activity: Green Blinking LAN Bypass: Amber on Disconnect: Amber blinking 10Gbps : Green Downgrade : Ambert |
|
Advanced Software Features |
Support:
IEEE 802.3ad (LACP) IEEE 802.1Q, 802.1P VLAN tags and priority IEEE 802.1Qaz (ETS) IEEE 802.1Qbb (PFC) IEEE 1588v2 |
| OS support | Linux (RHEL 8/9/10, SLES 15, Ubuntu 22.04/24.04) |
| Operating Temperature (Air flow 0.7 m/sec) | -5°C ~ 45°C (23°F~113°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F~158°F) |
| Storage Humidity | 5 ~ 85 % @ 60 °C (140 °F) |
| Dimension (W x H x D) | 74.3 x 42.2 x 174.7 mm |
| Weight | 0.5 kg |
| Certification | CE/FCC, RoHS |
| Part Number | Description |

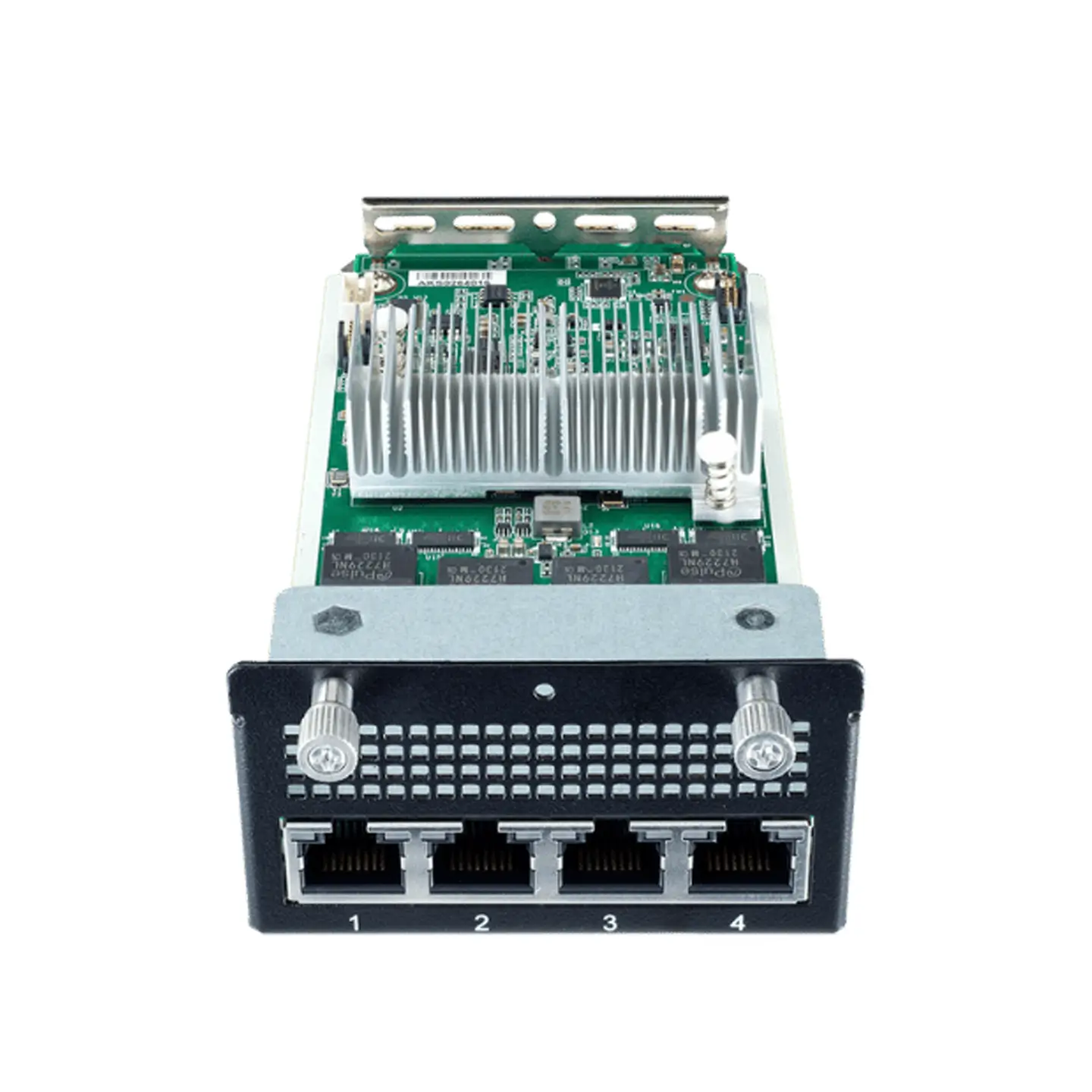

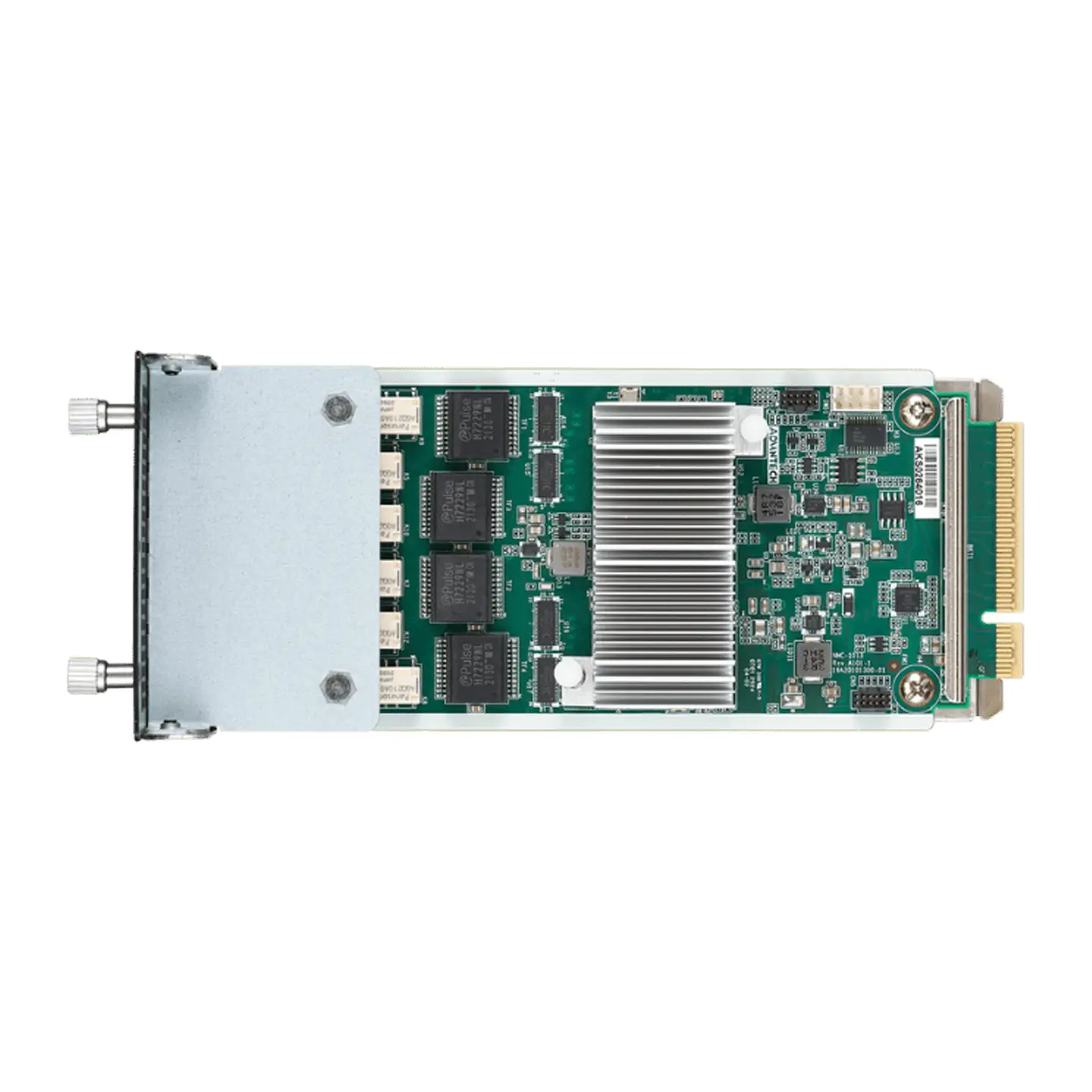

| NMC-0201CB-04A1 | 4 ports 2.5GbE RJ45 Bypass Module |
