规格

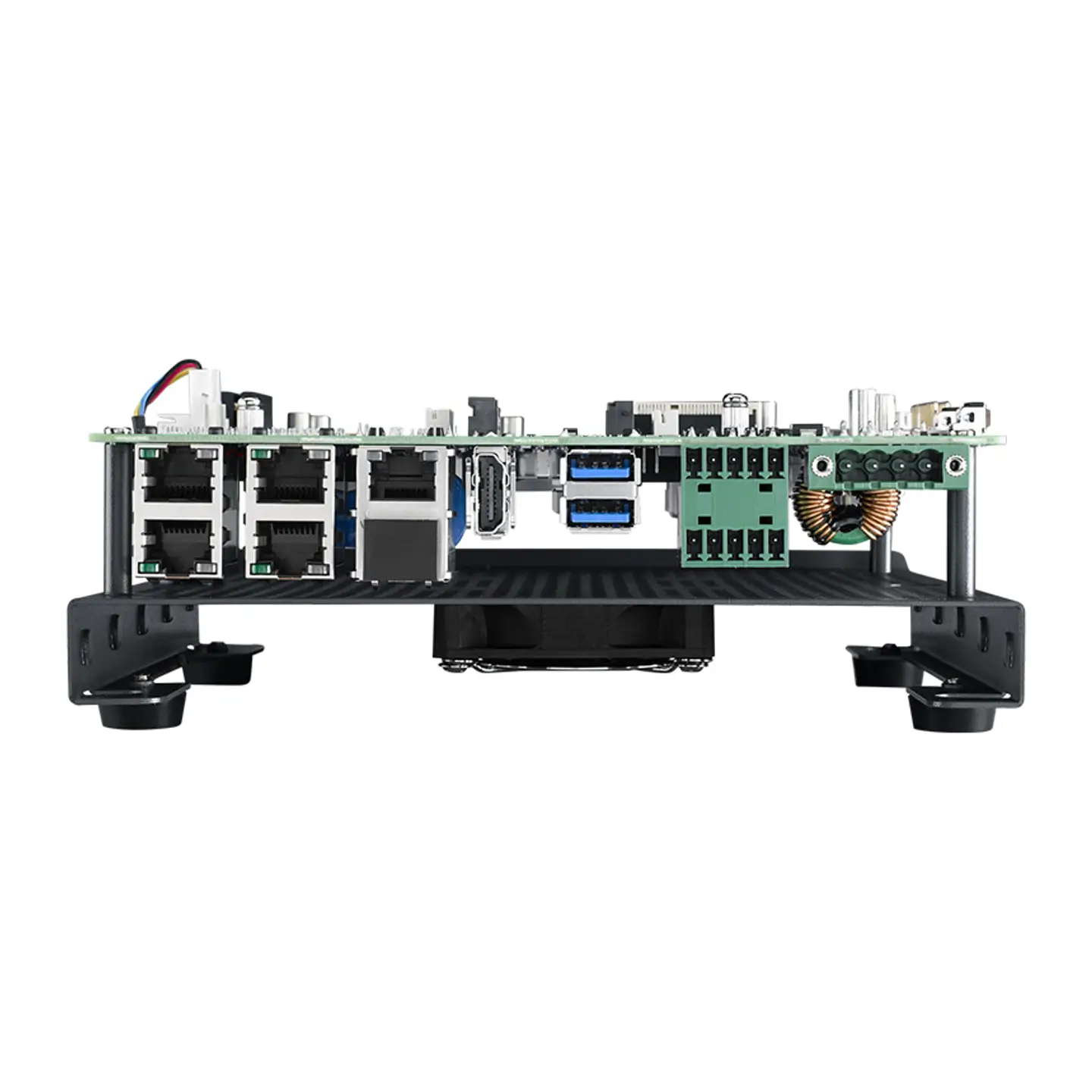

| NVIDIA® Jetson Orin™ NX | ||
|
处理器系统 |
CPU | 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| 内存 | 16GB: 16GB LPDDR5
8GB: 8GB LPDDR5 |
|
| 闪存 | - | |
|
I/O |
以太网 | 5 x 10/100/1000 Mbps |
| 显示 | HDMI (最大分辨率 3840 ×2160 @ 60Hz ) | |
| USB | External: 6 x USB 3.2 Gen 2 | |
| Digital I/O | 4-ch DI, 4-ch DO | |
| 串口 | 2 x RS-232/422/485 (通过板载排针引出) | |
| CANBus | 1 x CAN FD (5M) | |
| OTG USB | 1 x Micro USB | |
|
扩展 |
PCIe | 1 x PCIe x4 slot (PCIe x4 link, Gen 4) |
| Mini PCIe | 1 x mPCIe (Signal: PCIe + USB 2.0) | |
| M.2 1 x M.2 3052 (Signal: USB) | ||
| SIM | 2 x Nano SIM slots | |
| TPM ( 可选) | 1 x TPM 2.0 | |
| GMSL (可选) | 1 x MIPI 连接器，用于 GMSL 视频采集卡 | |
| 存储 | M.2 1 x M.2 2280 (Signal: PCIe x1, Gen 4) | |
| SD Card | 1 x Micro SD | |
| 风扇 | 尺寸 | 60 x 60 x 13 mm (2.36" x 2.36" x 0.51") |
| RPM | 5400 RPM | |
| 电源 | 模式 | AT |
| 输入电压 | 9 ~ 36 VDC | |
|
工作环境 |
工作温度* | -10 ~ 60 °C with 0.7 m/s airflow (-10~50°C with MAXN_SUPER) |
| 工作湿度 | 95% @ 40 °C (非冷凝) | |
| 振动 | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | |
| 冲击 | 10G / 11ms | |
|
物理特性 |
尺寸 (宽 x 深 x 高) | 181.4 x 180 x 81.71 mm (7.14" x 7.09" x 3.22") |
| 重量 | 0.75 kg (1.65 lb) | |
| 安装 | Desktop | |
| BSP | Jetpack | Above 5.1 |
| 认证 | CE/FCC (No RED certification) | |
| 料号 | NVIDIA 模块 | NVIDIA模块内存 | 已安装的 JetPack 版本 | NVMe** | 超级模式支持 |
| MIC-713S-OX4B2 | Orin NX | 16GB | JP6.2 | 128GB pre installed | Yes |
| MIC-713S-OX3B2 | Orin NX | 8GB | JP6.2 | 128GB pre installed | Yes |
| 料号 | 描述 | 数量 |
| MIC-713S-OX | MIC-713 解决方案套件 | 1 |
| 1652005204 | DI/DO Terminal Block | 2 |
| 1652003234 | DC IN Terminal Block | 1 |
| 料号 | 描述 | 数量 |
| 1700023619-01 | Micro USB cable for System recovery | 1 |
| 1930005673-11 | Screw M3x4.5L for GMSL card | 3 |
| 193A230600 | POST F=M3x5L M=M3x5L B=5 H=6.5 Cu for GMSL
(only for Bx version) |
3 |
| 类别 | 料号 | 描述 | 数量 |
| 适配器 | 96PSA-A150W19P4-4 | Power Adapter 100-240V 150W 19V C14 | 1 |
| 电源线 | 1700020098 | Power Cord SAA 3P 10A 250V C13 183cm (AU) | 1 |
| 1700029019-01 | Power Cord (PSE/BSMI), 3-pin, 7A, 125V, 1.8 M | 1 | |
| 1700000596-11 | Power Cord CCC 3P 10A 250V C13 183cm (China) | 1 | |
| TPM | PCA-TPMSPI-00A1
1700019968 |
PCA-TPMSPI-00A1
COM port cable (2 ports) |
1
1 |
| MIC-FG-4G2C1 | 4ch GMSL Video Capture Card | 1 | |
| GMSL | 1751000805-01 | RF Cable FAKRA-Z/F FAKRA-Z/F KS302 BLK L15M | by camera quantity |
| EWM-W173H01E | Wi-Fi 6+BT 5.0 Module 2.4/5GHz Mini PCIe | 1 | |
| Wifi | 1751000626-01 | RF Cable SMA/F-R MHF1/113 BLK L250mm | 2 |
| 1751000460-01 | Dipole Ant. WiFi 6E SMA/M-R BLK L111.7mm IP54 (Wi-Fi) | 2 | |
| AIW-356-DQ | 5G Sub6+GNSS M.2 3052 Key B (by region) | 1 | |
| 5G | 1751000624-01 | Cable Ant. SMA/F MHF4L/113 BLK L250mm (5G) | 4 |
| 1750009372-01
1960065854N021 |
Ant.SMA/M 90/180 5G BLK 167mm RG178 (5G)
Bracket for idoor PCM series add-on module |
4
1 |
|
| 支架 | 98R27130000 | MIC-713 DIN rail kit | 1 |
| OOB | 98RV710AL00 | Allxon OOB module (By optional chassis) | 1 |
| POE | 98917330010 | MIC-733 PoE Board with package 96917330010 | 1 |
