Input |
Input Voltage range | 16.6-160VDC, nominal 110VDC |
| Input Current | Typical 3.1A at 110VDC | |
| Inrush Current | Peak 27A at nominal 110VDC | |
| Input Connector: | FCI 51939-667LF | |
|
Output |
Output Voltage: | Vo1: +12V, standby Vo2: +5V |
| Output Current (typ.) | Vo1: 25A, standby Vo2: 2.5A | |
| Output Wattage: | Typ. 312.5W continuous | |
| Output Connector: | FCI 51939-667LF | |
| Line Regulation | Typical 1% | |
| Load Regulation | Vo1 typical ±1%, Vo2 typical ±5% | |
| Total Regulation | Vo1 typical ±2%, Vo2 typical ±6% | |
| Noise & Ripple | Typical 1% peak to peak, or 120mV | |
|
General |
Efficiency | Min. 89% at 110VDC(312.5W) |
| Switching Frequency | 100, 65, 80, 400KHz, 100KHz at nominal I/P 110VDC | |
| N+1 Redundancy | Available | |
| Hot-swappable | Available | |
| DC OK | Available | |
| Power Fail Signal | Available | |
| PMBus interface | Available | |
| Dielectric Withstand | I/P-O/P: 3000VAC, I/P-GND:1500VAC, O/P-GND:1000VAC | |
|
Protection |
Over Voltage | Available |
| Over Current | Available | |
| Over Load | Typical 160% max. load fully protected against output overload or short circuit | |
| Over Temperature | Available | |
|
LED |
FAULT | Green: valid input voltage Red: critical fault |
| Power | Green: DC OK | |
|
Environment |
Operating Temperature | -40 °C to +85 °C w (with air flow and |
| derating) | ||
| Storage Temperature | - 45 °C ~ 90 °C | |
| Cooling | 150-312.5W: 200-600LFM Fan | |
| Operating Humidity | 90% @ 40°C, non-condensing | |
| Non-operating Humidity | 95% @ 60°C, non-condensing | |
| Shock | 10 G, 11ms, each axis three times, operating mode | |
| Vibration | 10Grms ((10Hz~2000Hz) | |
| Assignment | Volt. | Typical | Min | Max | Peak |
| V1 | 12V | 25A | 0A | 25A | 28A |
| V2 | 5V | 2.5A | 0A | 2.5A | 3A |
| PN | Description |

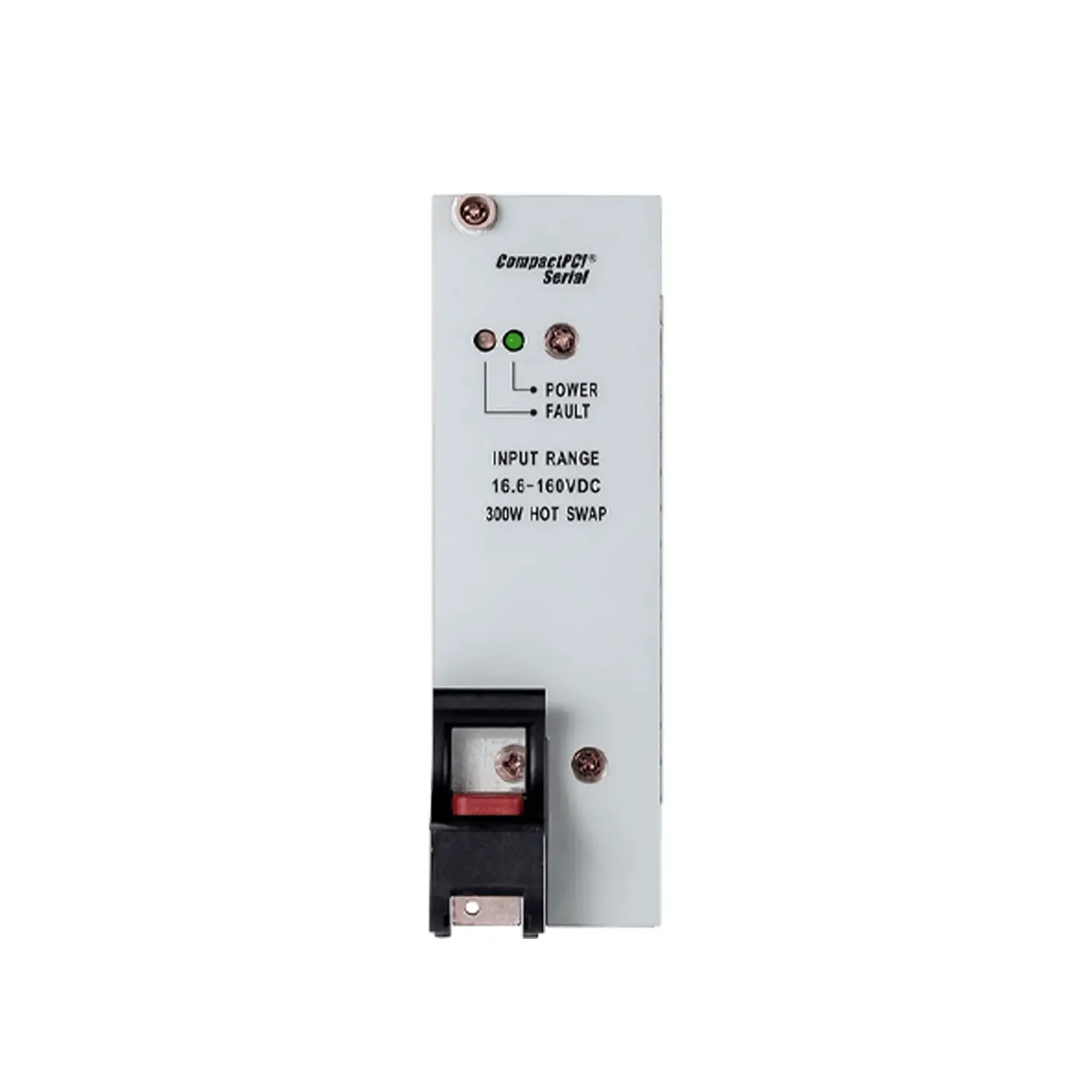

| MIC-3890DC-A1D1 | D/D 16.6-160V 312.5W 12V/5V CPCI |
| Models | Description |
| MIC-330 | 3U CompactPCI® serial Intel® 9th gen. processor blade |
| MIC-330V2 | 3U CompactPCI® serial Intel® 11th gen. processor blade |
| MIC-332 | 3U CPCI-S carrier, AGX Orin |
| MIC-3810 | 3U CPCI-serial PCIe carrier board |
| MIC-3820 | 3U CPCI-serial SATA carrier board |
| MIC-3811 | 3U CPCI-serial dual Mini-PCIe carrier board |
| MIC-3954 | 3U CPCI-S Quad Mini-PCIe & M.2 carrier board |
| MIC-3860 | 3U CompactPCI® serial 4 Ports 2.5GBASE-T Ethernet board |
| MIC-3821 | 3U CompactPCI® serial M.2 PCIe/NVMe SSD carrier board |
| MIC-3812 | 3U CompactPCI® serial MXM carrier board |
| MIC-3861 | CPCI-S 10G Ethernet board |
| MIC-3850 | CPCI-S LAN Switch board |
| MIC-300B | 3U CPCI-S 84HP Chassis 8slot BP Fanless |
| MIC-300A1 | 3U CPCI-S 84HP Chassis with 8-slot B Fan |
