| Ethernet Interface | 4 x 10BASE-T, 100BASE-T, 1000BASE-T and 2.5GBASE-T interface
IEEE802.3x support |
||

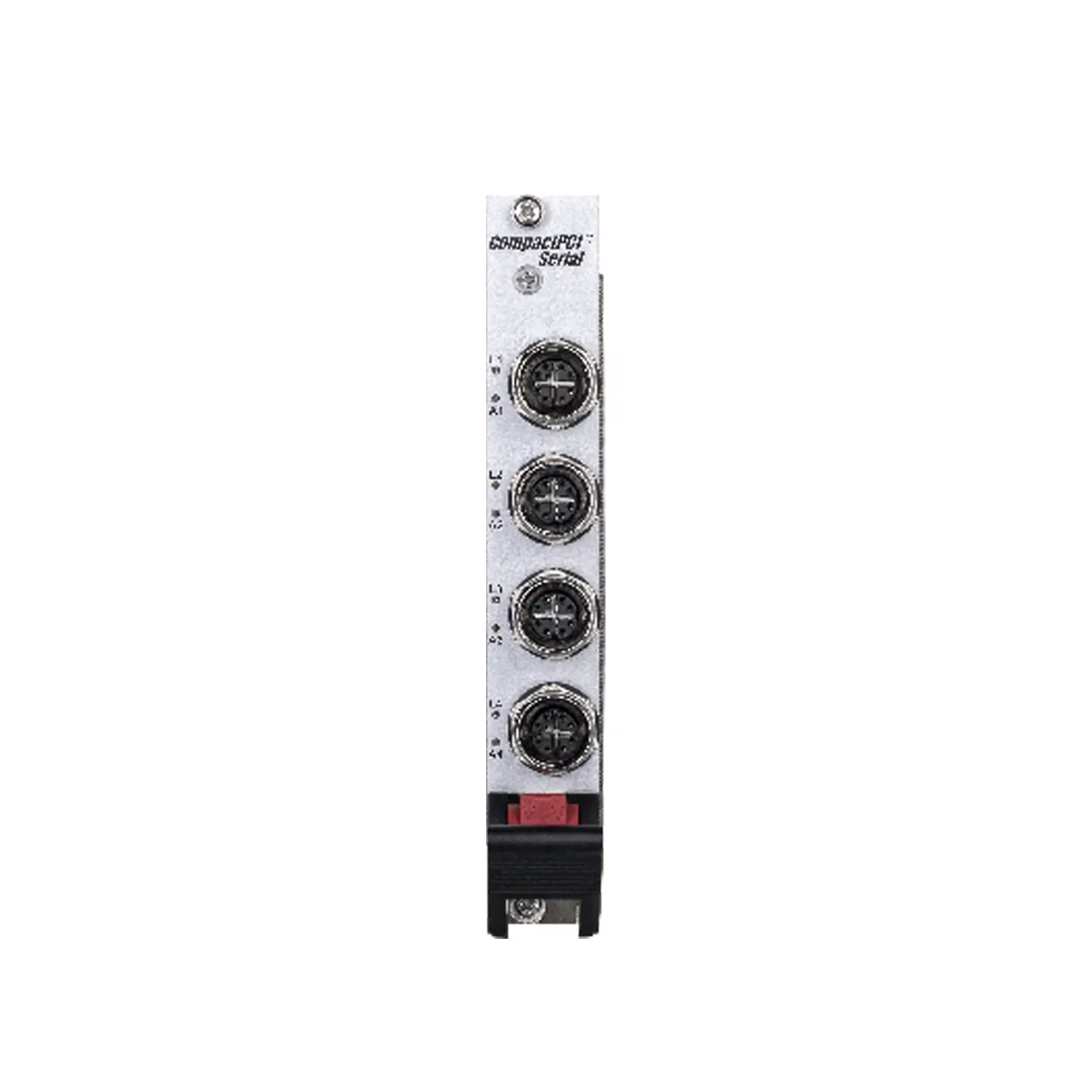

| Front Panel | 4 x RJ-45 or 4 x X-code M12 connectors
LED indicators: LNK: (2.5 Gbps: green; 1 Gbps: orange; 100 Mbps & 10 Mbps: off); ACT: green blink |
||
|
Power Over Ethernet Features |
PoE functions on all ports
§ PSE (Power Sourcing Equipment) function § Supports supply classes 0 to 3 for four Ethernet connectors at default PoE SKUs (comply with 802.3af) § Reserved PoE plus function can support to supply classes 0 to 4 (comply to 802.3at) by user request § Supplies up to four powered devices (up to 60 W total) |
||
| Dimension | 3U/4HP, 100 mm x 160 mm
Weight: 200 g |
||
| OS Support | Windows 10, Linux (upstream kernel release 5.8 and beyond), VxWorks | ||
|
Dielectric Withstanding Voltage |
MIC-3860-A1S1: 1.5 KV AC MIC-3860-B1S1: 1 KV AC MIC-3860-C1S1: 1.5 KV AC MIC-3860-D1S1: 1 KV AC | ||
|
Environment |
Operating | Non-Operating | |
| Temperature | -40°C ~ 70°C (-40°F ~ 158°F) | -40°C ~ 85°C (-40°F ~ 176°F) | |
| Humidity | 95% @ 40°C, non-condensing | 95% @ 60°C, non-condensing | |
| Shock | 10 G, 11 ms, each axis three times, operation mode | ||
| Vibration | 2 Grms, random (5 Hz ~ 500 Hz) | ||
| Part Number | Description | PoE(802.3af)
Support |

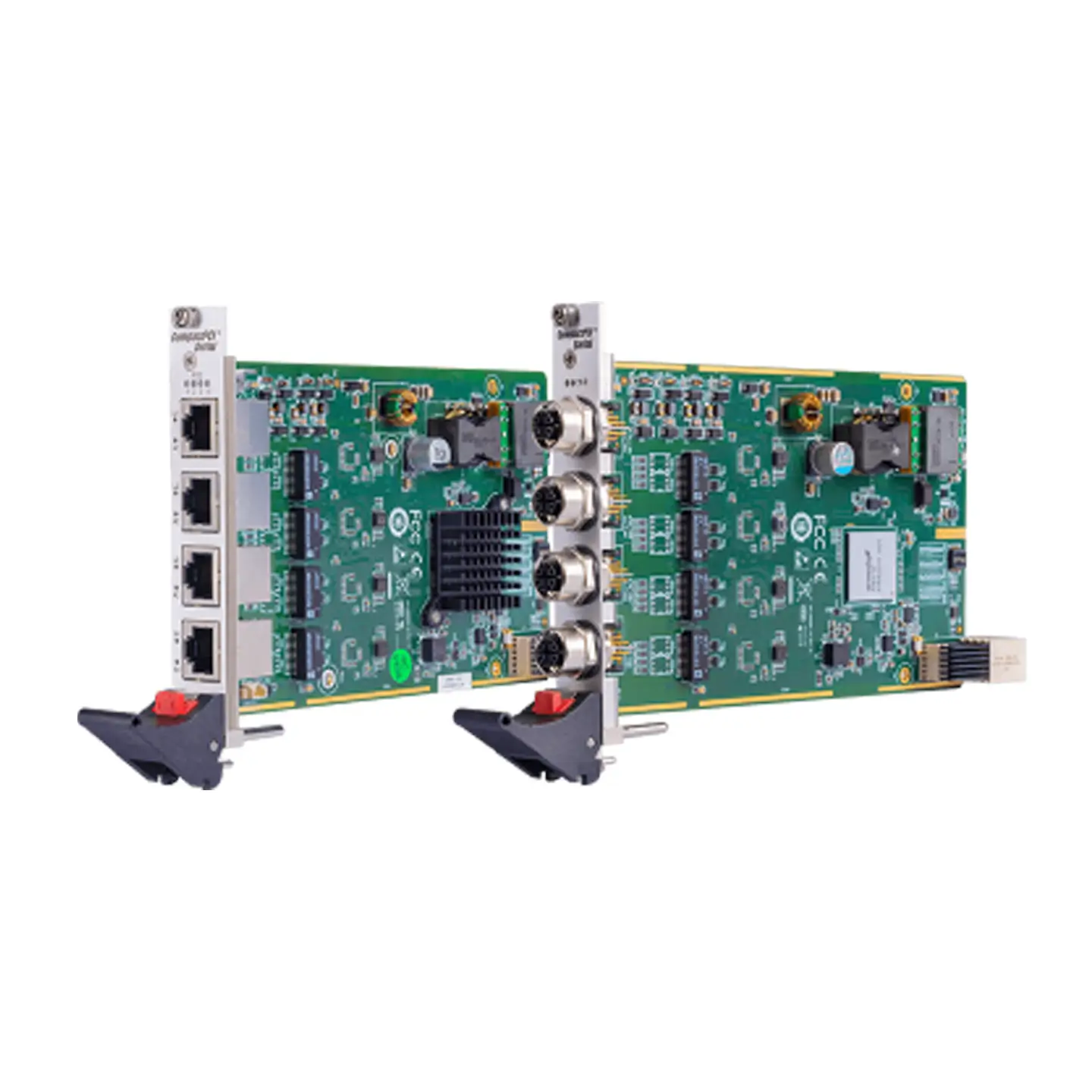

| MIC-3860-A1S1 | MIC-3860 3U CPCI-S 4 x 2.5 Gbps RJ-45 Ethernet board | No |

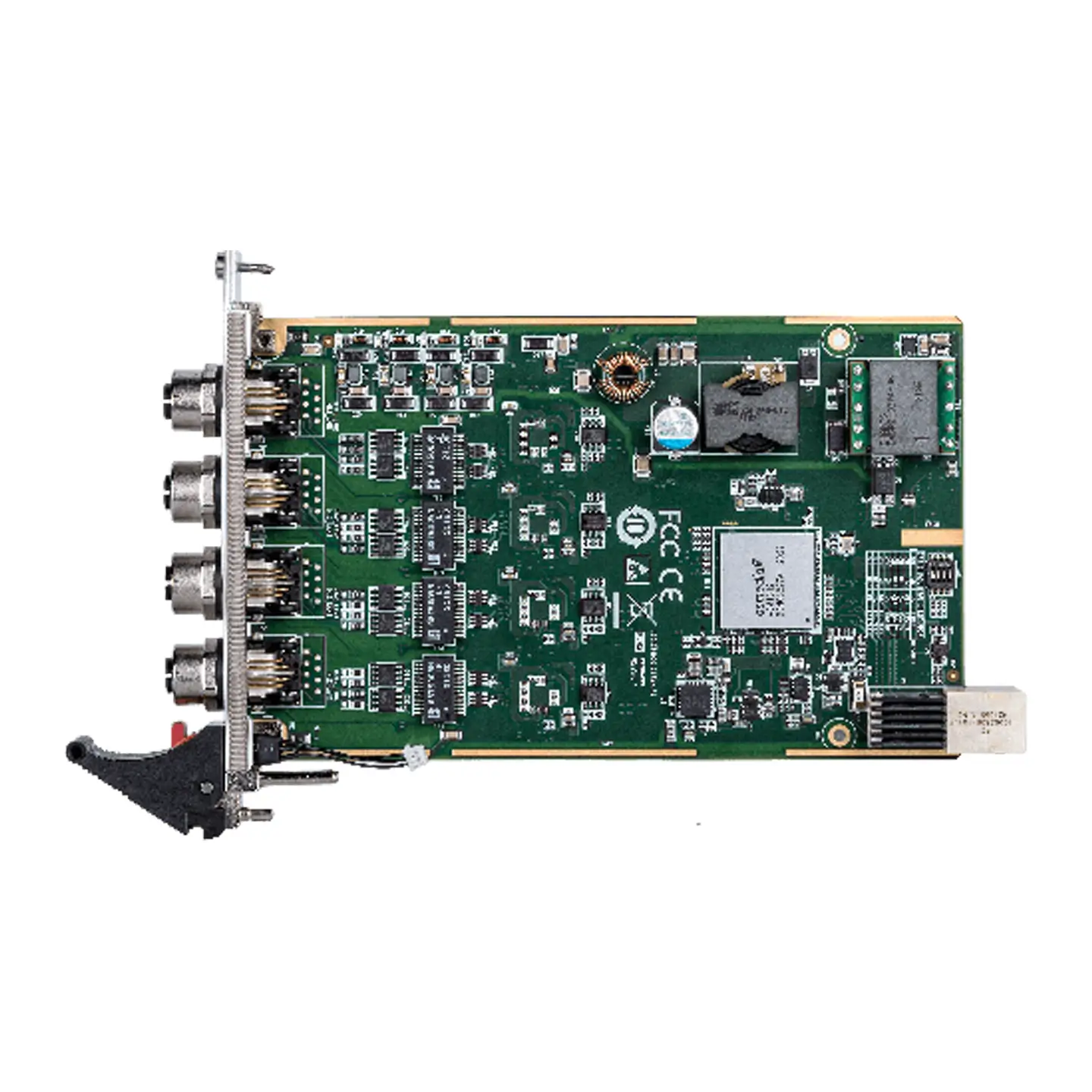

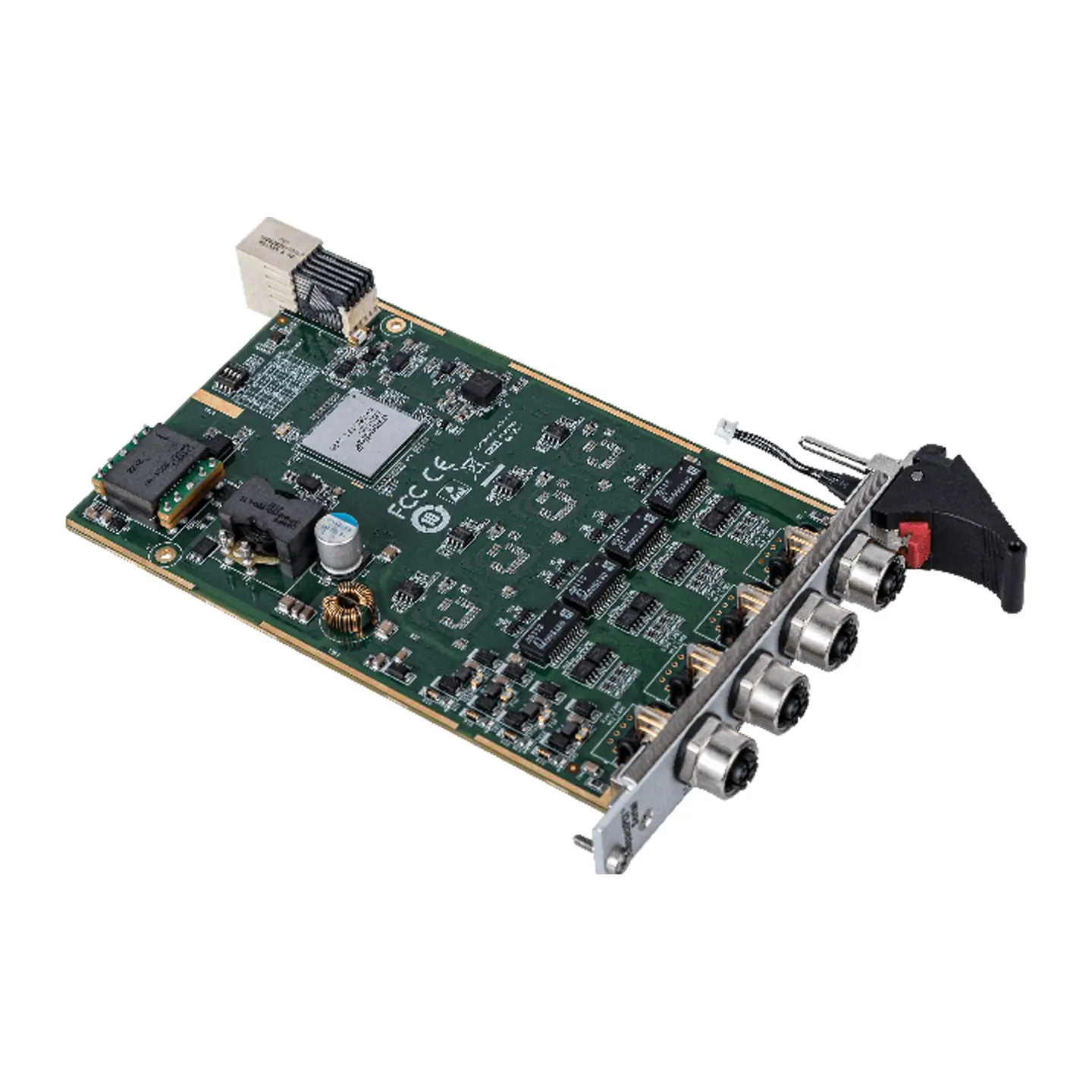

| MIC-3860-B1S1 | MIC-3860 3U CPCI-S 4 x 2.5 Gbps M12 Ethernet board | No |
| MIC-3860-C1S1 | MIC-3860 3U CPCI-S 4 x 2.5 Gbps RJ-45 Ethernet board | Yes |
| MIC-3860-D1S1 | MIC-3860 3U CPCI-S 4 x 2.5 Gbps M12 Ethernet board | Yes |
Note: PoE plus (802.3 at) is available by user request.
| CPU Board | Description |
| MIC-330 Series | 3U CPCI-Serial 9th Gen. Intel® processor blade |
| MIC-330V2 Series | 3U CPCI-Serial Intel® 11th Gen. processor blade |
| Chassis & Power | Description |
| MIC-300A Series | 3U CPCI-Serial 84HP / 44HP width, 3U / 4U height chassis, with 8-slot backplane & mini fan |
| MIC-3890 | 3U CPCI-Serial DC/DC power module, 110 V input / 12 V & 5 V output, 250 W |
| XMIC330-HAC300S | 3U CPCI-Serial AC/DC power module, 12 V & 5 V output, 300 W |
