Processor System |
CPU | Intel Atom® X7433RE,4C/9W, Max Turbo Frequency: 3.4GHz, ECC Intel Atom® X7835RE,8C/12W, Max Turbo Frequency: 3.6GHz, ECC |
| BIOS | AMI 256Mb SPI flash | |
| Memory | Technology | DDR5 4800 MT/s, ECC |
| Max. Capacity | Up to 16GB on board | |
|
Graphics |
Controller | Intel® UHD Graphics |
| I/O connector | 1 x DisplayPort | |
| Resolution | 4096 x 2160@60Hz | |
|
Ethernet |
Interface |
Up to three Ethernet in total
2 x 2.5GBASE-T RJ45/M12 on front panel 1 x 2.5GBASE-T to backplane via P6 |
| Controller | Intel i226IT 2.5Gbps Ethernet Controller | |
| I/O Connector | 2 x RJ45/M12 to front 4HP W/ 2.5Gbps speed | |
|
Storage |
Mode | SATA 3.0 |
| Channels | 1 x onboard 2280/2242 M.2 type module( (M-key socket) 1 x channel to CPCI-S backplane | |
|

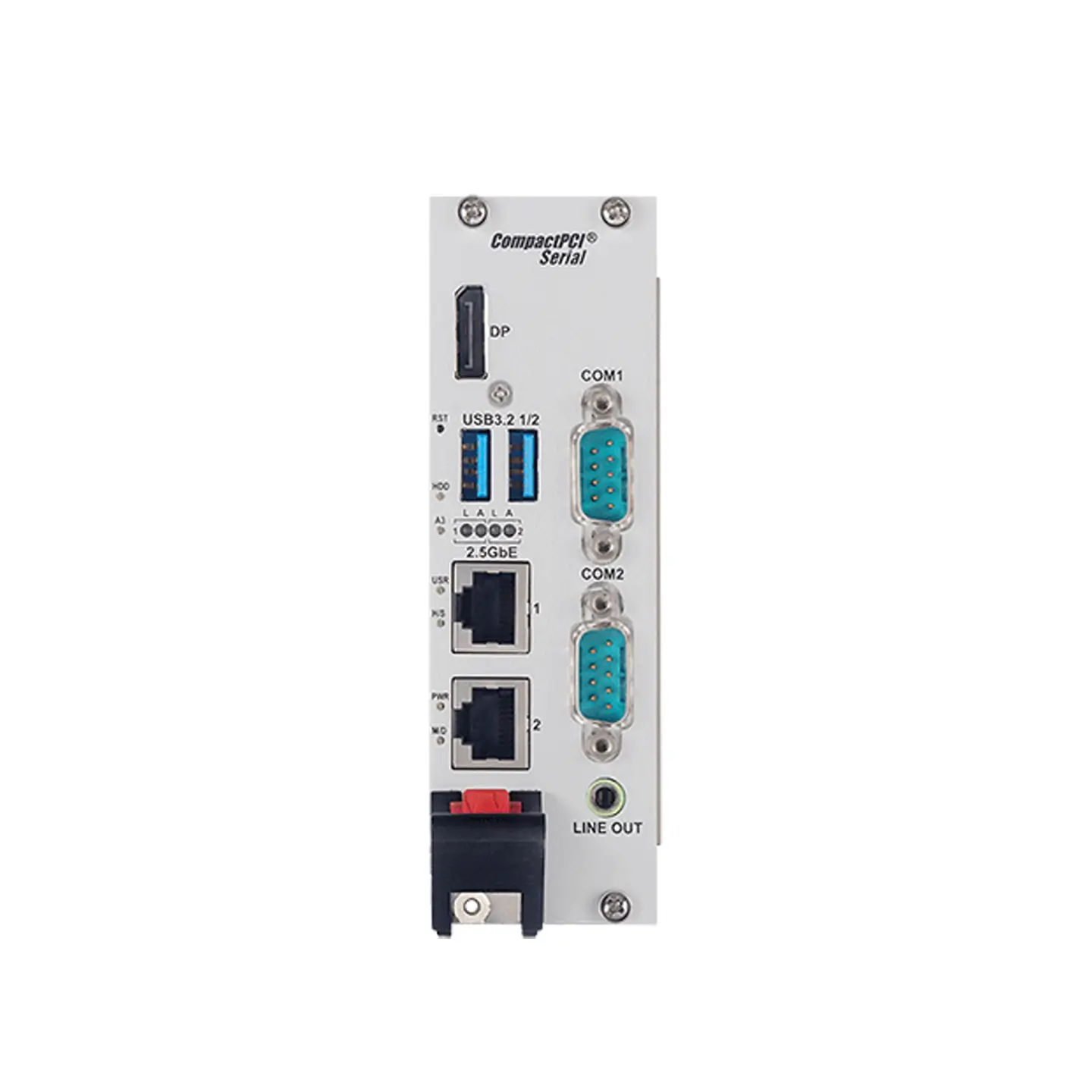

Front I/O |
USB | 2x USB3.2 with gen1 speed |
| LAN | 2 x 2.5GBASE-T RJ45/M12 on 4HP, With TSN/TCC function | |
|
Front Panel LEDs |
1 x blue LED for hot swap 1 x green LED for PWR
1 x green LED for master/drone 1 x yellow LED for HDD 2 x green/orange LEDs for LAN speed(green indicates 2.5Gbps; orange indicates 1Gbps) 3 x green LEDs for LAN activity |
|
| Buttons | System reset button | |
|
CompactPCI Serial Backplane Resources |
PCIe | 4 x PCIe x1 |
| SATA | 1 x SATA 3.0 | |
| USB | 1 x USB3.2 @ 5Gbps speed
4 x USB2.0 @ 480MHz speed |
|
| GbE | 1 x 2.5 GbE to backplane via P6 |
|
To P1-P6 Signal |
P1 | 1 x PCIe3.0 x 1, 1 x SATA 3.0, 1 x USB3.2 gen1, 1 x USB2.0, reserve 1 x I2C, SMBUS | |
| P2 | 1 x PCIe3.0 x 1, 3 x USB2.0, 1 x UART, reserve 5 x GPIO | ||
| P3 | n.a | ||
| P4 | 2 x PCIe2.0 x 1 | ||
| P5 | 4 x PCIe clock REQ | ||
| P6 | 1 x 2.5GbE | ||
| BIOS | Boot Options | SATA, USB, network (PXE) eMMC (by option BOM) | |
| Watchdog Timer | Output | Local reset | |
| Interval | Programmable 1s~255s | ||
| Security | Trusted Platform Module | Reserved TPM 2.0 function | |
| Power Requirement | Configuration | CPU TDP 9W/12W | |
| Consumption | 22W/25W | ||
| Operating System | Compatibility | Windows 11, Windows 10, Ubuntu 22.04, Vxworks | |
| Physical | Dimension & Weight | 8HP, 160.00 x 100.00 mm
700g |
|
|
Environment |
Operating | Non-operating | |
| Temperature | -40 ~ 70 °C (-40 ~ 158 °F), fanless | -40 ~ 85 °C (-40 ~ 185 °F) | |
| Humidity | 95% @40 °C, non-condensing | 95 % @ 60 °C, non-condensing | |
| Vibration | 2Grms | ||
| Shock | 10 G, 11ms, each axis three times, operation mode | ||
| Regulatory | Conformance | FCC Class A, CE, RoHS | |
| Compliance | Standards | PICMG® CompactPCI® Serial | |
| Intel® CPU Model Number | # Cores | Max Turbo Frequency | Cache | Memory Types | ECC Support | TDP |
| Intel Atom® X7433RE | 4 | 3.4GHz | 6MB | DDR5-4800 | Yes | 9W |
| Intel Atom® X7835RE | 8 | 3.6GHz | 6MB | DDR5-4800 | Yes | 12W |
|

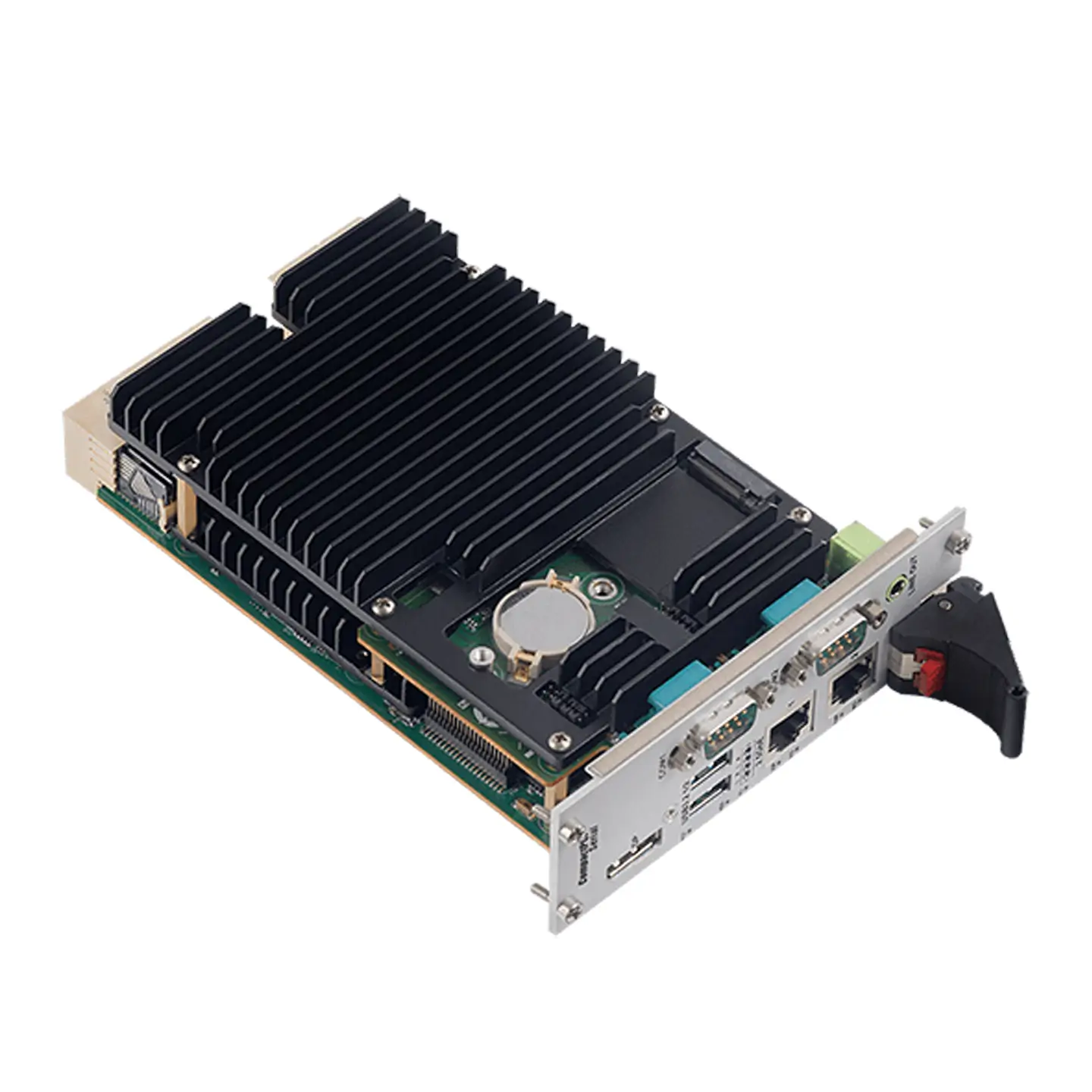

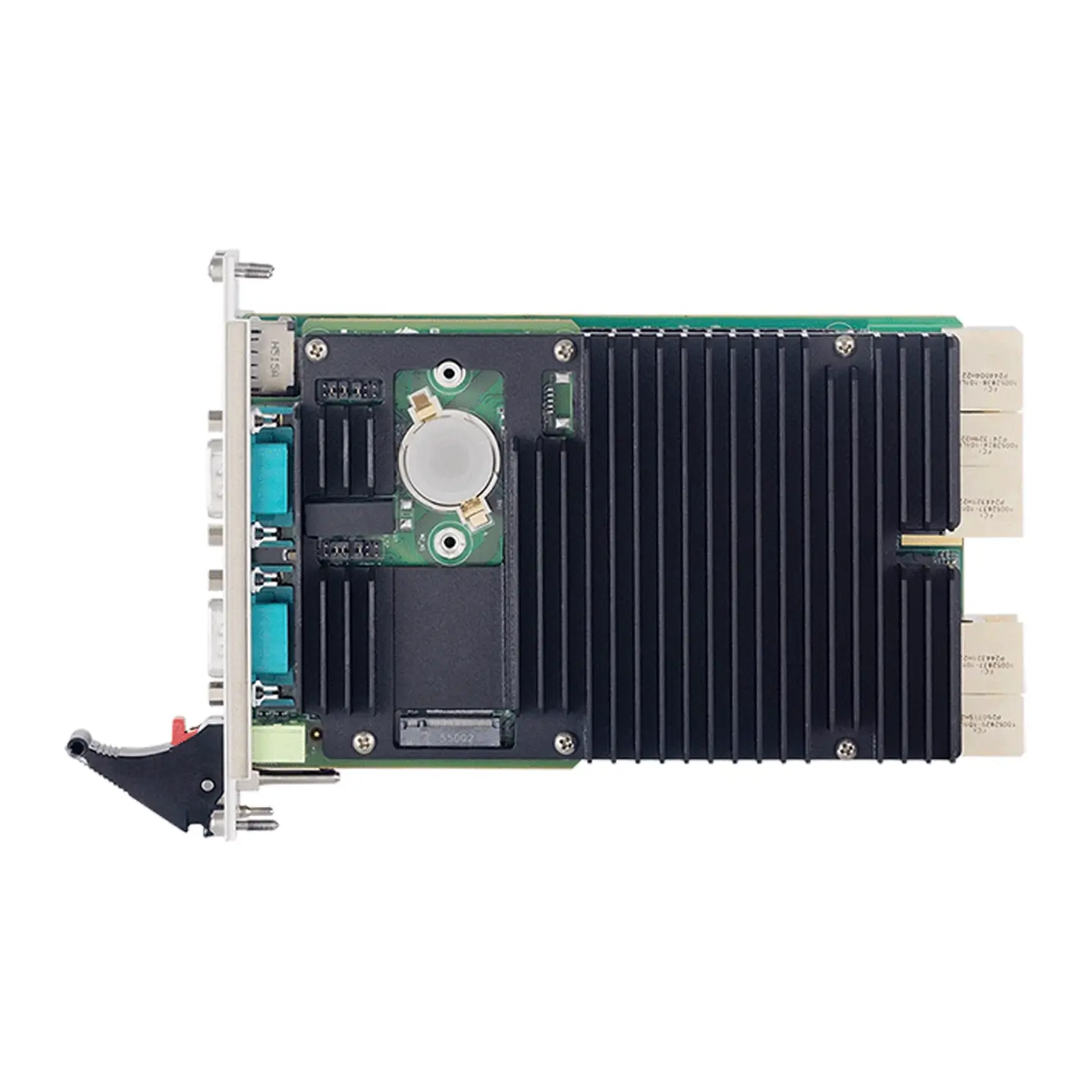

System board |
Front Panel | Onboard Features | Others | |||||||
| DP | USB
(Type-A) |
LAN (RJ45) | LAN (M12) | COM | Line out | CPU | Memory Onboard | SATA (M.2) | To P6 Conn. GbE Signal | |
| MIC-336-A1D1 | 1 | 2 | 2 | - | 2 | 1 | Atom® X7433RE | 16GB, ECC | 1 | 1 |
| MIC-336-B1D1 | 1 | 2 | - | 2 | 2 | 1 | Atom® X7835RE | 16GB, ECC | 1 | 1 |
| Peripheral board | Description |
| MIC-3954D | 3U CPCI-Serial quad M.2 carrier board |
| MIC-3954E | 3U CPCI-Serial quad Mini-PCIe carrier board for Wi-Fi/LTE/ GPS module |
| MIC-3954F | 3U CPCI-S 4 x USB typeA, 1 x M.2 E key carrier board |
| MIC-3820 | 3U CPCI-Serial 2.5’’ SSD carrier board |
| MIC-3811 | 3U CPCI-Serial dual mini PCIe carrier for wifi/BT/i-door module |
| MIC-3860 | 3U CPCI-Serial 4 x RJ45/4 x M12 2.5 Gbps LAN board |
| MIC-3840 | 3U CPCI-Serial 8-port Serial Communication Board |
| MIC-300B | 3U CPCI-Serial fanless chassis |
| MIC-3890DC | 3U CPCI-Serial DC-DC power module, 110V in / 12V out, 300W |
| MIC-3890AC | 3U CPCI-Serial AC-DC power module, 12 V & 5 V output, 300 W |
