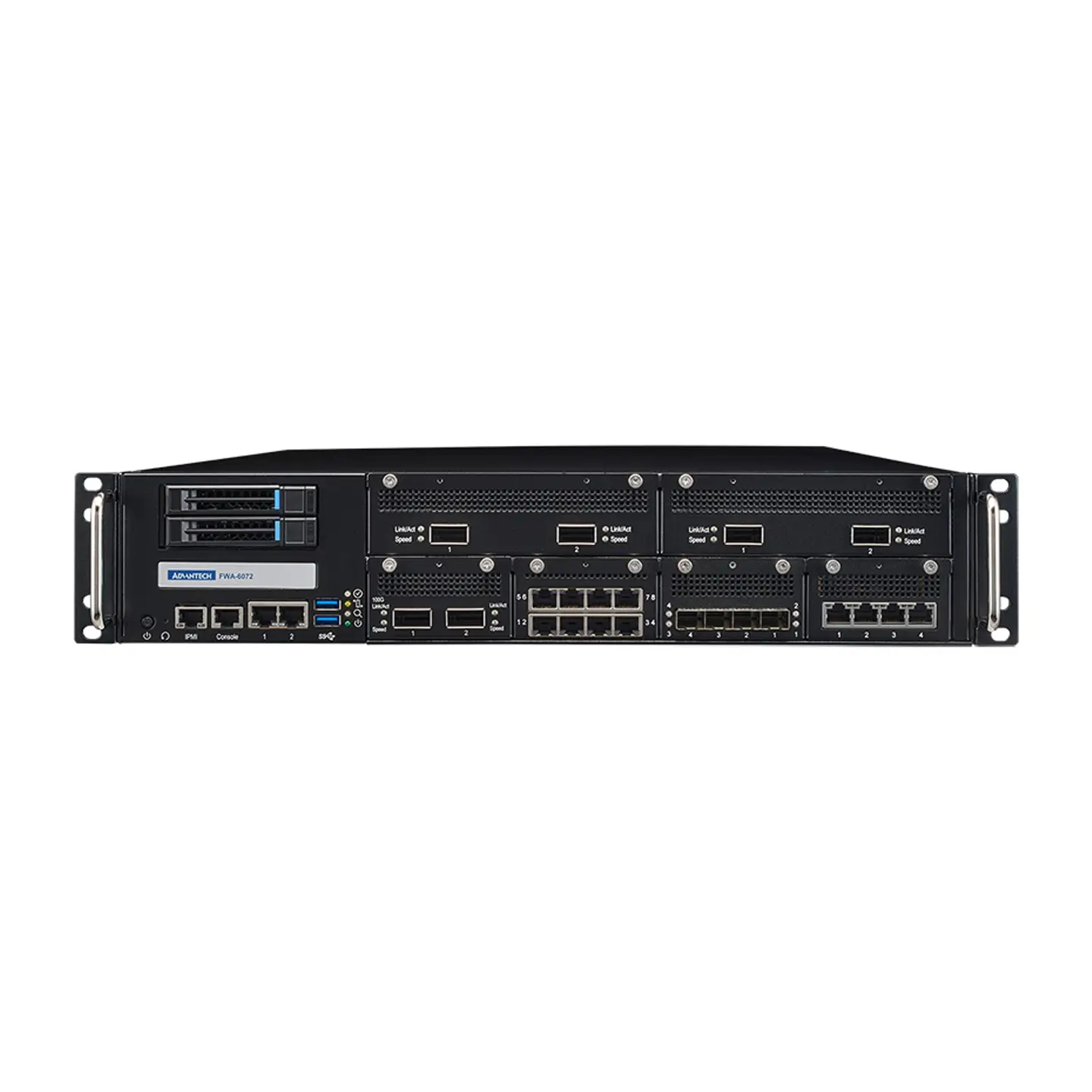

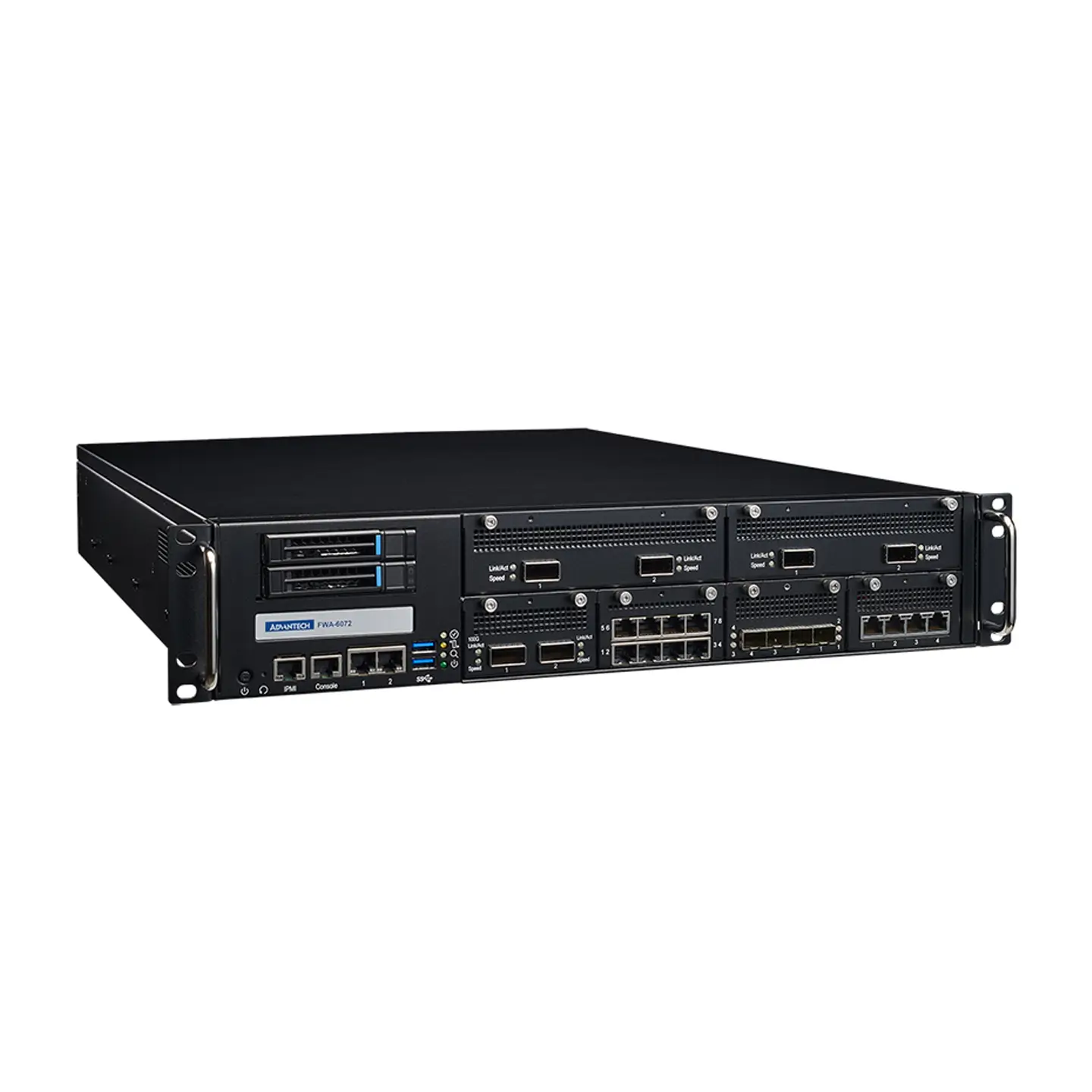

研华FWA-6072 是一款基于 Intel® 第4/第5代 Xeon® 可扩展处理器用于网关和NGFW的2U机架式网络应用平台，兼容IPMI v2.0，具有web界面，8个研华网络模块扩展，带PCIe Gen5带宽
如需帮助,请联系我们
免费电话：400-880-8951
公司邮箱：advavee@outlook.com
咨询客服：一站式采购
批量采购定制咨询，请发送您的需求，我们将立即回复。
Specifications
| System P/N | FWA-6072-00A1R | |
| Form Factor | 2U Rack Mount | |
|
Processor System |
Processor | 4th & 5th Generation Intel® Xeon® Scalable Processors |
| Core Count | Up to 60C | |
| Base Frequency | Up to 3.7 GHz | |
| Chipset | C741 | |
| BIOS | AMI UEFI | |
| Virtualization | Intel® VT-Redirect Protection, Intel® S-IOV | |
|
Memory |
Technology | DDR5, up to 5600 MT/s |
| Max. Capacity | 1024 GB (64 GB per slot) | |
| Socket | 16 x 288-pin DIMM | |
| ECC Support | RDIMM | |
| Networking | Controller | 2 x Intel i210 |
| 1GbE | 2 x 1GbE RJ45 | |
| Expansion Slot | PCIe x16 | 1 x PCIe Gen4 x16 FH/HL |
| NMC | 8 x PCIe Gen5 x8 | |
| IPMI | IPMI 2.0 and Redfish compliant | |
| Storage | 2.5” Bay | 2 x External 2.5" HDD/SSD |
| M.2 1 x M.2 2280 M-Key for SATA SSD; 1 x M.2 2280 M-Key for SATA SSD or PCIe Gen3 x4 NVME | ||
|
I/O |
Console | 1 x RJ45 type console |
| USB | 2 x USB 3.0 | |
| LED Indicator | 1 x Power LED, 1 x Alert LED, 1 x Locate LED, 1 x Software-defined LED | |
| Display | 1 x VGA port | |
| Button | 1 x Power button, 1 x Software-defined button | |
| Others | 1x dedicated 1GbE LAN for IPMI | |
| TPM | TPM 2.0 | |
|
Power Supply |
Power Type | AC Redundant CRPS (Option: DC Redundant CRPS) |
| Watts | 800 W | |
| Input | AC: 100-240V~, 8-4A, 50-60Hz (Option: DC -48V) | |
| Connector | AC 3pin plug | |
|
Environment |
Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature | -40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% Non-Condensing Humidity | |
| Vibration Resistance (Operation) | 5-500 Hz, 0.3 Grms, 3 axes, 1 hr/per axis | |
| Shock Protection (Operation) | 10 G, 11 ms | |
| Cooling | 3 x Hot swap 8038 mm fan | |
|
Mechanical |
Construction | SGCC |
| Mounting | Rackmount | |
| Dimensions (W x H x D) | 438 x 88 x 600 mm (17.2" x 3.4" x 23.6") | |
| Weight (G.W.) | 15kg (33.06 lbs) | |
| OS Support | Linux (CentOS, Red Hat, Ubuntu, Fedora) | |
|
Advantech S/W Packages |
1. ALBPCU
2. APOECU 3. ipmitool 4. Server iManager (Linux base) -Health Guard -Diagnostic Framework -Network device identifier (NDI) 5. Quick Start Linux Image |
|
| Certification | EMC/Safety | CE, FCC, CB, UL, CCC |
Ordering Information
| Part Number | Processor | DDR5 PC | H | QAT | NMC
Slot |
PCIe
Slot |
Storage Bay | USB3.0 | IPMI
Port |
Console Port | LAN Port | System Fan | PSU | ||
| 1G RJ45 | 1G SFP | 10G SFP+ | |||||||||||||
|
FWA-6072-00A1R |
Single socket for 4th & 5th Gen. Intenl Xeon scalable processors |
16 C7 |
41 |
By CPU SKU |
8 |
1 |
2 |
2 |
1 |
1 |
2 |
0 |
0 |
3 |
2 |
Packing List
| Part Number | Description |
| 1700020691-01 | M CABLE D-SUB 9P(F)/RJ45 220cm |
| 1651003738-01 | IC SKT LGA 4677 SKT E EGS Carrier Assy,E1A |
| 1651003739-01 | IC SKT LGA 4677 SKT E EGS Carrier Assy,E1B |
| 1970005574T001 | CPU HS for FWA-6072, Up to 300W |
| 1930008928 | Screws for slide rail installation |
Optional Accessories
| Part Number | Description |
| 1702002600 | Power cord 3P 180 cm, USA |
| 1702002605 | Power cord 3P 180 cm, Europe |
| 1702031801 | Power cord 3P 180 cm, UK |
| 1700000237 | Power cord 3P 180 cm, JP |
| 1700009652 | Power cord 3P 180 cm, China |
| 1930008928 | Screws for slide rail installation (Order 10 pieces per system) |
| 968DE00026 | Slide rail for post to post dimension 558.9 - 850.9mm |
| FWA-3050-800WPSU | 800W DC Power kit |
| 1700027334-01 | USB for RJ45 console cable, 190cm |
