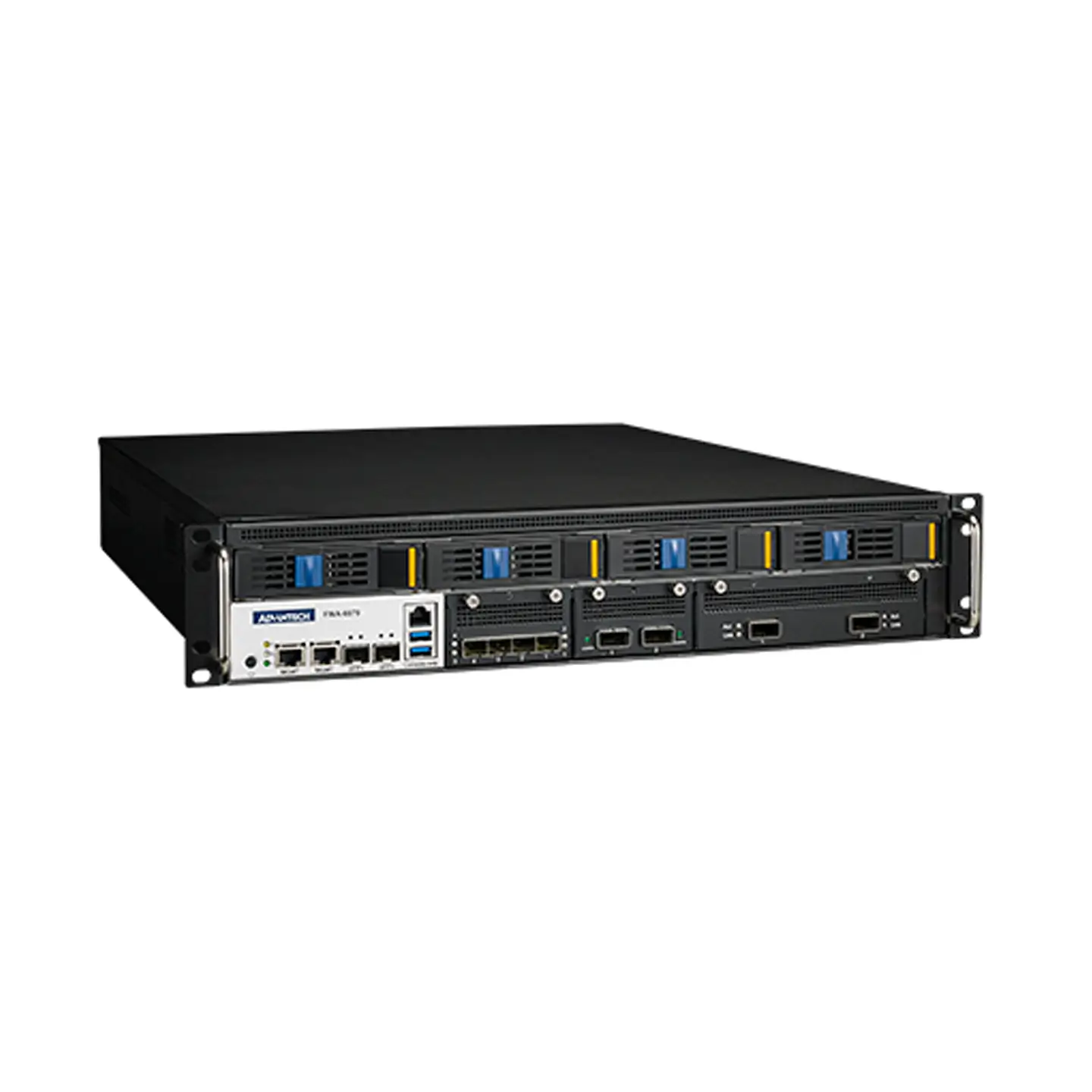

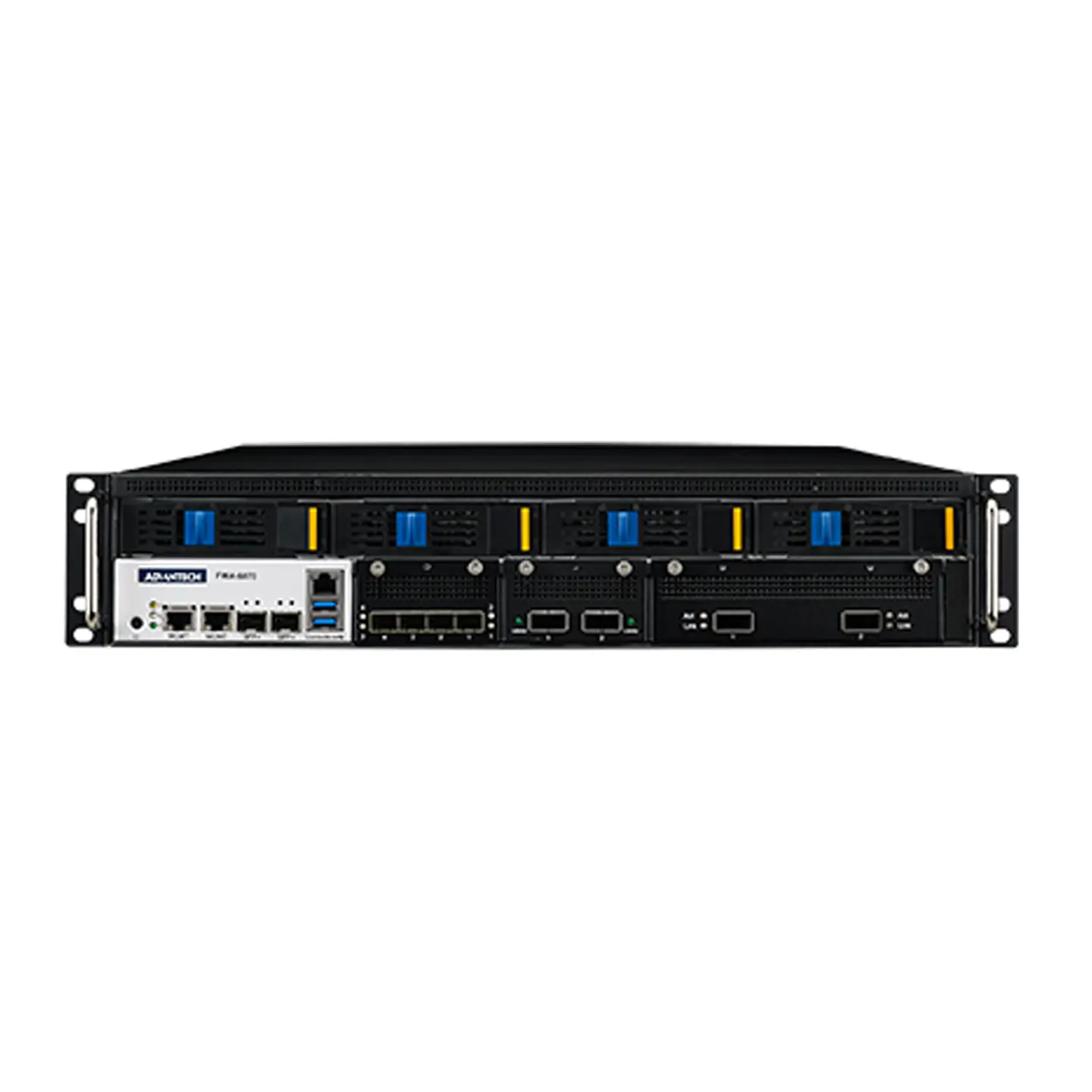

研华WISE-STACK-600 是一款基于Intel®Xeon®可扩展系列处理器的2U机架式网络应用平台,支持12 x DDR4 2133/2400/2666 ECC，内存最高支持384 GB,符合IPMI 2.0的远程管理
分类： 2U Rackmount Network Appliances, 2U 上架式网络设备, 云、网络和服务器, 网络安全设备 标签： FWA-6070
如需帮助,请联系我们
免费电话：400- 880- 8951
邮箱：advavee@outlook.com
咨询客服：一站式采购
批量采购定制咨询，请发送您的需求，我们将立即回复。
Specifications
| System P/N | FWA-6070S-00A1R FWA-6070SQ-00A1R FWA-6070N-00A1R | |
| Form Factor | 2U - Rack Mount | |
|
Processor System |
Processor | Intel® Xeon® Platinum 8100, Gold 6100 & 5100, Silver 4100 and Bronze 3100 processors |
| Core Number | 8C/10C/12C/14C/16C/18C/20C/22C/24C/26C/28C | |
| Frequency | 2.0GHz/2.1GHz/2.2GHz/2.3GHz/2.4GHz/2.6GHz/3.0GHz/3.2GHz/3.4GHz | |
| L2 Cache | 30MB ~ 75 MB | |
| Chipset | C621 (without QAT) C626 (with up to 40Gb/s QAT) C621 (without QAT) | |
| BIOS | AMI Efi 64Mbit | |
| Virtualization | VT-x, VT-d, EPT | |
|
Memory |
Technology | DDR4, 2133/2400/2666MHz |
| Max.Capacity | 384GB | |
| Socket | 12 x 288-pin RDIMM | |
| ECC Support | Yes | |
|
Networking |
Controller | 1 x Intel i210-AT |
| 1GbE | 2 x 10/100/1000 Mbps RJ45 via Intel i210-AT chip | |
| 10GbE | N/A 2 x 10G SFP+ via Intel C626 N/A | |
| LAN bypass | LAN bypass is supported by NMC | |
| Expansion | PCIe | 2 x PCIe x8 (FH/HL) 1 x PCIe x8 (FH/HL) N/A |
| NMC | 4 4 8 (6 x PCIe x8 ; 2 x PCIe x4) | |
|
Storage |
2.5"HDD/SSD | N/A |
| 3.5"HDD | 4 x External 4 x External 2 (Internal)
1 x Internal 1 x Internal |
|
| m.2 SSD | 1 x M.2 2280 | |
| Others | 1 x mSATA | |
|
I/O |
Console port | 1 |
| USB3.0 | 2 | |
| LED Indicator | 1 x PWR_LED, 1 x Alert_LED, 1 x SW_LED | |
| Others | 1 x Power Button | |
| TPM | Modularized TPM 1.2 (TPM 2.0 optional) | |
| LCD Module | N/A | |
|
Power |
Power Type | AC, redundant |
| Watts | 650W | |
| Input | 100V ~ 240V | |
| Connector | CRPS | |
|
Environment |
Operating Temperature (air flow 0.7 m/ sec) | 0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature | -20 ~ 80° C (-4 ~ 167° F) and 40° C @ 95% RH Non-Condensing | |
| Vibration Resistance | 0.3 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis | |
| Shock Protection | 10G, IEC-60068-2-27, half sine, 11ms duration | |
| Cooling | 2 x 80CM height | |
|
Mechanical |
Construction | Steel |
| Mounting | 2U Rackmount | |
| Dimensions (W x H x D) | 438 x 88 x 550 (mm) | |
| Weight | 20KG | |
| OS Support | Linux (CentOS, Red Hat, Ubuntu) | |
| Advantech S/W Packages | System diagnostic tool and quick start image | |
| IPMI | IPMI v2.0 compliant, with web interface, iKVM on request (Advantech IPMI N/A
Core) |
|
| Certification | CE/FCC/CB/UL/CCC | |
Ordering Information
| Part No. | CPU | DDR4 | PCH | QAT | PCIe
slot |
NMC
slot |
USB 3.0 | MGMT port | 10G SFP+ | Console | BMC | LCM | VGA | PSU |
|
FWA-6070S-00A1R |
1 socket for Intel® Xeon® Scalable Processors |
12 |
C621 |
No |
2 |
4 |
2 |
2 |
N/A |
1 |
Yes |
N/A |
N/A |
650W AC |
| FWA-6070SQ-00A1R | 1 socket for Intel® Xeon® Scalable Processors | 12 | C626 | Yes | 1 | 4 | 2 | 2 | 2 | 1 | Yes | N/A | N/A | 650W AC |
| FWA-6070N-00A1R | 1 socket for Intel® Xeon® Scalable Processors | 12 | C621 | No | N/A | 8 | 2 | 2 | N/A | 1 | N/A | N/A | N/A | 650W AC |
Packing List
| Part Number | Description |
| 1700020691-01 | Console cable D-SUB9P(F)/RJ45 220 cm |
Optional Accessories
| Part Number | Description |
| 1702002600 | Power cord 3P 180cm, USA |
| 1702002605 | Power cord 3P 180cm, Europe |
| 1702031801 | Power cord 3P 180cm, UK |
| 1700000237 | Power cord 3P 180cm, JP |
| 1700009652 | Power cord 3P 180cm, China |
| 9692326040E | TPM 2.0 |
| 968DE00067 | Slide rail |
