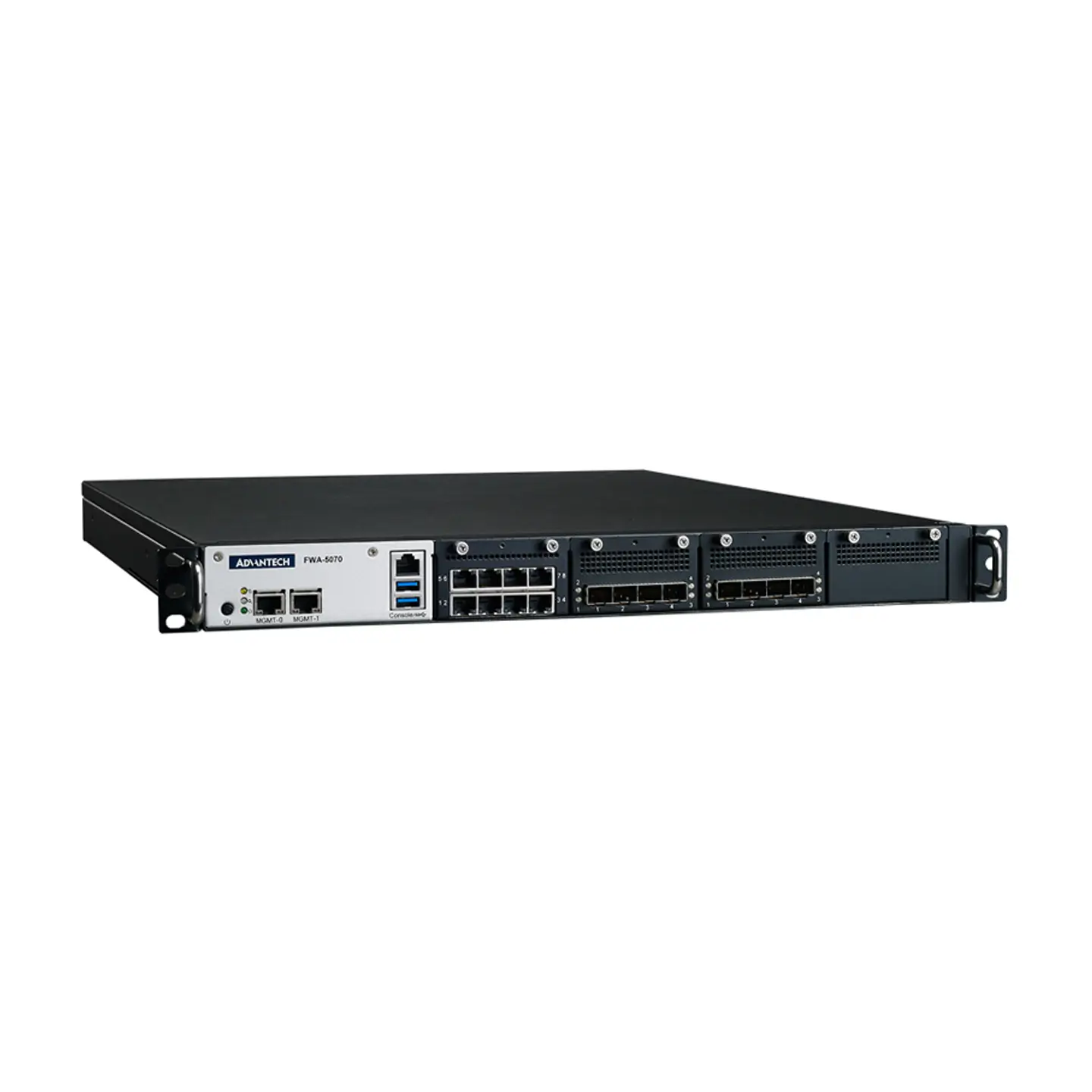

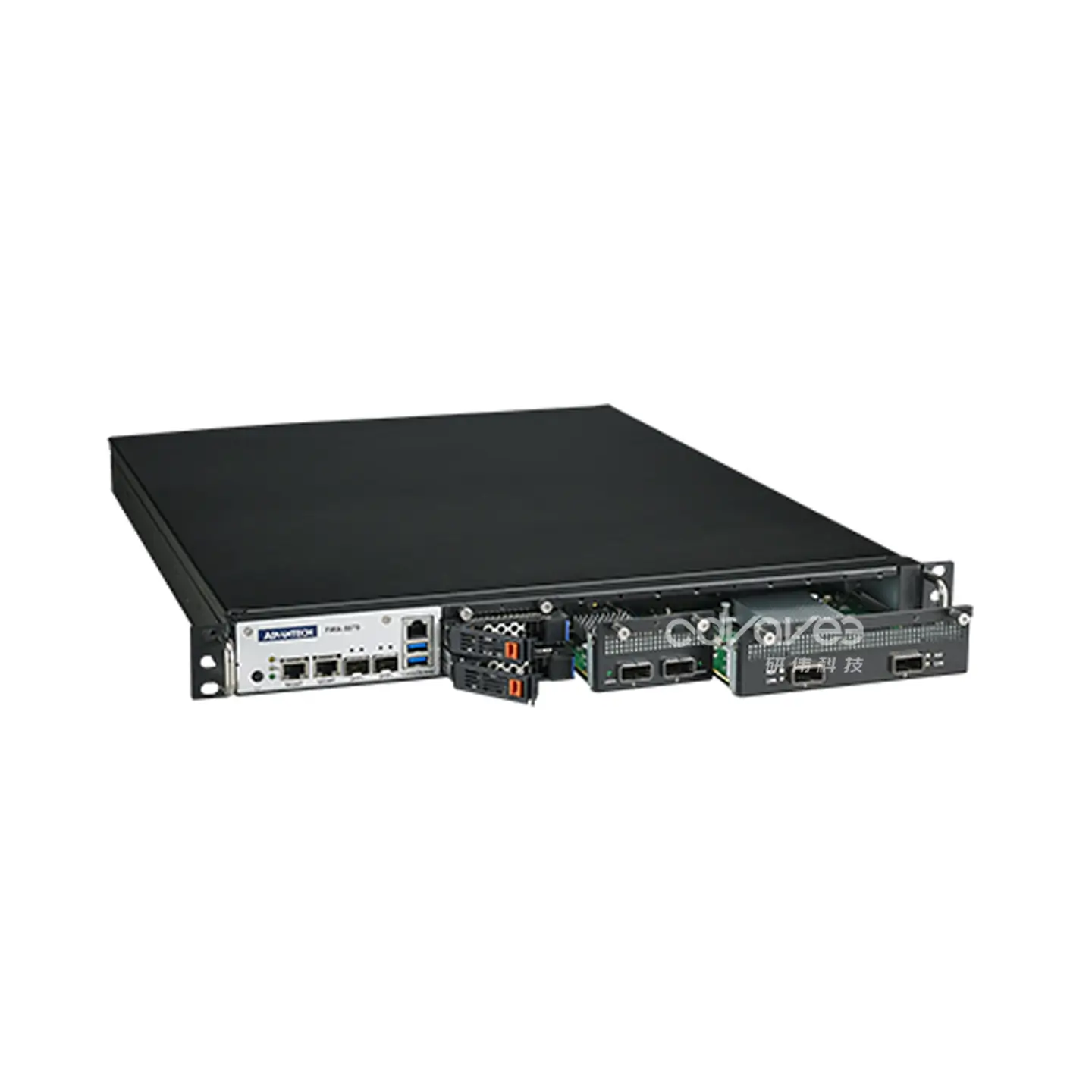

研华FWA-5070 是一款基于Intel®Xeon®处理器可扩展系列1U机架式网络应用平台，最高支持4个NMC插槽，第一代/第二代Intel®Xeon®可扩展处理器，最高165W，符合IPMI 2.0的远程管理
如需帮助,请联系我们
免费电话：400-880-8951
公司邮箱：advavee@outlook.com
咨询客服：一站式采购
批量采购定制咨询，请发送您的需求，我们将立即回复。
Specifications
| System P/N | FWA-5070L-00A1R FWA-5070U-00A1R | |
| Form Factor | 1U- Rack Mount | |
|
Processor System |
Processor | Intel® Xeon® Platinum 8100/8200, Gold 6100 & 5100/6200 & 5200, Silver 4100/4200 and Bronze 3100/3200 processors |
| Core Number | 8C/10C/12C/14C/16C/18C/20C/22C/24C/26C/28C | |
| Frequency | 2.0GHz/2.1GHz/2.2GHz/2.3GHz/2.4GHz/2.6GHz/3.0GHz/3.2GHz/3.4GHz | |
| L2 Cache | 30MB ~ 75 MB | |
| Chipset | C621 (without QAT) C626 (with up to 40Gb/s QAT) | |
| BIOS | AMI Efi 64Mbit | |
| Virtualization | VT-x, VT-d, EPT | |
|
Memory |
Technology | DDR4, 2133/2400/2666MHz |
| Max.Capacity | 384GB | |
| Socket | 12 x 288-pin RDIMM | |
| ECC Support | Yes | |
|
Networking |
Controller | 1 x Intel i210-AT |
| 1GbE | 2 x 10/100/1000 Mbps RJ45 via Intel i210-AT chip + | |
| 10GbE | N/A 2 x 10G SFP via Intel C626 | |
| LAN bypass | LAN bypass is supported by NMC | |
| Expansion | PCIe | 1 x PCIex16(FH/HL) 1 x PCIe x8 (FH/HL) |
| NMC | 4 4 | |
|
Storage |
2.5"HDD/SSD | 2 (Internal) |
| 3.5"HDD | N/A N/A | |
| m.2 SSD | 1 x M.2 2280 | |
| Others | N/A | |
|
I/O |
Console port | 1 |
| USB3.0 | 2 | |
| LED Indicator | 1 x PWR_LED, 1 x Alert_LED, 1 x SW_LED | |
| Others | 1 x Power Button | |
| TPM | Modularized TPM 1.2 (TPM 2.0 optional) | |
| LCD Module | N/A | |
|
Power |
Power Type | AC, redundant |
| Watts | 650W | |
| Input | 100V ~ 240V | |
| Connector | CRPS | |
|
Environment |
Operating Temperature (air flow 0.7 m/sec) | 0 ~ 40 °C (32 ~ 104 °F) |
| Non-operating Temperature | -20 ~ 80 °C (-4 ~ 167 °F) and 40 °C @ 95% RH Non-Condensing | |
| Vibration Resistance | 0.3 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis | |
| Shock Protection | 10G, IEC-60068-2-27, half sine, 11ms duration | |
| Cooling | 3 x smart FAN module with smart FAN | |
|
Mechanical |
Construction | Steel |
| Mounting | 1U Rackmount | |
| Dimensions (W x H x D) | 438 x 44 x 550(mm) | |
| Weight | 20KG | |
| OS Support | Linux (CentOS, Red Hat, Ubuntu) | |
|
Advantech S/W Packages |
QuickStart Linux Image (CentOS based reference BSP):
§ afru § ipmitool § LCD4Linux § Advanced LBP Utility § Intel DPDK § Intel QAT § DUI (Offline Diagnostics) Individual packages: § Advanced LBP Library § DUI (Offline Diagnostics) |
|
| IPMI | IPMI v2.0 compliant, with web interface, iKVM on request (Advantech IPMI Core) | |
| Certification | CE/FCC/CB/UL/CCC | |
Ordering Information
| Part No. | CPU | DDR4 | PCH | QAT | PCIe
slot |
NMC
slot |
USB 3.0 | MGMT
port |
10G SFP+ | Console | BMC | LCM | VGA | PSU |
|
FWA-5070L-00A1R |
1 socket for Intel® Xeon® Scalable Processors |
12 |
C621 |
No |
1 |
4 |
2 |
2 |
N/A |
1 |
Yes |
N/A |
N/A |
650W AC |
|
FWA-5070U-00A1R |
1 socket for Intel® Xeon® Scalable Processors |
12 |
C626 |
Yes |
1 |
4 |
2 |
2 |
2 |
1 |
Yes |
N/A |
N/A |
650W AC |
Packing List
| Part Number | Description |
| 1700020691-01 | Console cable D-SUB9P(F)/RJ45 220 cm |
Optional Accessories
| Part Number | Description |
| 1702002600 | Power cord 3P 180cm, USA |
| 1702002605 | Power cord 3P 180cm, Europe |
| 1702031801 | Power cord 3P 180cm, UK |
| 1700000237 | Power cord 3P 180cm, JP |
| 1700009652 | Power cord 3P 180cm, China |
| 98923260J0E | TPM 2.0 |
| 968DE00067 | Slide rail |
