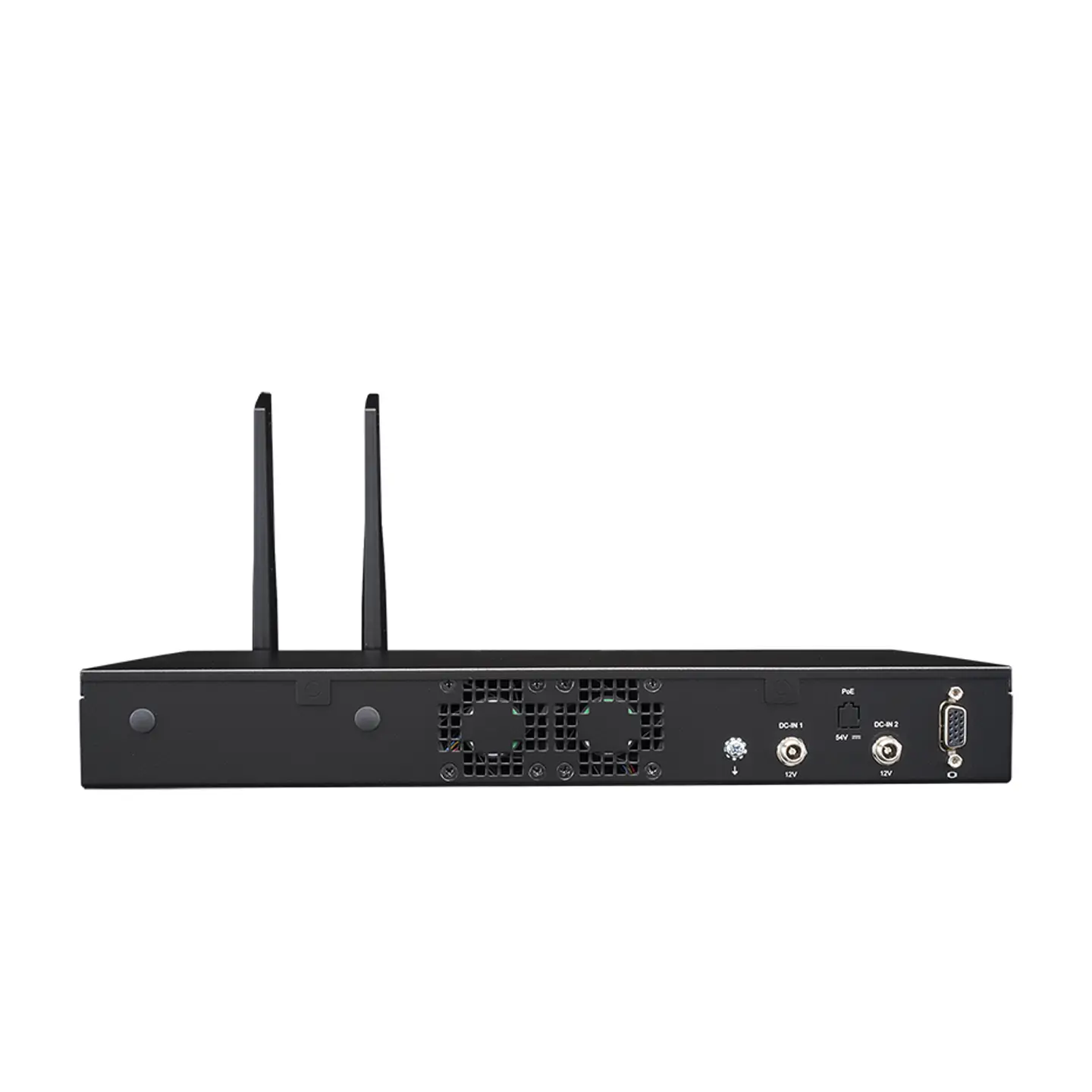

FWA-1081

研华FWA-1081 是一款基于AMD Ryzen™ Embedded V3000处理器的桌面网络应用平台，搭载AMD Ryzen™ V3C44/V3C48，最高8核/16线程，通过RF套件支持4G LTE/5G模块（可选）

搭载AMD Ryzen™ V3C44/V3C48，最高8核/16线程
2 x DDR5 SODIMM 最高64GB
12 x GbE RJ45，2 x 2.5GbE RJ45，4 x 10GbE SFP+，带2对LAN bypass
通过RF套件支持4G LTE/5G模块（可选）
运行速度 3.2/3.5 GHz,CPU性能优于相似的台式机型

产品型录PDF

如需帮助,请联系我们

免费电话：400-880-8951

公司邮箱：advavee@outlook.com
咨询客服：一站式采购

批量采购定制咨询，请发送您的需求，我们将立即回复。

产品资讯

Specifications

System P/N	FWA-1081L-4CA1S		FWA-1081F-8CA1S
Form Factor	Tabletop
Processor System	Processor	AMD Ryzen™ V3C44	AMD Ryzen™ V3C48
	Core Count	4	8
	Base Frequency	3.5 GHz	3.3 GHz
	BIOS	AMI UEFI
Memory	Technology	DDR5
	Max. Capacity	64GB
	Socket	2 x 262-pin DIMM
	ECC Support	ECC SODIMM
Networking	Controller	2 x 10GbE SFP+ (via SoC) 8 x 1GbE RJ45 (via i350) 2 x 2.5GbE RJ45 for MGMT (via i226)	2 x 10GbE SFP+ (via X710) 2 x 10GbE SFP+ (via SoC) 12 x 1GbE RJ45 (via i350, with 2 pairs of LAN bypass) 2 x 2.5GbE RJ45 for MGMT (via i226)
	12 x 1GbE RJ45
	2.5GbE	2 x 2.5GbE RJ45	2 x 2.5GbE RJ45
	10GbE	2 x 10GbE SFP+	4 x 10GbE SFP+
	LAN Bypass	N/A	Two pair of LAN bypass
Expansion	M.2 (Except SSD)	1 x M.2 2230 E-Key for WiFi module (Optional) 1 x M.2 3042/3052 B-key for 4G/5G LTE module with 2 x antenna holes(Optional)
IPMI	IPMI 2.0 and Redfish compliant 1 x dedicated 1GbE LAN for IPMI port
Storage	M.2 (SSD)	2 x M.2 2280 M-key for SATA 3.0 SSD
I/O	Console	1 x RJ45 type console
	USB	2 x USB 3.0 ports
	LED Indicator	1 x SW-defined LED (Amber/Green) 1 x Altert LED by IPMI (Amber) 1 x ID LED by IPMI (Blue)
	Video	1 x VGA port
	Button	1 x Power button with LED indication (Green) 1 x SW-defined button
	Others	1 x RJ45 type console
TPM	Support by TPM 2.0 module (Optional)
Power Supply	Power Type	External power adapter (Optional for dual adapters)
	Watts	150 W
	Input	100-240 V ~ 2.5A 50-60 Hz
	Connector	AC 3pin plug
Environment	Operating Temperature	0~40 °C (32~104 °F)
	Non-operating Temperature	-40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% non-condensing humidity
	Vibration Resistance (Operation)	5-500 Hz, 0.3 Grms, 3 axes, 1 hr/per axis
	Shock Protection (Operation)	10 G, 11 ms
Cooling	2 x System fans with smart fan feature
Mechanical	Metallic Material	SGCC
	Mounting	Optional rackmount kit
	Dimensions (W x H x D)	340 x 241.86 x 43.7mm (13.39" x 9.52" x 1.72")
	Weight (G.W.)	3.5 kg (7.7 lb)
OS Support	Linux OS Only UEFI FW and UEFI aware Linux OS
Advantech S/W Pakhages	ALBPCU APOECU ipmitool Server iManager (Linux base) -Health Guard -Diagnostic Framework -Network device identifier (NDI)
Certification	EMC/Safety	CE, FCC, CB, UL, CCC

Ordering Information

Part Number	Processor	DDR5	Storage Bay	USB3.0	IPMI Port	Console Port	LAN Port			System Fan	PSU	POE
Part Number	Processor	DDR5	Storage Bay	USB3.0	IPMI Port	Console Port	1G RJ45	2.5G RJ45	10G SFP+	System Fan	PSU	POE
FWA-1081F-8CA1S	AMD Ryzen™ V3C48 processors	2	2	2	1	1	12	2	4	2	1	Optional
FWA-1081L-4CA1S	AMD Ryzen™ V3C44 processors	2	2	2	1	1	8	2	2	2	1	Optional

Packing List

Part Number	Description
1700020691-01	M CABLE D-SUB 9P(F)/RJ45 220cm

Accessories

Part Number	Description
1702002600	Power cord 3P 180 cm, USA
1702002605	Power cord 3P 180 cm, Europe
1702031801	Power cord 3P 180 cm, UK
1700000237	Power cord 3P 180 cm, JP
1700009652	Power cord 3P 180 cm, China
FWA-1013-RMK	Rackmount Kit for 1 PSU support
FWA-1013-150WPSU	150W power adapter
1700027334-01	USB for RJ45 console cable, 190cm
PCA-TPMSPI-00A1	TPM 2.0 Module, SPI
NMC-R014T-12A1	RF module
