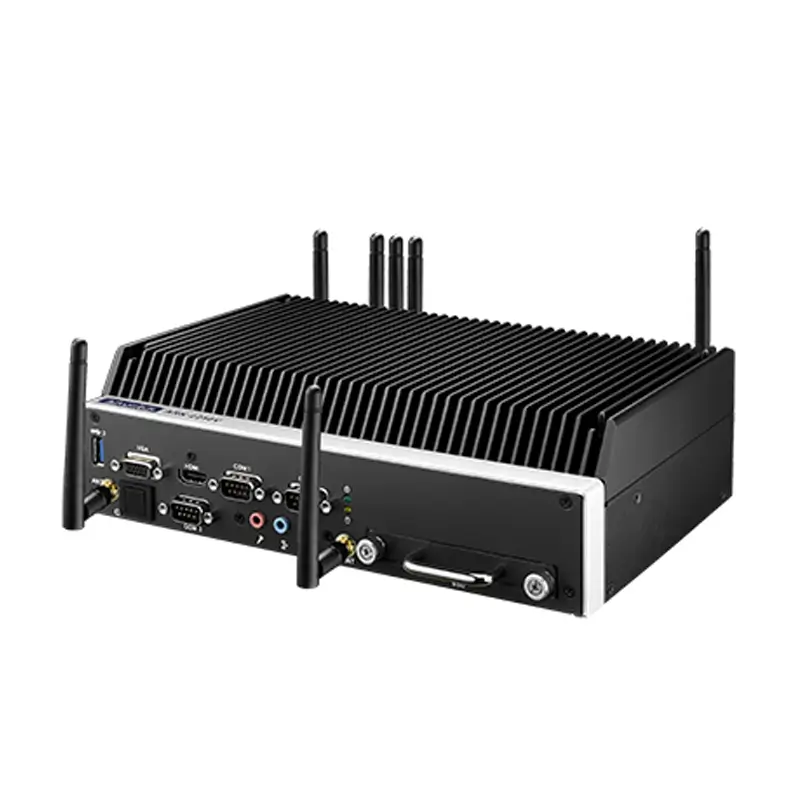

研华ARK-2250V 是一款无风扇嵌入式工控机，搭载第六代Intel Core i7-6822EQ QC/i5-6442EQ QC 车载无风扇系统，支持 TPM2.0，支持 12/24VDC 车载电源输入，需通过 E-Mark 认证。
需要帮助吗？请联系我们。
免费电话：400-880-8951
公司邮箱：advavee@outlook.com
咨询客服：一站式采购
批量采购定制咨询，请发送您的需求，我们将立即回复。
Specifications
| ARK-2250V-U0A1E | ARK-2250V-S9A1E | ||
|
Processor System |
CPU | Intel i7-6822EQ QC SoC | Intel i5-6442EQ QC SoC |
| Frequency | 2.0GHz | 1.9GHz | |
| Cache | 8 MB | 6 MB | |
| BIOS | AMI EFI | ||
|
Memory |
Technology | DDR4 2133MHz | |
| Max. Capacity | 32G | ||
| Socket | 2 x 260-pin SO-DIMM | ||
|
Graphics |
Chipset | QM170 | |
|
Graphic Engine |
DirectX 11.3, OGL 4.4, OCL 2.1 Encode: H.264, MPEG2/4, VC1, WMV9 Decode: H.264, MPEG2
EHVC: H.265 |
||
| VGA | Up to 1920 x 1200 @ 60Hz | ||
| HDMI | HDMI 1.4a for HD video playback, 1080P at 60Hz | ||
| Dual Display | VGA + HDMI (Std.) or Dual HDMI (by project) | ||
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | |
| LAN2 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan | ||
| Audio | Interface | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in | |
|
IO Interface |
Serial Ports | 3 x RS-232/422/485 port with auto flow control | |
| USB Interface | 3 x USB3.0 Type A | ||
| GPIO | 4 x DI & 4 x DO w/ 1.5KV isolation, Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel, On-state Voltage: 24 VDC nominal, open collector to 30 VDC | ||
| VDC Output | 12VDC/1.5A | ||
| Other | Watchdog timer | 255 levels timer interval, setup by software | |
| TPM | TPM2.0 (Infineon SLB9665) | ||
|
Expansion |
Mini PCIe |
#1, Full-size Mini PCIe(SATA/PCIe/USB) w/external SIM socket #2, Full-size Mini PCIe(PCIe/USB) w/external SIM socket
#3, M.2 2230 E key |
|
| GPS | 1x onboard GPS GNSS module | ||
| Storage | SSD/HDD | 1 x 2.5" SATA drive bay | |
| mSATA | 1 x full size mSATA socket (Mini PCIe #1) | ||
| Software Support | Microsoft Windows | Win7, WES7, Win10, Win10 IoT | |
| Linux | Support by project | ||
|
Power Requirement |
Power Type | ATX | |
| Power Input Voltage | 12/24VDC with E-Mark certification | ||
| Vehicle Power Ignition | Selectable boot-up & shut-down voltage, on/off delay time | ||
| Isolation | 1.5 KV | ||
| Power Consumption | Typical | 22W | |
| Max. | 45W | ||
|
Mechanical |
Construction | Aluminum housing | |
| Mounting | Wall mounting kit | ||
| Dimensions (W x H x D) | 260 x 73 x 160.2mm | ||
| Weight | 3.2 Kg | ||
|
Environment |
Operating Temperature | With extended temperature peripherals: -20 ~ 70° C with 0.7m/s air flow | |
| Storage Temperature | - 40 ~ 85 °C ( -40 ~ 185 °F) | ||
| Relative Humidity | 95% @ 40 °C (non-condensing) | ||
| Vibration During Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6 | ||
| Shock During Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6 | ||
| EMC | CE, FCC Class B, CCC, BSMI | ||
| Safety Certifications | UL, CCC, BSMI, CB, EMARK (No RED certification) | ||
Ordering Information
| Part No. | CPU | VGA | HDMI | GbE | USB 3.0 | DIO | RS-232/422/485 | Audio | 2.5" SATA
Drive Bay |
Operating Temp. |
| ARK-2250V-U0A1E | Intel Core i7-6822EQ QC | 1 | 1 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
| ARK-2250V-U0A1EPOE* | Intel Core i7-6822EQ QC | 1 | 1 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
| ARK-2250V-U0A2E | Intel Core i7-6822EQ QC | 0 | 2 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
| ARK-2250V-U0A2EPOE* | Intel Core i7-6822EQ QC | 0 | 2 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
| ARK-2250V-S9A1E | Intel Core i5-6442EQ QC | 1 | 1 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
| ARK-2250V-S9A1EPOE* | Intel Core i5-6442EQ QC | 1 | 1 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
| ARK-2250V-S9A2E | Intel Core i5-6442EQ QC | 0 | 2 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
| ARK-2250V-S9A2EPOE* | Intel Core i5-6442EQ QC | 0 | 2 | 2 | 3 | 4Di, 4Do | 3 | Lin-out, Line-in, MIC | 1 | -20 ~ 70 °C |
* : This P/N is for AMK-R100E / AMK-R101E / AMK-R104E / AMK-R105E application Note: Memory, storage and operating system bundled by request.
Packing List
| Part Number | Description |
| - | 1 x ARK-2250V Unit |
| 1960071555N011 | 2 x Wall Mounting Brackets |
| 1652001524 | 1 x Terminal Block 6P 5mm |
| 1652000177 | 1 x Terminal Block 5P 5mm |
| 1652000099 | 1 x Terminal Block 2P 5mm |
Optional Embedded OS
| Part Number | Description |
| 20706WX6HS0008 | Win10 IoT Ent LTSB 2016 MultiLang 64bit (ARK-2250V-U0A1E) |
| 20706WX9HS0025 | Win10 IoT Ent LTSC 2019 MultiLang 64bit (ARK-2250V-U0A1E) |
| 20706WX6VS0014 | Win10 IoT Ent LTSB 2016 MultiLang 64bit (ARK-2250V-S9A1E) |
| 20706WX9VS0028 | Win10 IoT Ent LTSC 2019 MultiLang 64bit (ARK-2250V-S9A1E) |
| 20706WE7ES0004 | WES7E 64bit ASIA 4 MUI |
Note: Default BIOS is for 64bit OS support only. 32bit OS will need to update BIOS
Optional Item for Default SKU
| Part Number | Description |
| 96PSA-A150W24T2 | AC-to-DC Adapter, DC24V/150W |
| 1702002600 | Power cable 3-pin 183cm, USA type |
| 1702002605 | Power cable 3-pin 183cm, EU type |
| 1702031801 | Power cable 3-pin 183cm, UK type |
