通用 |
认证 | CE, FCC, LVD, CCC |
| 尺寸 (W x D x H) | 200 x 140 x 42.6 (7.8" x 5.6" x 1.6") for single stack
200 x 140 x 72.6 (7.8" x 5.6" x 2.8") for single stack w/ expansion stack AIMC-300-EKAE version |
|
| 架构 | 标准尺寸设计，支持堆叠拓展 | |
| 机箱 | 铝合金外壳 | |
| 安装 | 支架, 壁挂 | |
| 重量 (Net) | 单层: 1.4kg (3.09lbs) | |
| 电源 | 10 - 36 VDC | |
| 功耗 | 30.2W (Typical), 85W (Max) | |
| OS | Win10 LTSC, Win11 LTSC, Ubuntu 20.04; 22.04 | |
| 软件 | WISE-Edge365 | |
|
系统硬件 |
BIOS | AMI 256 Mbit SPI |
| 看门狗定时器 | 可设置 255级定时间隔，范围为1至255秒 | |
| 硬件安全 | TPM2.0 | |
|
处理器 |
11th Gen Intel Core
Core™ i3-1115G4 3.0GHz Core™ i5-1135G7 2.4GHz Core™ i7-1195G7 2.9GHz |
|
| 内存 | 双通道DDR4 DDR4 3200 MHz, 最大支持64GB (2 slots)
*如需扩展内存容量，请务必为 CPU /内存选用导热垫。 |
|
| 图像 | Intel® Iris® Xe Graphics | |
| 以太网 | LAN 1: Intel i219-LM 1Gb/s, IEEE 802.3, 802.1as/1588
LAN 2-4: Intel® i226-LM 2.5Gb/s, IEEE 802.3, 802.1as/1588 |
|
| LED | 电源LEDs, HDD, LAN (运行状态), RTC电池电量低 | |
|
扩展/存储 |
1 x M.2 B key slot (USB Signal for 3042/3052 LTE/5G/LTE module, SATA signal for storage) 1 x 2.5" SSD SATA drive bay
*Support RAID0/RAID1 with 2.5" SSD and M.2 B key 2242 SSD. 1 x M.2 M key (PCIex4) supports 2280 NVME SSD 1 x mPCIe slot (PCIe, USB2.0 signal) |
|
I/O 接口 |

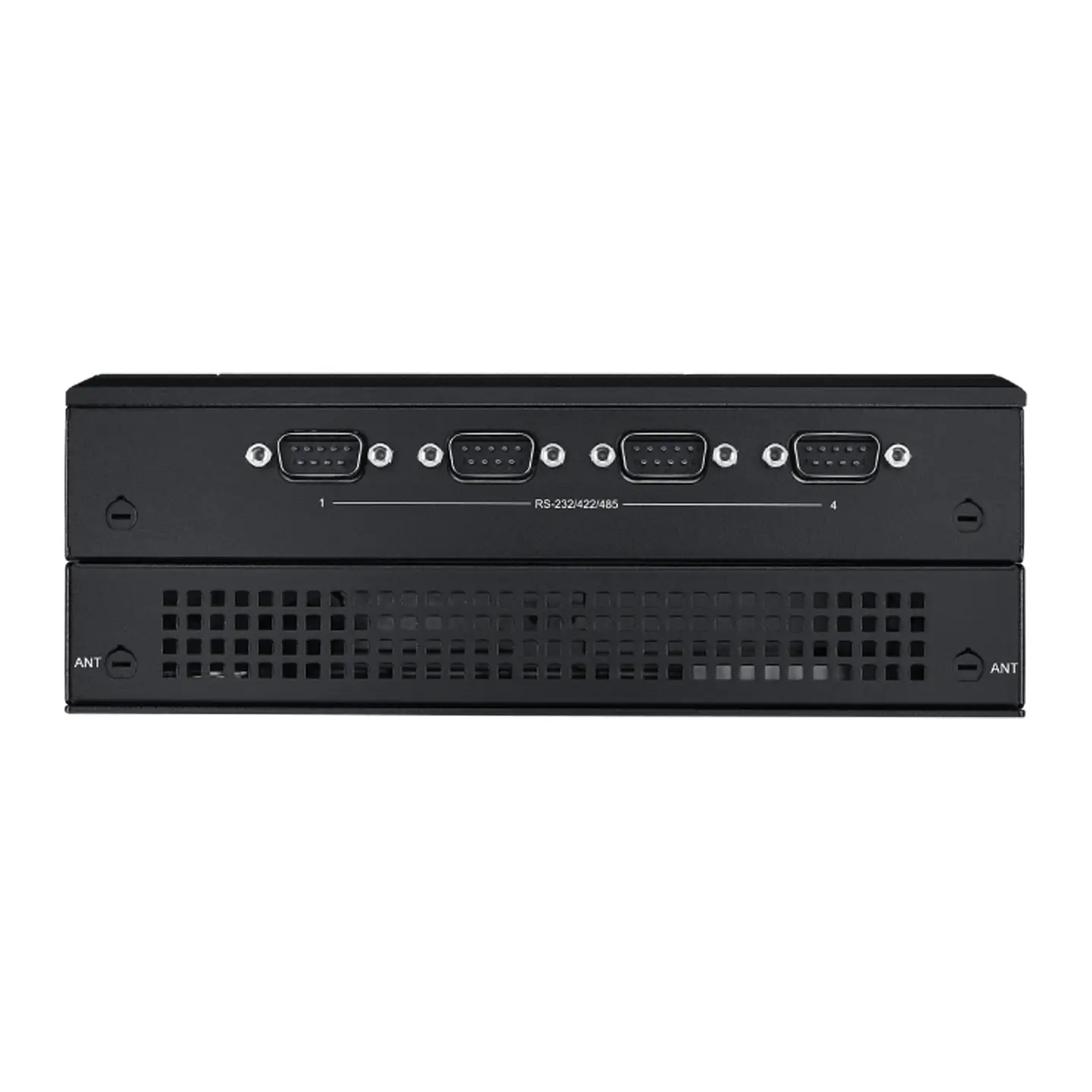

串口 | 4 x RS 232/422/485, 50-115.2 kbps speed |

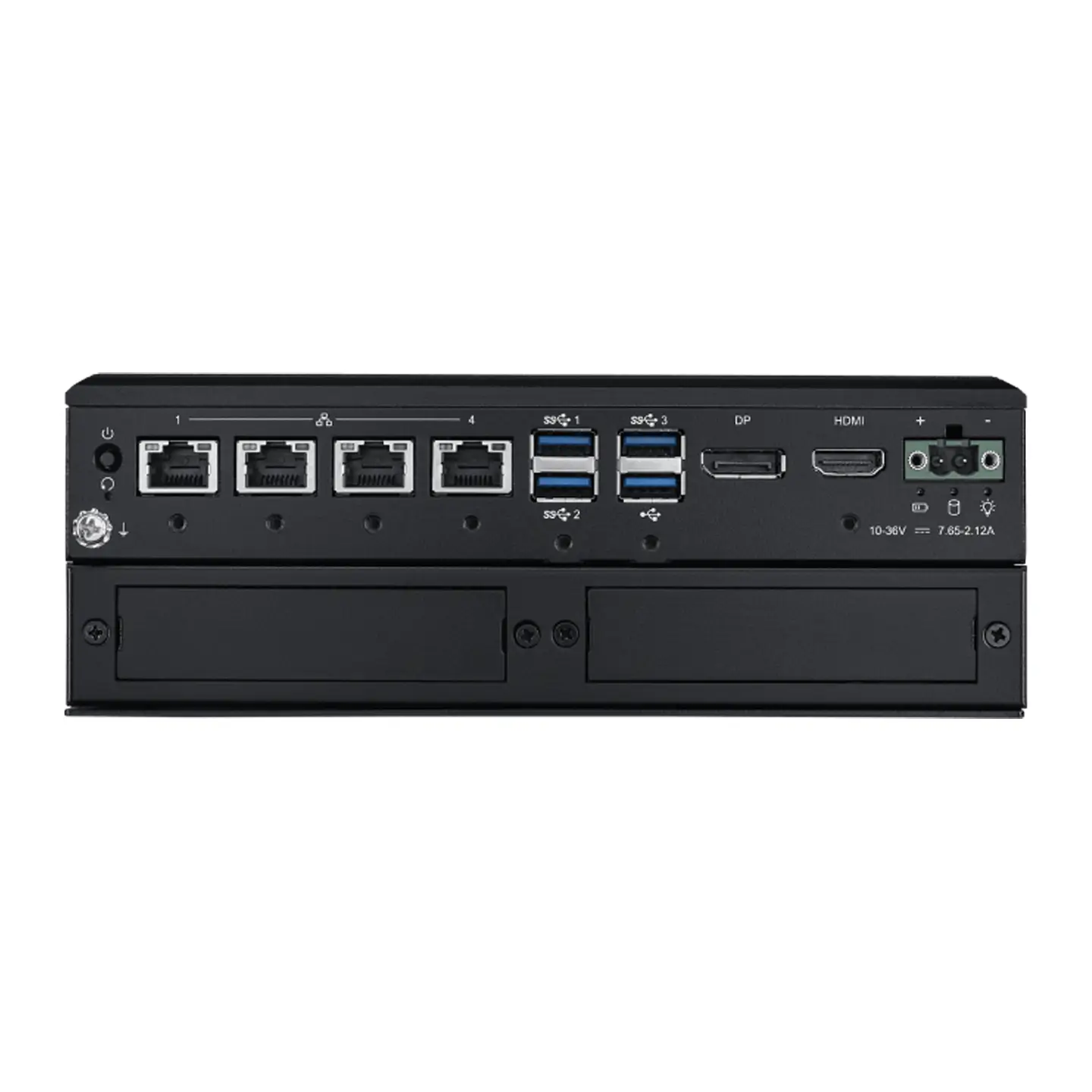

| LAN Ports | 1 x RJ45, 10/100/1000 Mbps
3 x RJ45, 10/100/1000/2500 Mbps |
|
| USB Ports | 3 x USB 3.2 Gen2, 1 x USB2.0 | |
| 显示 | 1 x HDMI 1.4 (3840x2160@30Hz)
1 x DP 1.4a (4096x2304@60Hz) |
|
| USB Type-C | 1 x USB3.2 Gen2, support DP1.4a Alt. mode | |
| 电源连接器 | 1 x 2 pins,接线端子 | |
|
环境 |
运行温度 | -20 ~ 60°C (-4 ~ 140°F) with 0.7 m/s airflow |
| 存储温度 | -40 ~ 85°C (-40 ~ 185°F) | |
| 相对湿度 | 运行时, 95% RH @ 40°C, 非冷凝
非运行, 95% RH @ 60°C, non-condensing |
|
| 抗冲击保护 | 运行时, IEC 60068-2-27, 50G, half sine, 11 ms | |
| 抗振动保护 | 运行时, IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA) | |
| 防护等级 | IP40 |
| Ordering P/N | CPU | M.2 | mPCIe slot | iDoor | USB | COM | LAN | Antenna hole |
| AIMC-300-30A1 | i3-1115G4 |
M key *1 B key *1 |
1 |
2 (with 2nd stack AIMC-300-EKAE) 4 4 |
4 |
4 (Base unit) |
||
| AIMC-300-50A1 | i5-1135G7 | |||||||
| AIMC-300-70A1 | i7-1195G7 | |||||||
| 料号 | 描述 |
| PCM-2300MR-BE | MRAM, 4 MB, mPCIe |
| PCM-23U1DG-CE | USB slot w/ lock for USB dongle, half-size mPCIe |
| PCM-24D2R2-BE | 2-Port Isolated RS-232, mPCIe, DB9 |
| PCM-24D2R4-BE | 2-Port Isolated RS-422/485, mPCIe, DB9 |
| PCM-24D4R2-BE | 4-Port Non-Isolated RS-232, mPCIe, DB37 |
| PCM-24D4R4-BE | 4-Port Non-Isolated RS-422/485, mPCIe, DB37 |
| PCM-24R1TP-BE | 1-Port Gigabit Ethernet, mPCIe, RJ45 |
| PCM-24R2GL-AE | 2-Port Gigabit Ethernet, mPCIe, RJ45 |
| PCM-24S2WF-CE | WIFI 802.11 a/b/g/n/ac 2T2R w/BT4.1, Intel AC9260 |
| PCM-24U2U3-BE | 2-Port USB 3.0, mPCIe |
| PCM-26D2CA-BE | 2-Port CANBus, mPCIe, DB9 x 2 (PCIe Type) |
| PCM-26D2CA-CE | 2-Port CANBus, mPCIe, DB9 x 2 (USB Type) |
| PCM-27D24DI-AE | 24-Channel Isolated Digital I/O w/ counter, mPCIe, DB37 |
| 料号 | 描述 |
| 96PSA-A120W24T2-4 | Power Adapter 120W |
| 1702002600 | Power Cable US Plug 1.8 M (Industrial Grade) |
| 1702002605 | Power Cable EU Plug 1.8 M (Industrial Grade) |
| 1702031801-11 | Power Cable UK Plug 1.8 M (Industrial Grade) |
| 1700000596-11 | Power Cable China/Australia Plug 1.8 M (Industrial Grade) |
| 1700033574-01 | F cable 2x10P-2.0x2/IDE#2 16P-2.54 17CM |
| 98R1U248400 | Thermal kit for 2nd stack M key(2280) |
| 98R1U248410 | Thermal kit for 2nd stack B key(3052) |
| 98R1C300000 | Thermal kit for AIMC-300 M.2 M key (single stack) |
| 98R1C300001 | Thermal kit for AIMC-300 M.2 B key (single stack) |
