照明输出 (PWM)
| 通道 | 4, with default 2-pin output connector* |
| 照明方式 | Strobe (configurable duration) or on/off mode |
| PWM高电平时间 | 10 us ~ 105 ms** |
| PWM低电平时间 | 10 us ~ 105 ms** |
| 负载电压 | Internal power: 12VDC External Power: 12~24VDC, follows the external powersource |
| 负载电流 | Bus powered: 1A max. for each channel, total 4A max.External power: 2A max. for each channel, total 4A max. |
| 隔离保护 | 2,500 VDC |
| 触发源 | Corresponded trigger channel |
| 通道 | 4 |
| 输入电压 | Logic 0: 3 V max.Logic 1: 10 V min. (30 V max.) |
| 数字滤波器 | 16μs~131 ms |
| 响应时间 | 15 μs |
| 通道 | 12 |
| 输入电压 | Logic 0: 2 V max.Logic 1: 5 V min. (24 V max.）(Wet contact supported only) |
| 隔离保护 | 2,500 VDC |
| 响应时间 | 100 μs max. |
| 通道 | 16 |
| 输出类型 | Sink (NPN) or Source (PNP) selectable by software |
| 负载电压 | 5 ~ 40 VDC |
| 负载电流 | 350 mA max. for each channel |
| 隔离保护 | 2,500 VDC |
| 响应时间 |
|

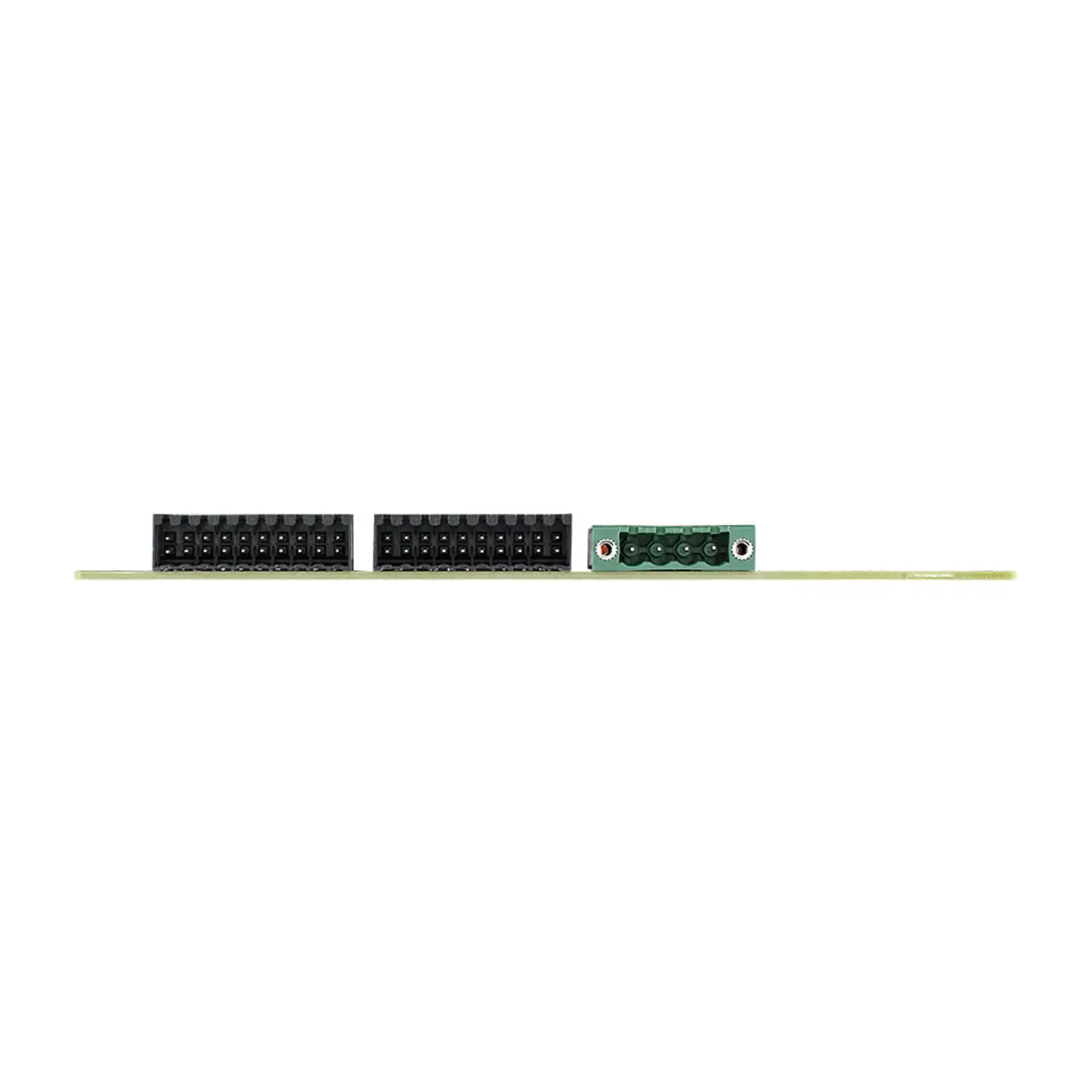

| I/O连接器 | 2 x 20-pin connector for DIO and trigger4 x 2-pin pin header for PWM lighting control(refer to user manual for pin assignment)1x 4-pin connector for external power input |
| 尺寸（长× 宽） | 175 x 101 mm (6.89" x 98") |
| 工作温度 | 0 ~ 60°C (32 ~ 140°F) |
| 存储温度 | -40 ~ 70°C (-40 ~ 158°F) |
| 存储湿度 | 5 ~ 95% RH (non-condensing) |
| AIIS-1882-AE | 4-ch PWM Lighting Control for AIIS Vision System |
| PSD-A40W12 | DIN Rail AC to DC 100-240V 40W 12V |
| PSD-A40W12 | DIN Rail AC to DC 100-240V 40W 24V |
| 98R318820000 | 3-pin lighting accessory for AIIS-1882 |
| AIIS-3411P-00A1 | Compact vision system with 4-ch PoE camera interface |
| AIIS-3411U-00A1 | Compact vision system with 4-ch USB camera interface |
